Parts Diagrams |

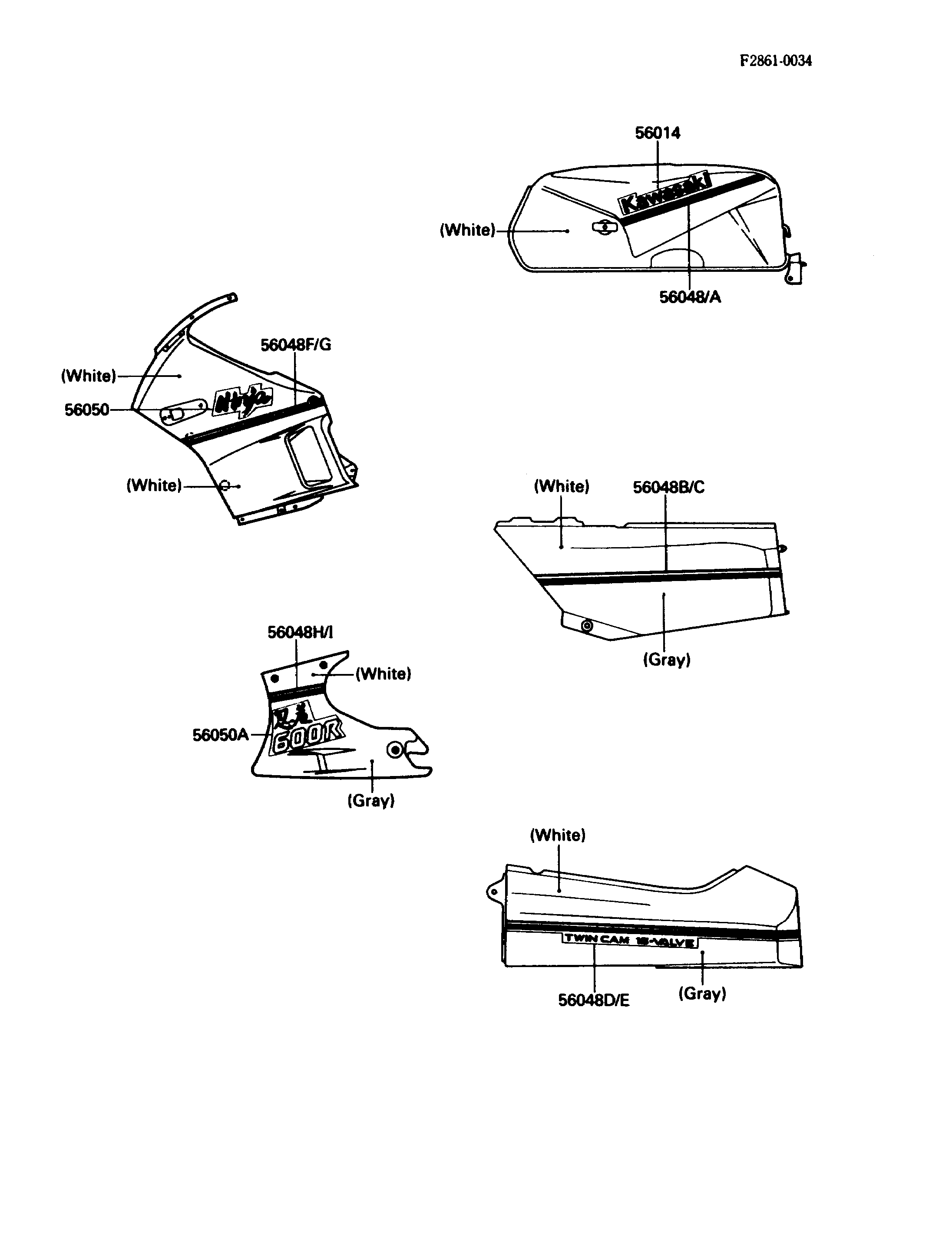

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1208 | 2 | CAUS | |
| PATTERN,FUEL TANK,LH | 56048 | 56048-1029 | 1 | CAUS | |
| PATTERN,FUEL TANK,RH | 56048A | 56048-1030 | 1 | CAUS | |
| PATTERN,SIDE COVER,LH | 56048B | 56048-1399 | 1 | CAUS | |
| PATTERN,SIDE COVER,RH | 56048C | 56048-1400 | 1 | CAUS | |
| PATTERN,SEAT COVER,LH | 56048D | 56048-1401 | 1 | CAUS | |
| PATTERN,SEAT COVER,RH | 56048E | 56048-1402 | 1 | CAUS | |
| PATTERN,UPP COWLING,LH | 56048F | 56048-1403 | 1 | CAUS | |
| PATTERN,UPP COWLING,RH | 56048G | 56048-1404 | 1 | CAUS | |
| PATTERN,LWR COWLING,LH | 56048H | 56048-1405 | 1 | CAUS | |
| PATTERN,LWR COWLING,RH | 56048I | 56048-1406 | 1 | CAUS | |
| MARK,NINJA | 56050 | 56050-1161 | 2 | CAUS | |
| MARK,NINJA/600R | 56050A | 56050-1162 | 2 | CAUS |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56048G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56048H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56048I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
| MARK,NINJA/600R | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CAUS |
| REMARKS | |
