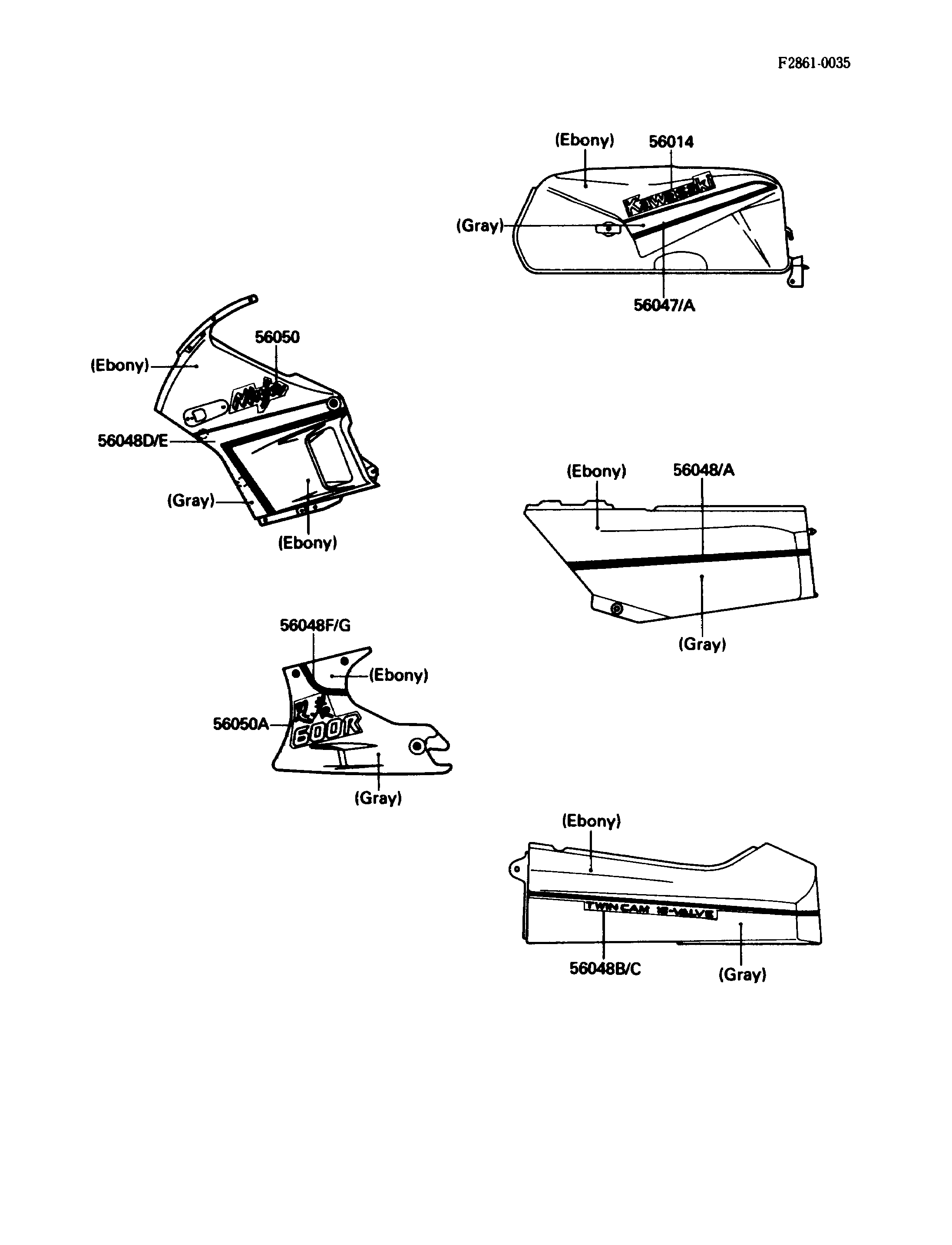

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1231 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047 | 56047-1797 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1798 | 1 | ||
| PATTERN,SIDE COVER,LH | 56048 | 56048-1407 | 1 | ||
| PATTERN,SIDE COVER,RH | 56048A | 56048-1408 | 1 | ||
| PATTERN,SEAT COVER,LH | 56048B | 56048-1409 | 1 | ||
| PATTERN,SEAT COVER,RH | 56048C | 56048-1410 | 1 | ||
| PATTERN,UPP COWLING,LH | 56048D | 56048-1411 | 1 | ||
| PATTERN,UPP COWLING,RH | 56048E | 56048-1412 | 1 | ||
| PATTERN,LWR COWLING,LH | 56048F | 56048-1413 | 1 | ||
| PATTERN,LWR COWLING,RH | 56048G | 56048-1414 | 1 | ||
| MARK,NINJA | 56050 | 56050-1163 | 2 | ||
| MARK,NINJA/600R | 56050A | 56050-1164 | 2 |
