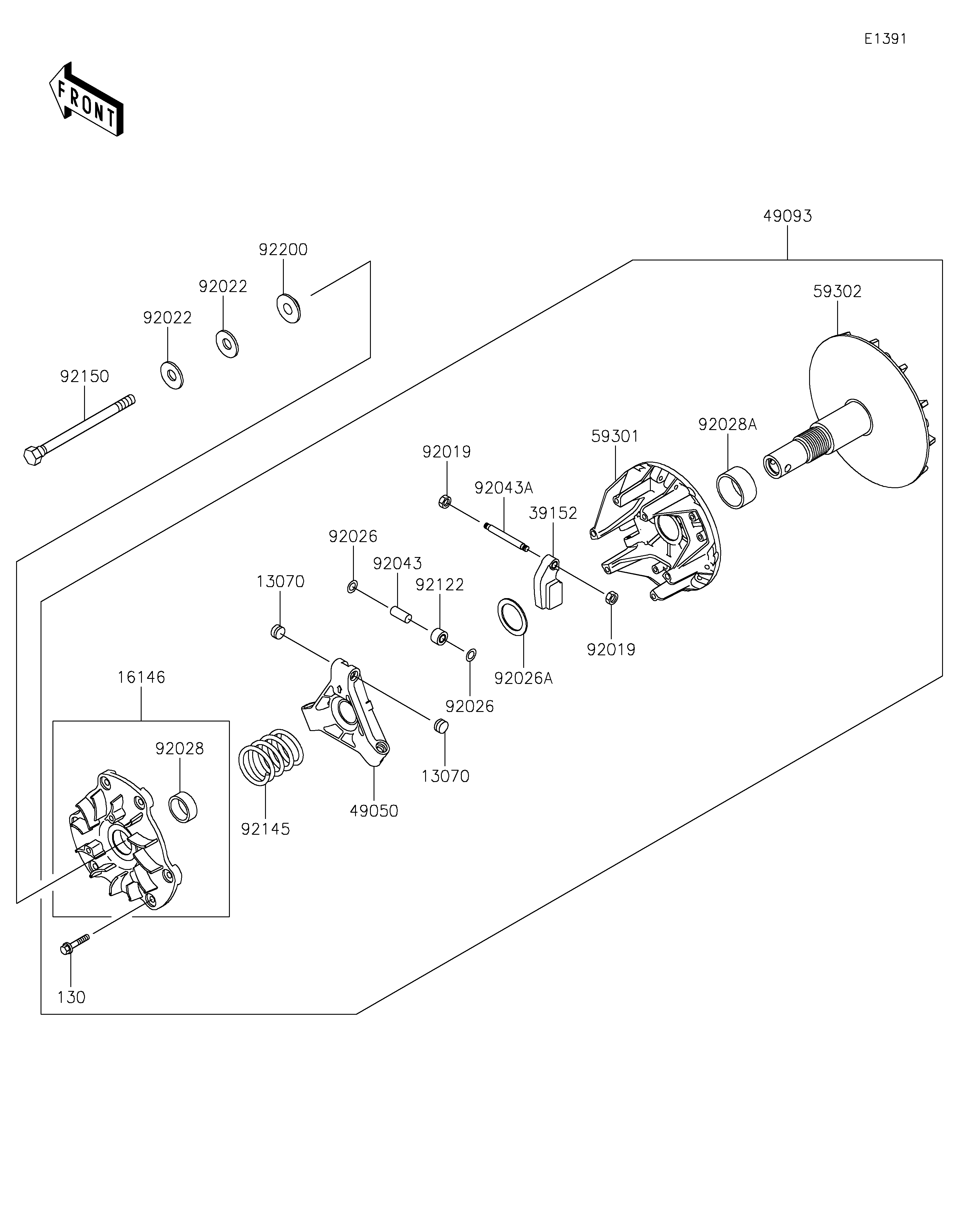

2025 MULE™ 4010 TRANS4x4® - Drive Converter
13070
13070
16146
39152
49050
49093
59301
59302
92019
92019
92022
92022
92026
92026
92026A
92028
92028A
92043
92043A
92122
92145
92150
92200
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE | 13070 | 13070-1330 | 6 | ||
| COVER-ASSY | 16146 | 16146-1219 | 1 | ||
| WEIGHT-RAMP | 39152 | 39152-1078 | 3 | ||
| SPIDER | 49050 | 49050-0018 | 1 | ||
| CONVERTER-ASSY-DRIVE | 49093 | 49093-0025 | 1 | ||
| SHEAVE-MOVABLE | 59301 | 59301-0016 | 1 | ||
| SHEAVE-COMP | 59302 | 59302-1085 | 1 | ||
| NUT,LOCK,6MM | 92019 | 92019-008 | 6 | ||
| WASHER,SPECIAL CONICAL | 92022 | 92022-1901 | 2 | ||
| SPACER | 92026 | 92026-1512 | 6 | ||
| SPACER,32.3X44.3X3.6 | 92026A | 92026-1591 | 1 | ||
| BUSHING | 92028 | 92028-1861 | 1 | ||
| BUSHING | 92028A | 92028-1864 | 1 | ||
| PIN | 92043 | 92043-1572 | 3 | ||
| PIN | 92043A | 92043-1573 | 3 | ||
| ROLLER | 92122 | 92122-1204 | 3 | ||
| SPRING,YELLOW PAINT | 92145 | 92145-0639 | 1 | ||
| BOLT,12X163.5 | 92150 | 92150-1008 | 1 | ||
| WASHER | 92200 | 92200-1401 | 1 | ||
| BOLT-FLANGED,6X30 | 130 | 130CA0630 | 6 |
| GUIDE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY | |
| REF # | 16146 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WEIGHT-RAMP | |
| REF # | 39152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPIDER | |
| REF # | 49050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONVERTER-ASSY-DRIVE | |
| REF # | 49093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-MOVABLE | |
| REF # | 59301 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-COMP | |
| REF # | 59302 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,6MM | |
| REF # | 92019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPECIAL CONICAL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SPACER,32.3X44.3X3.6 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,YELLOW PAINT | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X163.5 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
