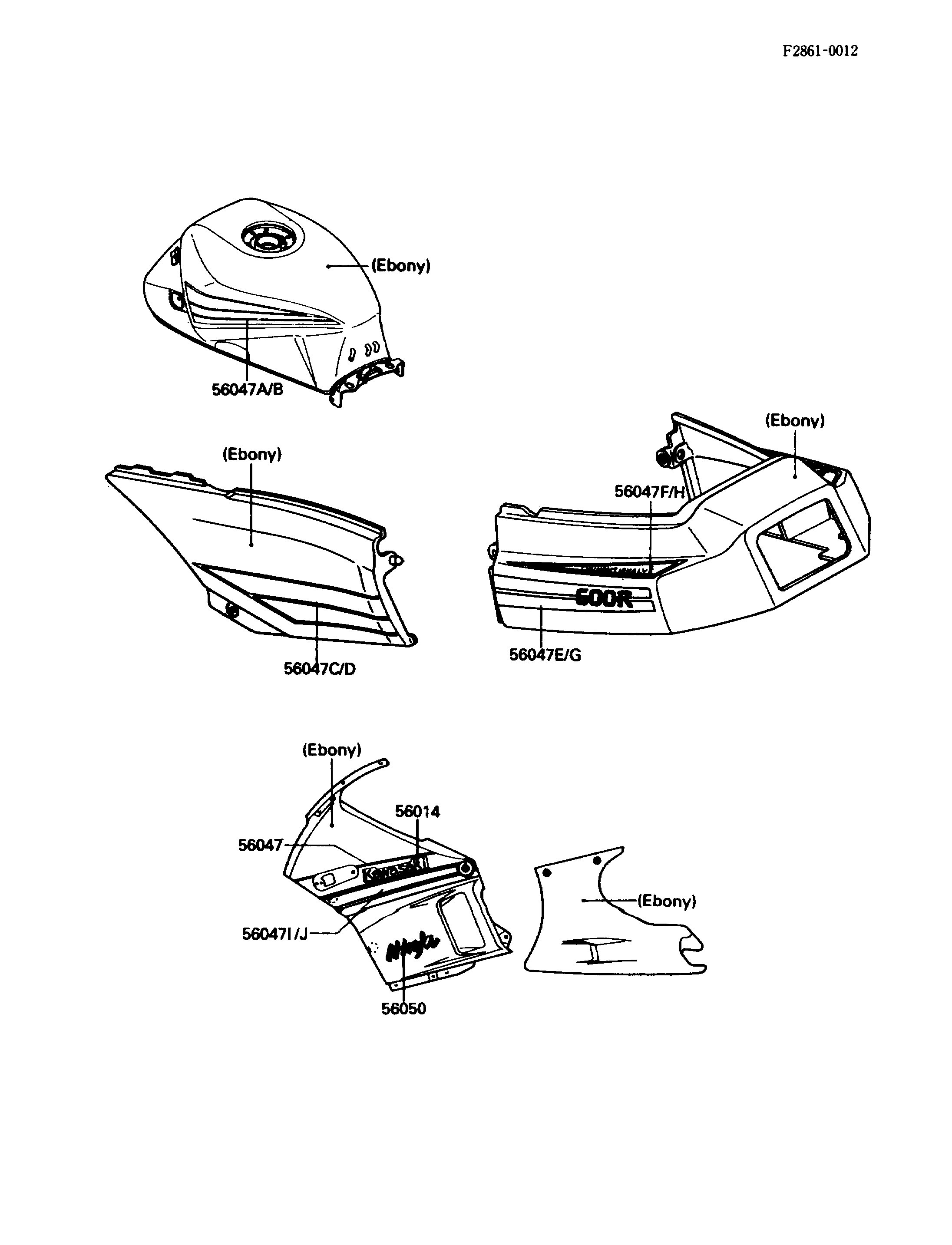

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,KAWASAKI | 56014 | 56014-1156 | 2 | ||
| PATTERN,UPP COWLING,UPP | 56047 | 56047-1541 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047A | 56047-1641 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047B | 56047-1642 | 1 | ||
| PATTERN,SIDE COVER,LH | 56047C | 56047-1643 | 1 | ||
| PATTERN,SIDE COVER,RH | 56047D | 56047-1644 | 1 | ||
| PATTERN,SEAT COVER,LH,SIDE | 56047E | 56047-1645 | 1 | ||
| PATTERN,SEAT COVER,LH,TOP | 56047F | 56047-1646 | 1 | ||
| PATTERN,SEAT COVER,RH,SIDE | 56047G | 56047-1647 | 1 | ||
| PATTERN,SEAT COVER,RH,TOP | 56047H | 56047-1648 | 1 | ||
| PATTERN,UPP COWLING,LH,LWR | 56047I | 56047-1649 | 1 | ||
| PATTERN,UPP COWLING,RH,LWR | 56047J | 56047-1650 | 1 | ||
| MARK,NINJA | 56050 | 56050-1024 | 2 |
