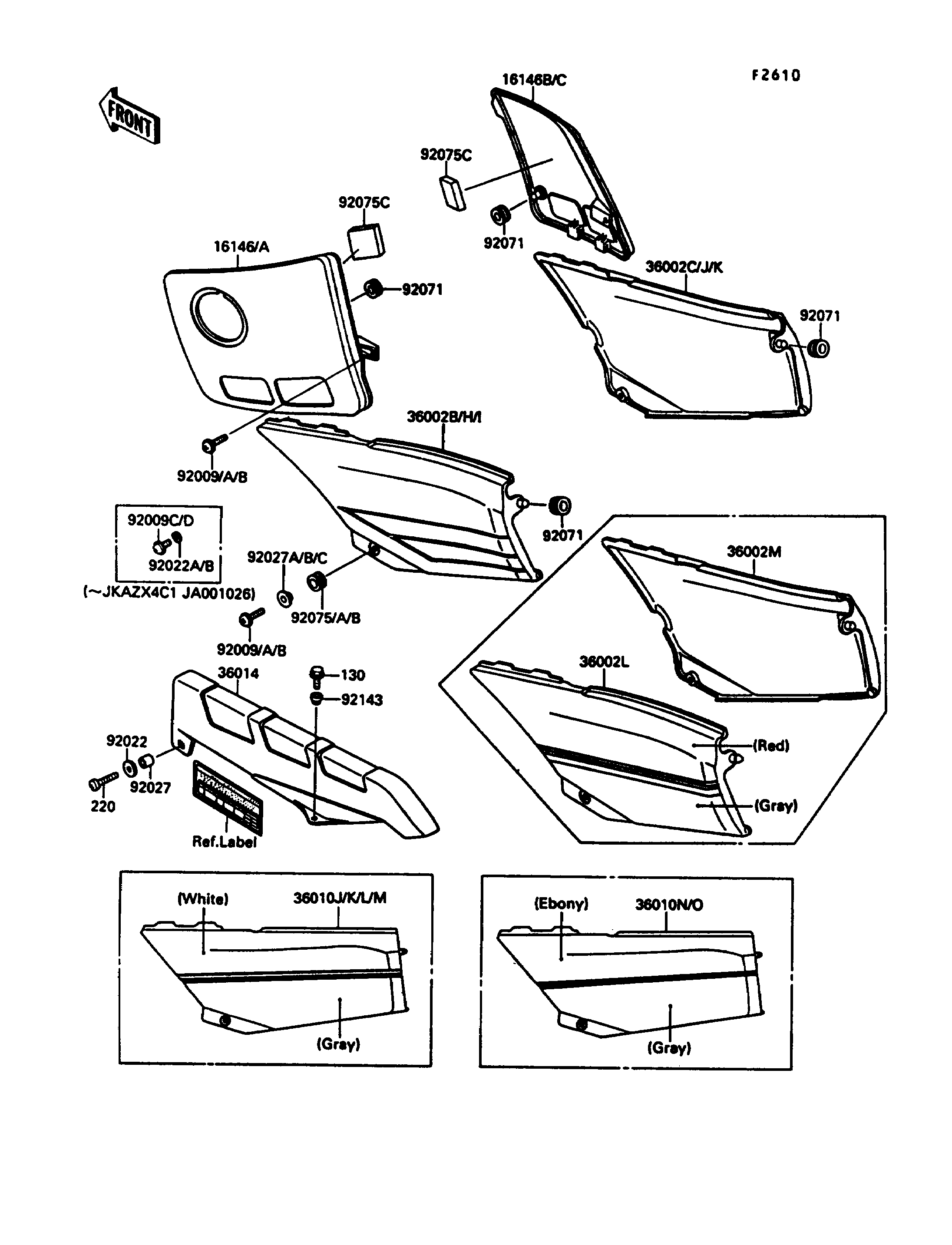

1988 NINJA® 600R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-ASSY,KNEEGRIP,LH,BLACK 16146A 16146-1079-NL 1
COVER-ASSY,KNEEGRIP,RH,BLACK 16146C 16146-1080-NL 1
COVER-SIDE,LH,EBONY 36002B 36002-5417-H8 1 CAUS
COVER-SIDE,RH,EBONY 36002C 36002-5418-H8 1 CAUS
COVER-SIDE,LH,EBONY 36002H 36002-5441-H8 1 CN (JKAZX4C1 JA001027 - )
COVER-SIDE,LH,EBONY 36002I 36002-5441-H8 1 CAUS
COVER-SIDE,RH,EBONY 36002J 36002-5442-H8 1 CN (JKAZX4C1 JA001027 - )
COVER-SIDE,RH,EBONY 36002K 36002-5442-H8 1 CAUS
COVER-SIDE,LH,RED/GRAYSTONE 36002L 36002-5447-CF 1
COVER-SIDE,RH,RED/GRAYSTONE 36002M 36002-5448-CF 1
CASE-CHAIN 36014 36014-1145 1
SCREW,6X18,BLACK 92009 92009-1181 4 CN (JKAZX4C1 JA001027 - )
SCREW,6X18,BLACK 92009A 92009-1181 2 CAUS (JKAZX4C1 JA001027 - )
SCREW,6X18,BLACK 92009B 92009-1181 2 CAUS
SCREW,6X14 92009C 92009-1288 2 CAUS ( - JKAZX4C1 JA001026)
SCREW,6X14 92009D 92009-1288 2 CAUS
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 1
WASHER,6.5X16X1.0 92022A 92022-1654 1 CAUS ( - JKAZX4C1 JA001026)
WASHER,6.5X16X1.0 92022B 92022-1654 1 CAUS
COLLAR,6.8X10X16 92027 92027-169 1
COLLAR,L=9.1,BLACK 92027A 92027-1935 2 CN (JKAZX4C1 JA001027 - )
COLLAR,L=9.1,BLACK 92027B 92027-1935 1 CAUS (JKAZX4C1 JA001027 - )
COLLAR,L=9.1,BLACK 92027C 92027-1935 1 CAUS
GROMMET 92071 92071-056 4
DAMPER 92075 92075-1634 2 CN (JKAZX4C1 JA001027 - )
DAMPER 92075A 92075-1634 1 CAUS (JKAZX4C1 JA001027 - )
DAMPER 92075B 92075-1634 1 CAUS
DAMPER,50X50X10 92075C 92075-1979 2
COLLAR,L=6.6 92143 92143-1088 1
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROS,6X30,BLACK 220 220C0630 1
