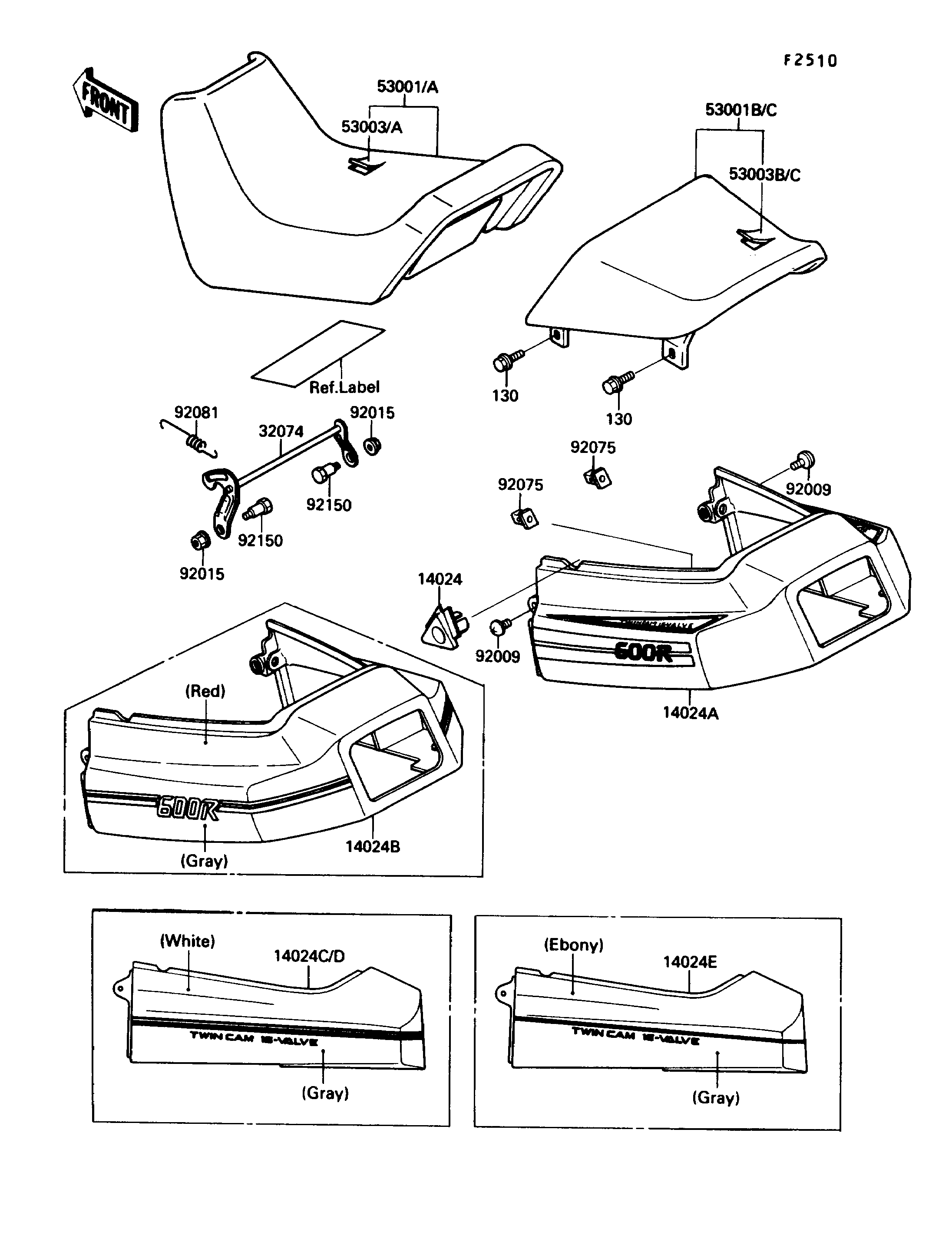

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT LOCK | 14024 | 14024-1456 | 1 | ||
| COVER,SEAT,EBONY | 14024A | 14024-5043-H8 | 1 | ||
| COVER,SEAT,RED/GRAYSTONE | 14024B | 14024-5055-CF | 1 | ||
| BRACKET-LOCK,SEAT | 32074 | 32074-1132 | 1 | ||
| SEAT-ASSY,FR,BLACK | 53001A | 53001-1503-ND | 1 | ||
| SEAT-ASSY,RR,BLACK | 53001C | 53001-1504-N3 | 1 | ||
| LEATHER,FRONT SEAT,BLACK | 53003A | 53003-1181-ND | 1 | ||
| LEATHER,REAR SEAT,BLACK | 53003C | 53003-1182-N3 | 1 | ||
| SCREW,6X22,BLACK | 92009 | 92009-1256 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
| DAMPER,SEAT COVER | 92075 | 92075-1931 | 2 | ||
| SPRING,SEAT LOCK | 92081 | 92081-1581 | 1 | ||
| BOLT,6MM | 92150 | 92002-1932 | 2 | ||
| BOLT-FLANGED | 130 | 130B0614 | 4 |
