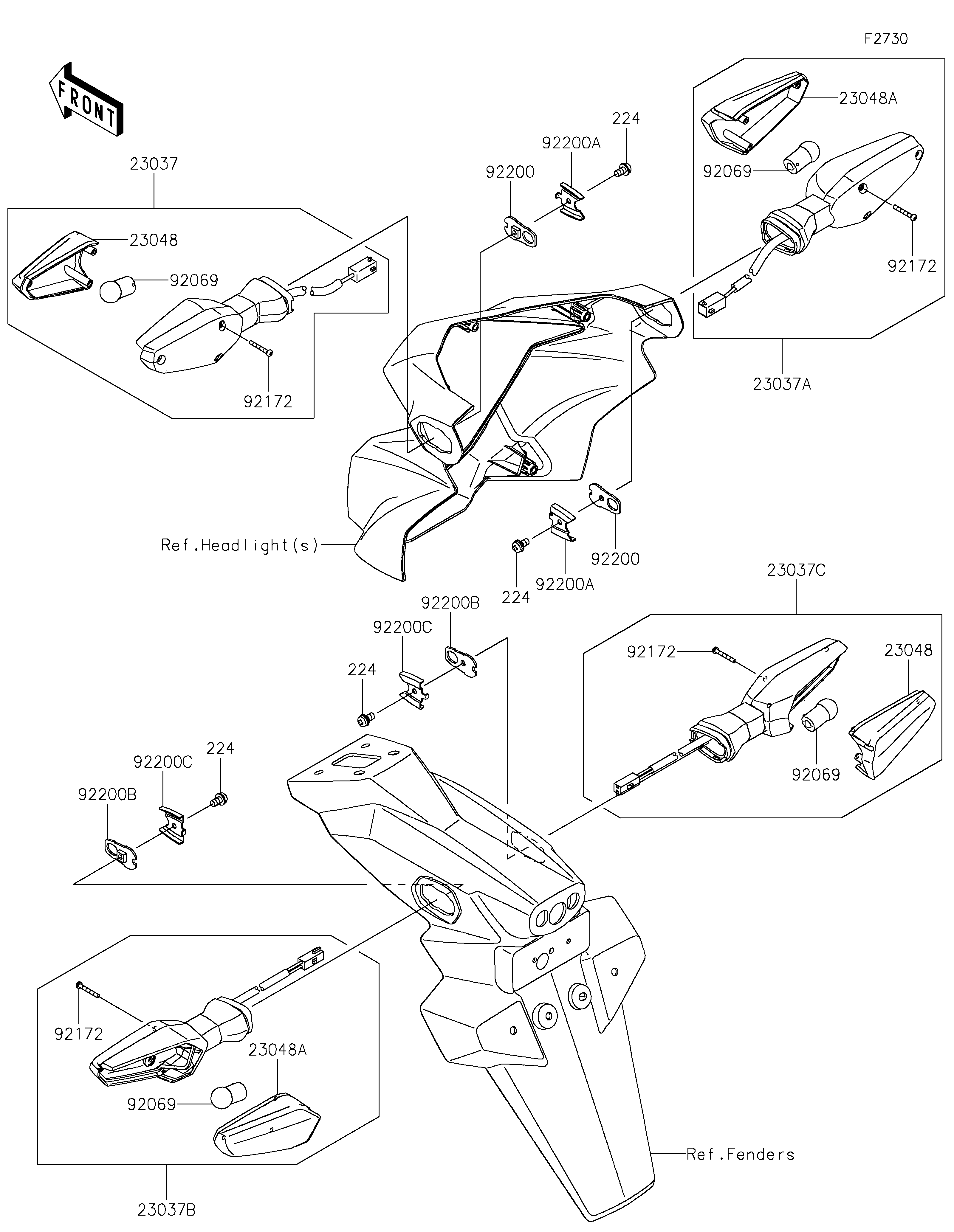

Parts Diagrams |
23037
23037A
23037B
23037C
23048
23048
23048A
23048A
92069
92069
92069
92069
92172
92172
92172
92172
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
224
224
224
224
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0326 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0327 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0328 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0329 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-0029 | 2 | ||
| LENS-SIGNAL LAMP | 23048A | 23048-0030 | 2 | ||
| BULB,12V 10W (RY10W) | 92069 | 92069-0115 | 4 | ||
| SCREW,6X19 | 92172 | 92172-1116 | 12 | ||
| WASHER,SIGNAL LAMP | 92200 | 92200-0164 | 2 | ||
| WASHER,SIGNAL LAMP | 92200A | 92200-0165 | 2 | ||
| WASHER,NUT 4MM | 92200B | 92200-0854 | 2 | ||
| WASHER | 92200C | 92200-0855 | 2 | ||
| SCREW-PAN-WP-CROS,4X8 | 224 | 224AB0408 | 4 |
