Parts Diagrams |

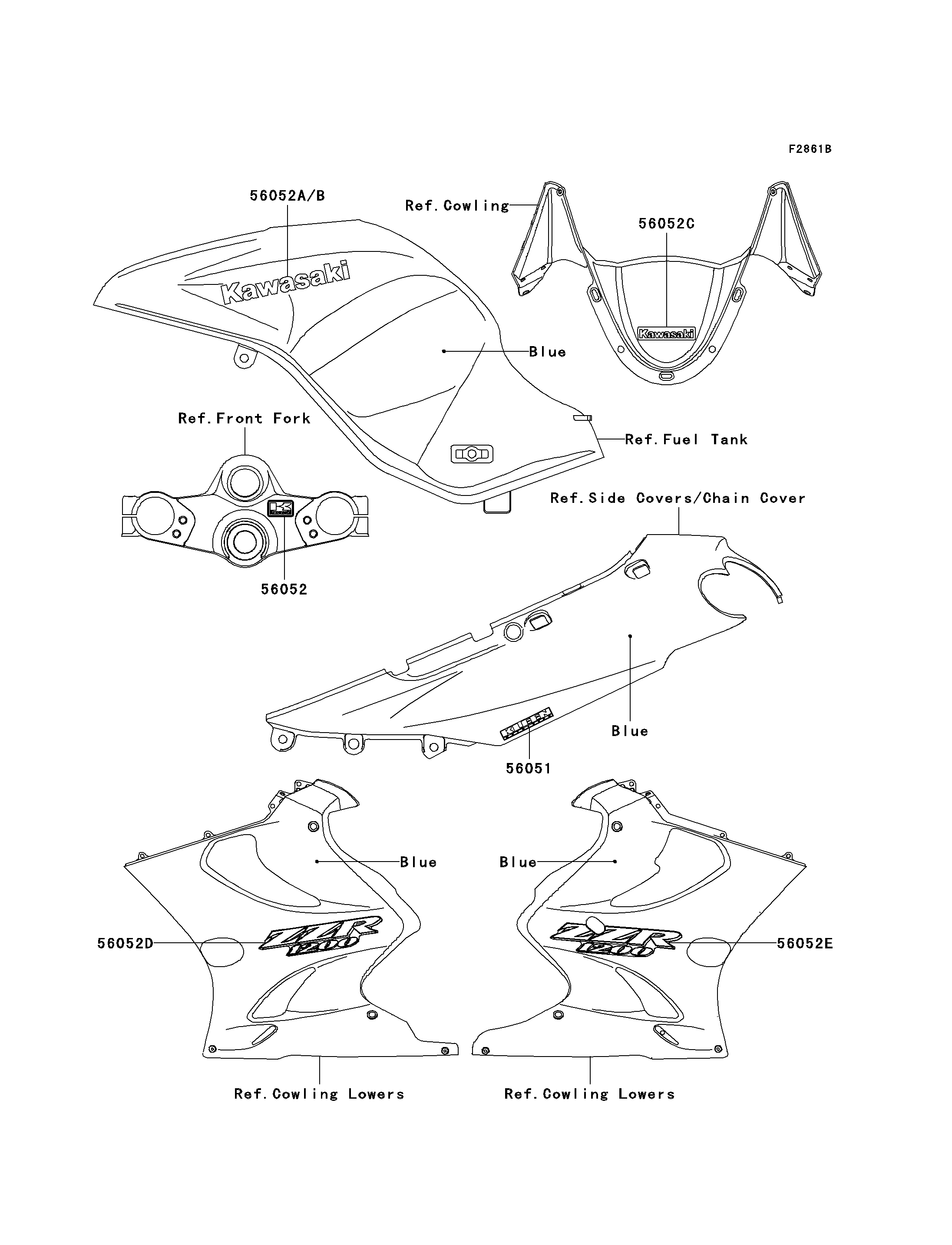

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KLEEN | 56051 | 56051-1801 | 2 | CN | |
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | CN | |
| MARK,FUEL TANK,LH,KAWASAKI | 56052A | 56052-1667 | 1 | CN | |
| MARK,FUEL TANK,RH,KAWASAKI | 56052B | 56052-1668 | 1 | CN | |
| MARK,FRONT,KAWASAKI | 56052C | 56052-1726 | 1 | CN | |
| MARK,LWR COWLING,LH,ZZR1200 | 56052D | 56052-1881 | 1 | CN | |
| MARK,LWR COWLING,RH,ZZR1200 | 56052E | 56052-1882 | 1 | CN |
| MARK,KLEEN | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,LH,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FRONT,KAWASAKI | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,LH,ZZR1200 | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,RH,ZZR1200 | |
| REF # | 56052E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
