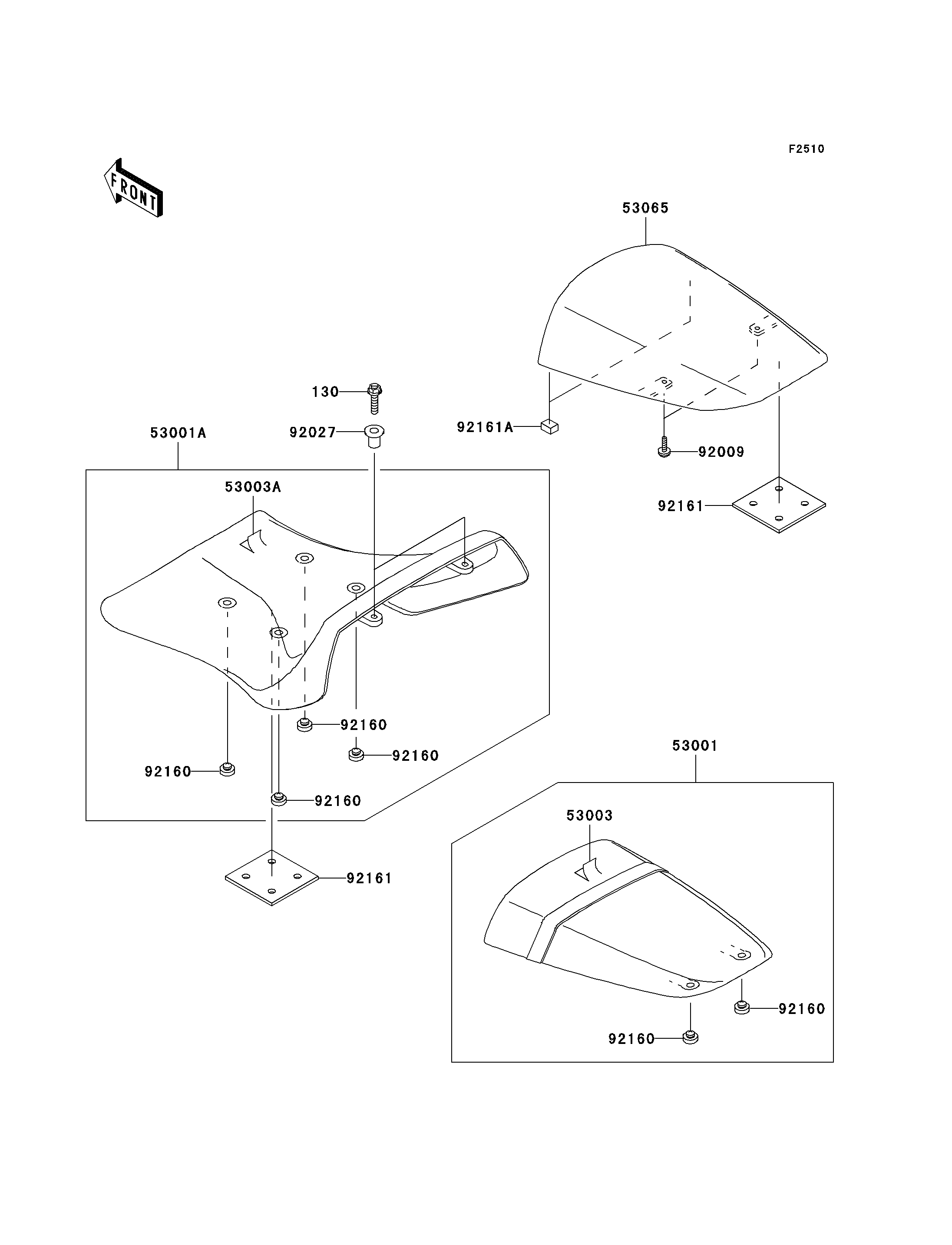

2006 Ninja® ZX™-12R (European) - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
53001
53001A
53003
53003A
53065
92009
92027
92160
92160
92160
92160
92160
92160
92161
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 2
SEAT-ASSY,RR,W/BAND,BLACK 53001 53001-1959-MA 1
SEAT-ASSY,FR,BLACK 53001A 53001-1993-MA 1
LEATHER,REAR SEAT,BLACK 53003 53003-1445-MA 1
LEATHER,FRONT SEAT,BLACK 53003A 53003-1502-MA 1
COVER SEAT,P.M.BLACK 53065 53065-1051-218 1
SCREW,5X16 92009 92009-1909 2
COLLAR,L=12 92027 92027-1062 2
DAMPER,SEAT 92160 92160-1455 6
DAMPER 92161 92161-1149 2
DAMPER 92161A 92161-1164 2
