Parts Diagrams |

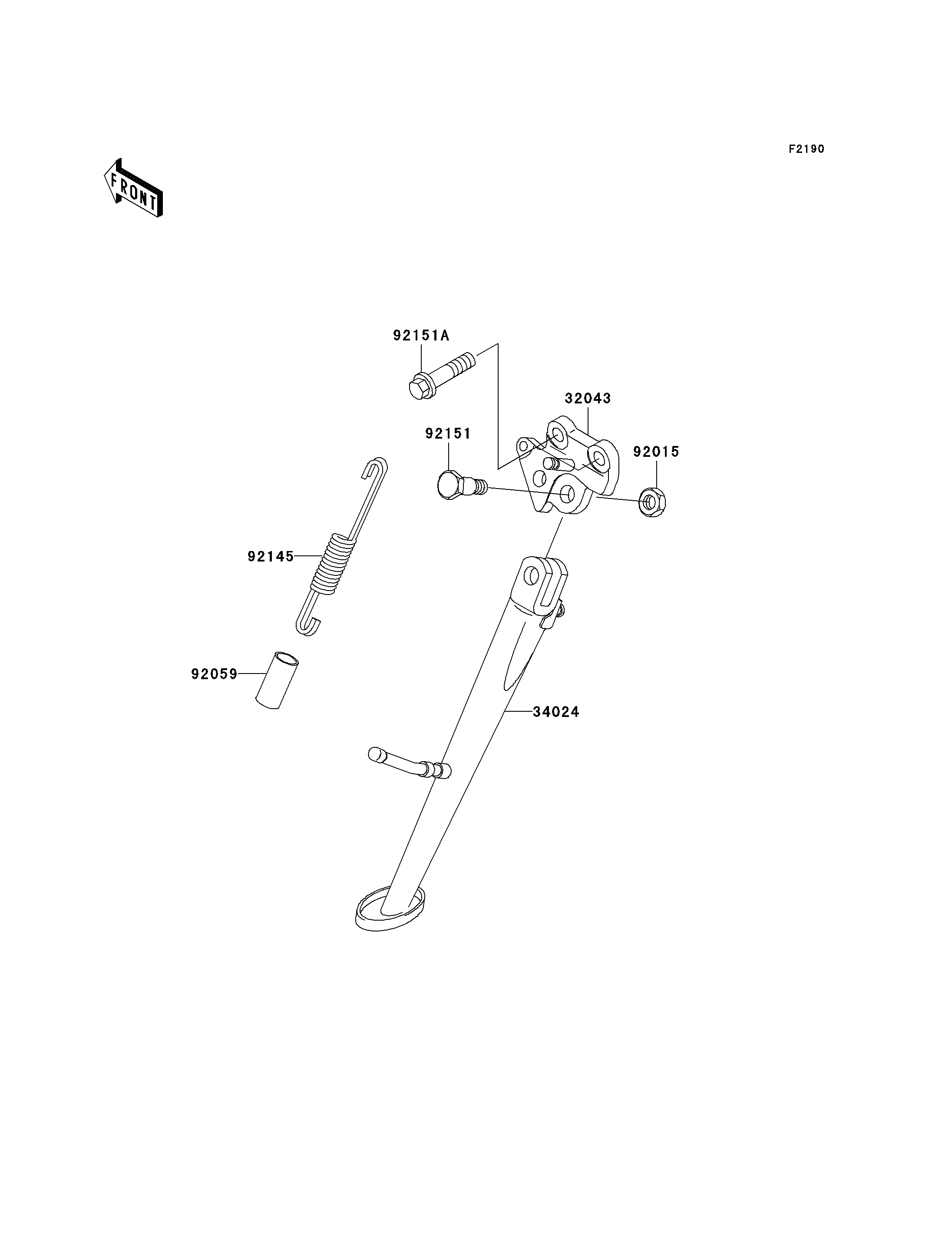

2006 Ninja® ZX™-12R (European) - Stand(s)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-STAND,SIDE | 32043 | 32043-1472 | 1 | ||
| STAND-SIDE,F.S.BLACK | 34024 | 34024-1373-8F | 1 | ||
| NUT,LOCK,10MM,BLACK | 92015 | 92015-1188 | 1 | ||
| TUBE,14X17X50 | 92059 | 92059-1961 | 1 | ||
| SPRING,SIDE STAND | 92145 | 92145-1317 | 1 | ||
| BOLT,SIDE STAND | 92151 | 92151-1531 | 1 | ||
| BOLT,FLANGED,10X25 | 92151A | 92151-1802 | 2 |
| BRACKET-STAND,SIDE | |
| REF # | 32043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE,F.S.BLACK | |
| REF # | 34024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,14X17X50 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SIDE STAND | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SIDE STAND | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X25 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
