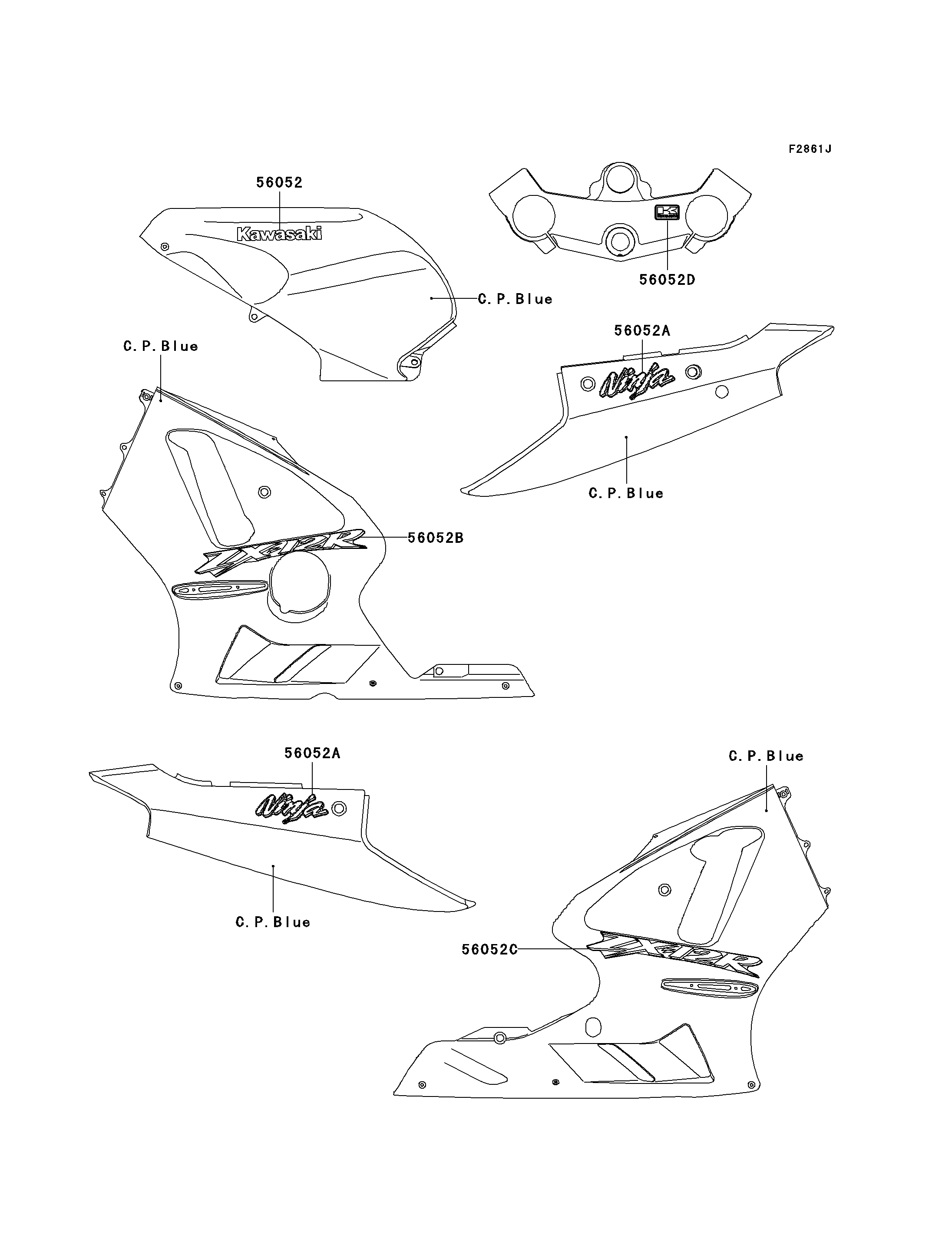

2005 Ninja® ZX™-12R - Decals(C.P.Blue)(B4)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56052 | 56052-0208 | 2 | CN | |
| MARK,TAIL COVER,NINJA | 56052A | 56052-0490 | 2 | CN | |
| MARK,LWR COWLING,LH,ZX-12R | 56052B | 56052-0491 | 1 | CN | |
| MARK,LWR COWLING,RH,ZX-12R | 56052C | 56052-0492 | 1 | CN | |
| MARK,K.KAWASAKI | 56052D | 56052-1202 | 1 | CN |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,TAIL COVER,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,LH,ZX-12R | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,RH,ZX-12R | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
