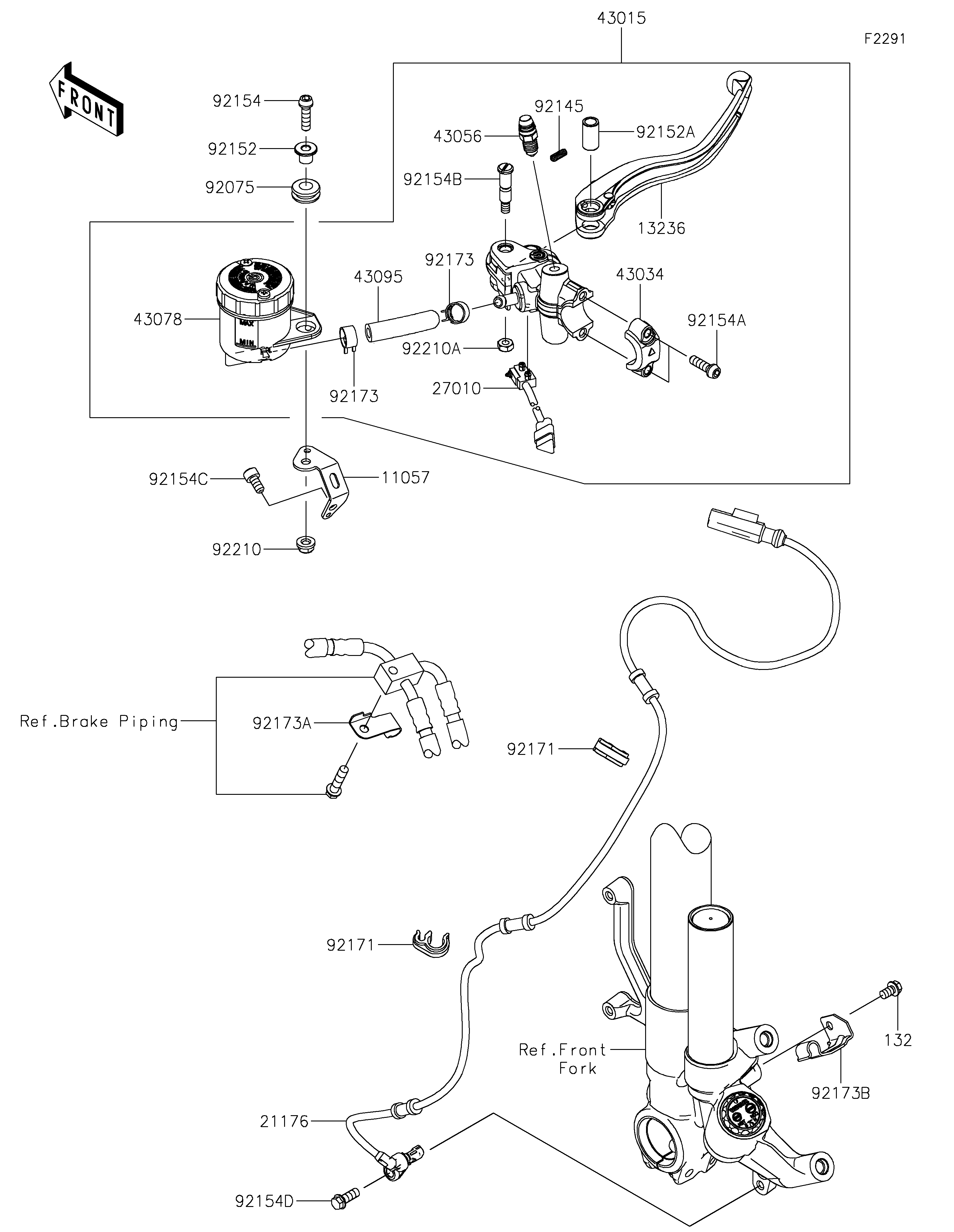

2025 NINJA® ZX™-10R ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13236
21176
27010
43015
43034
43056
43078
43095
92075
92145
92152
92152A
92154
92154A
92154B
92154C
92154D
92171
92171
92173
92173
92173A
92173B
92210
92210A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11057 11057-4250 1
LEVER-COMP,BRAKE 13236 13236-0770 1
SENSOR,FR WHEEL 21176 21176-0979 1
SWITCH,BRAKE 27010 27010-0946 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0773 1
HOLDER-BRAKE 43034 43034-0121 1
BREATHER-BRAKE 43056 43056-0019 1
RESERVOIR 43078 43078-0577 1
HOSE-BRAKE 43095 43095-0908 1
DAMPER 92075 92075-1028 1
SPRING 92145 92145-1683 1
COLLAR,6X16X10.6 92152 92152-2110 1
COLLAR,LEVER 92152A 92152-2151 1
BOLT,SOCKET,6X22 92154 92154-1456 1
BOLT,SOCKET,6X20 92154A 92154-1644 2
BOLT,LEVER 92154B 92154-1809 1
BOLT,SOCKET,6X12 92154C 92154-1978 1
BOLT,FLANGED,6X16 92154D 92154-4217 1
CLAMP,BRAKE HOSE 92171 92171-1819 2
CLAMP,HOSE 92173 92173-1498 2
CLAMP,UNDER BRACKET 92173A 92173-1507 1
CLAMP,AXLE,LH 92173B 92173-1887 1
NUT,6MM 92210 92210-0991 1
NUT,U 92210A 92210-1424 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
