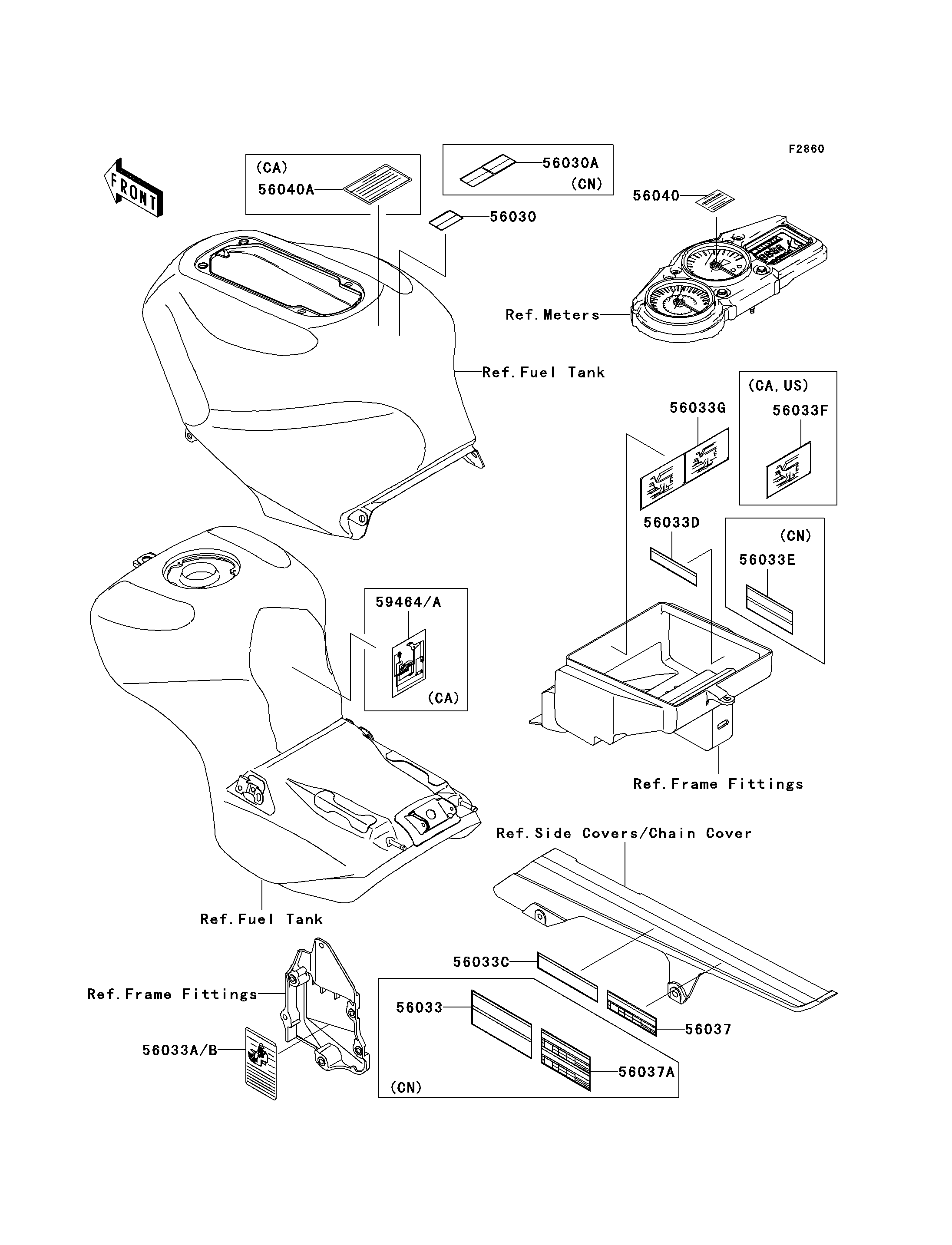

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-MANUAL,JUMP START | 56033A | 56033-1207 | 1 | ||
| LABEL,GASOLINE | 56030 | 56030-1177 | 1 | CAUS | |
| LABEL,GASOLINE | 56030A | 56030-1178 | 1 | CN | |
| LABEL-MANUAL,CHAIN | 56033 | 56033-1201 | 1 | CN | |
| LABEL-MANUAL,JUMP START(FRENCH | 56033B | 56033-1208 | 1 | CN | |
| LABEL-MANUAL,CHAIN | 56033C | 56033-1304 | 1 | CAUS | |
| LABEL-MANUAL,OIL&OIL FILTER | 56033D | 56033-1305 | 1 | CAUS | |
| LABEL-MANUAL,OIL&OIL FILTER | 56033E | 56033-1309 | 1 | CN | |
| LABEL-MANUAL,DAILY SAFETY | 56033F | 56033-1316 | 1 | CAUS | |
| LABEL-MANUAL,DAILY SAFETY | 56033G | 56033-1320 | 1 | CN | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56037 | 56037-1963 | 1 | CAUS | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56037A | 56037-1964 | 1 | CN | |
| LABEL-WARNING,BREAK IN CAUTION | 56040 | 56040-1007 | 1 | CAUS | |
| LABEL-WARNING,EVAPO | 56040A | 56040-1121 | 1 | CA | |
| LABEL-CERTIFICATION,EVAPO ROUT | 59464 | 59464-0273 | 1 | CA |
