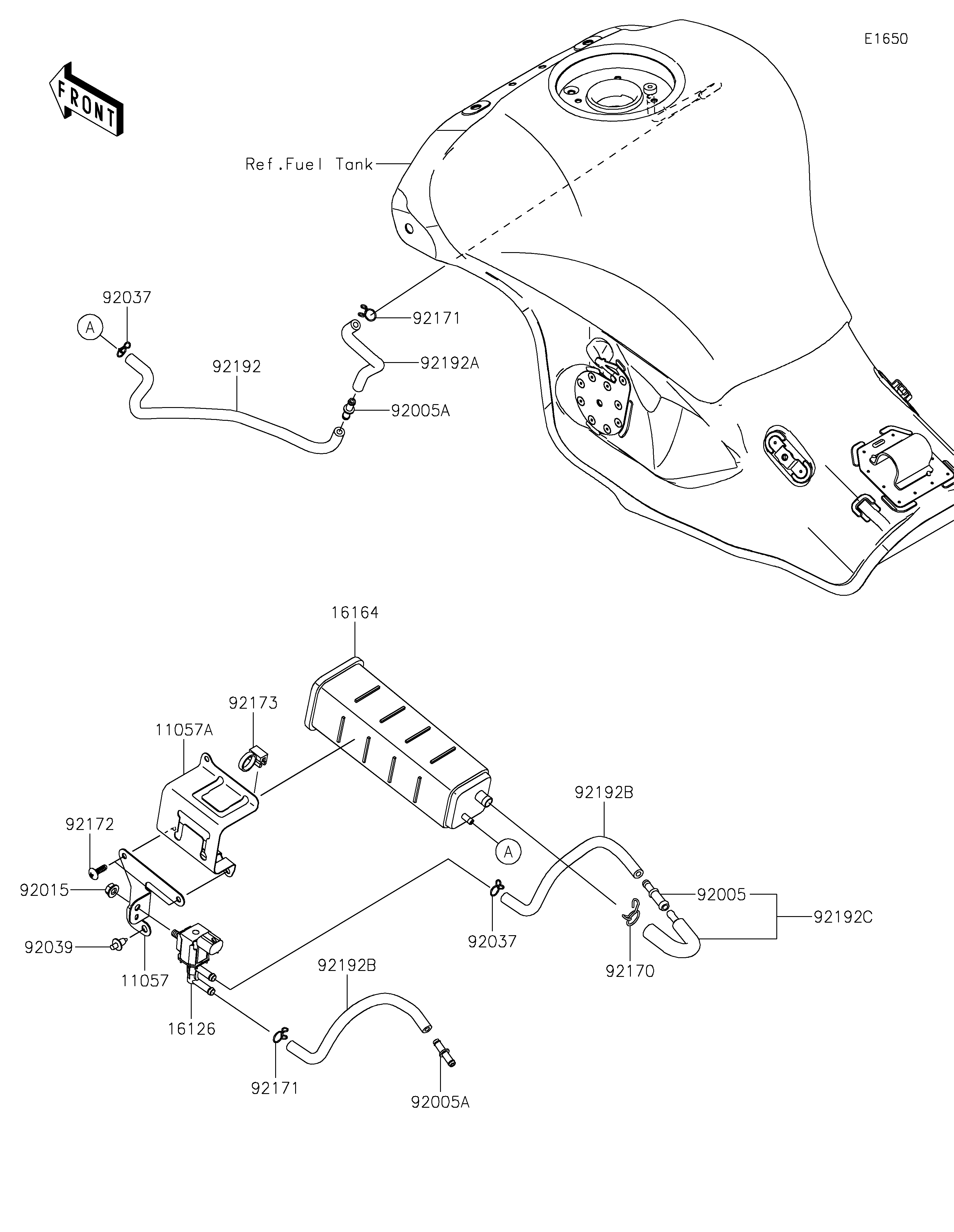

2025 NINJA® ZX™-10R ABS - Fuel Evaporative System(CA)
11057
11057A
16126
16164
92005
92005A
92005A
92015
92037
92037
92039
92170
92171
92171
92172
92173
92192
92192A
92192B
92192B
92192C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SOLENOID VALVE | 11057 | 11057-4234 | 1 | CA | |
| BRACKET,CANISTER | 11057A | 11057-4235 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| FITTING | 92005 | 92005-0720 | 1 | CA | |
| FITTING | 92005A | 92005-0721 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 2 | CA | |
| RIVET | 92039 | 92039-0068 | 1 | CA | |
| CLAMP | 92170 | 92170-1695 | 1 | CA | |
| CLAMP | 92171 | 92171-0718 | 2 | CA | |
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 2 | CA | |
| CLAMP | 92173 | 92173-0791 | 1 | CA | |
| TUBE,CANISTER-FITTING(TANK) | 92192 | 92192-1503 | 1 | CA | |
| TUBE,FITTING(CANISTER)-TANK | 92192A | 92192-1506 | 1 | CA | |
| TUBE,VALVE-TUBE(CANISTER) | 92192B | 92192-2506 | 2 | CA | |
| TUBE,TUBE(VALVE)-CANISTER | 92192C | 92192-2507 | 1 | CA |
