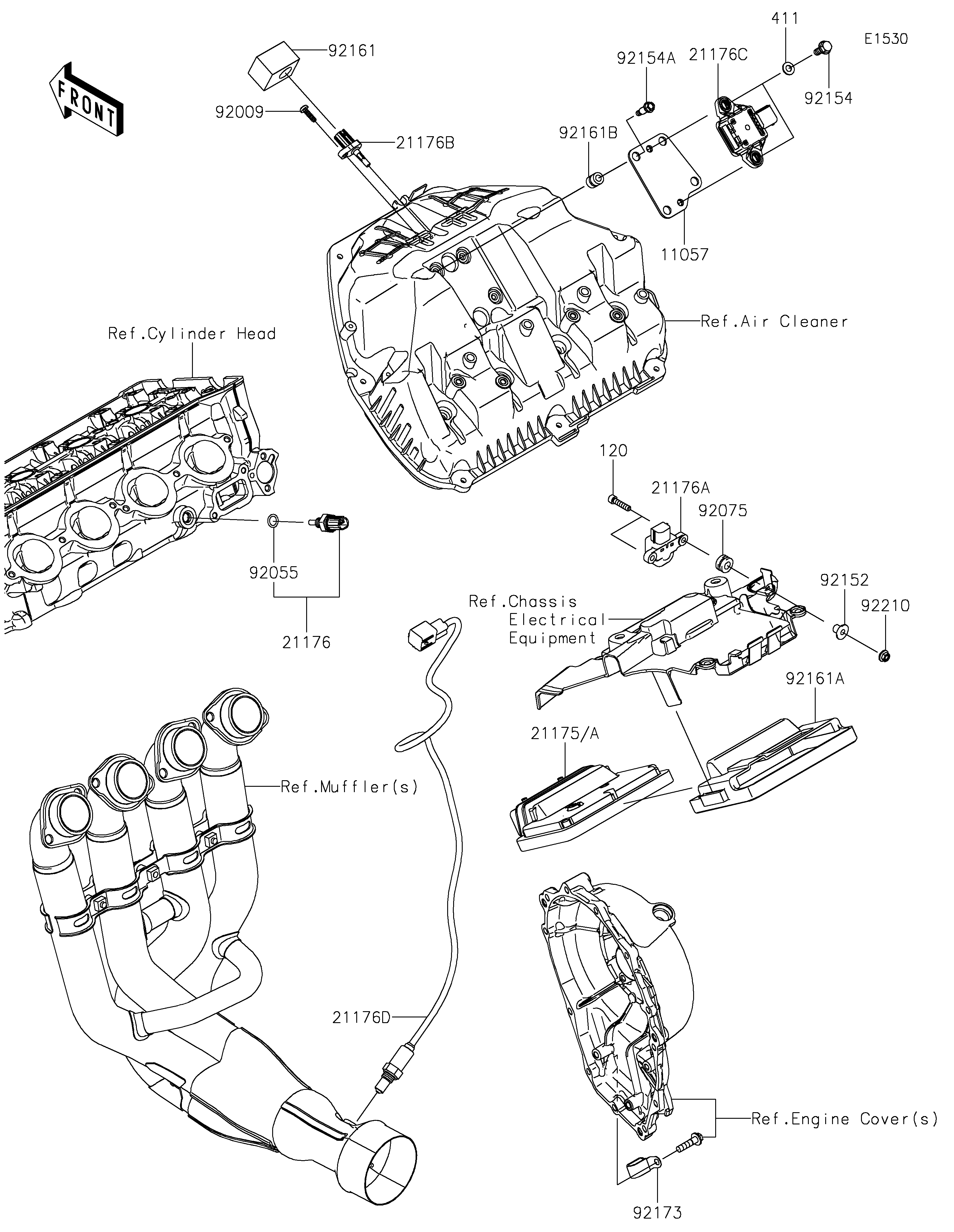

2025 NINJA® ZX™-10R ABS - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21175A
21176
21176A
21176B
21176C
21176D
92009
92055
92075
92152
92154
92154A
92161
92161A
92161B
92173
92210
120
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GYRO SENSOR 11057 11057-1847 1
CONTROL UNIT-ELECTRONIC 21175 21175-1647 1 CA
CONTROL UNIT-ELECTRONIC 21175A 21175-1650 1 CN
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,INERTIAL 21176C 21176-0878 1
SENSOR,OXYGEN 21176D 21176-0933 1
SCREW,TAPPING,5X16 92009 92009-1984 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92075 92075-1912 2
COLLAR 92152 92152-1969 2
BOLT,FLANGED,6X16 92154 92154-1851 2
BOLT,FLANGED,5X13.1 92154A 92154-3841 4
DAMPER 92161 92161-0985 1
DAMPER,ECU 92161A 92161-2140 1
DAMPER,GYRO SENSOR 92161B 92161-2142 4
CLAMP 92173 92173-1549 1
NUT,FLANGED,5MM 92210 92210-0950 2
BOLT-SOCKET,5X22 120 120R0522 2
WASHER-PLAIN,6MM 411 411S0600 2
