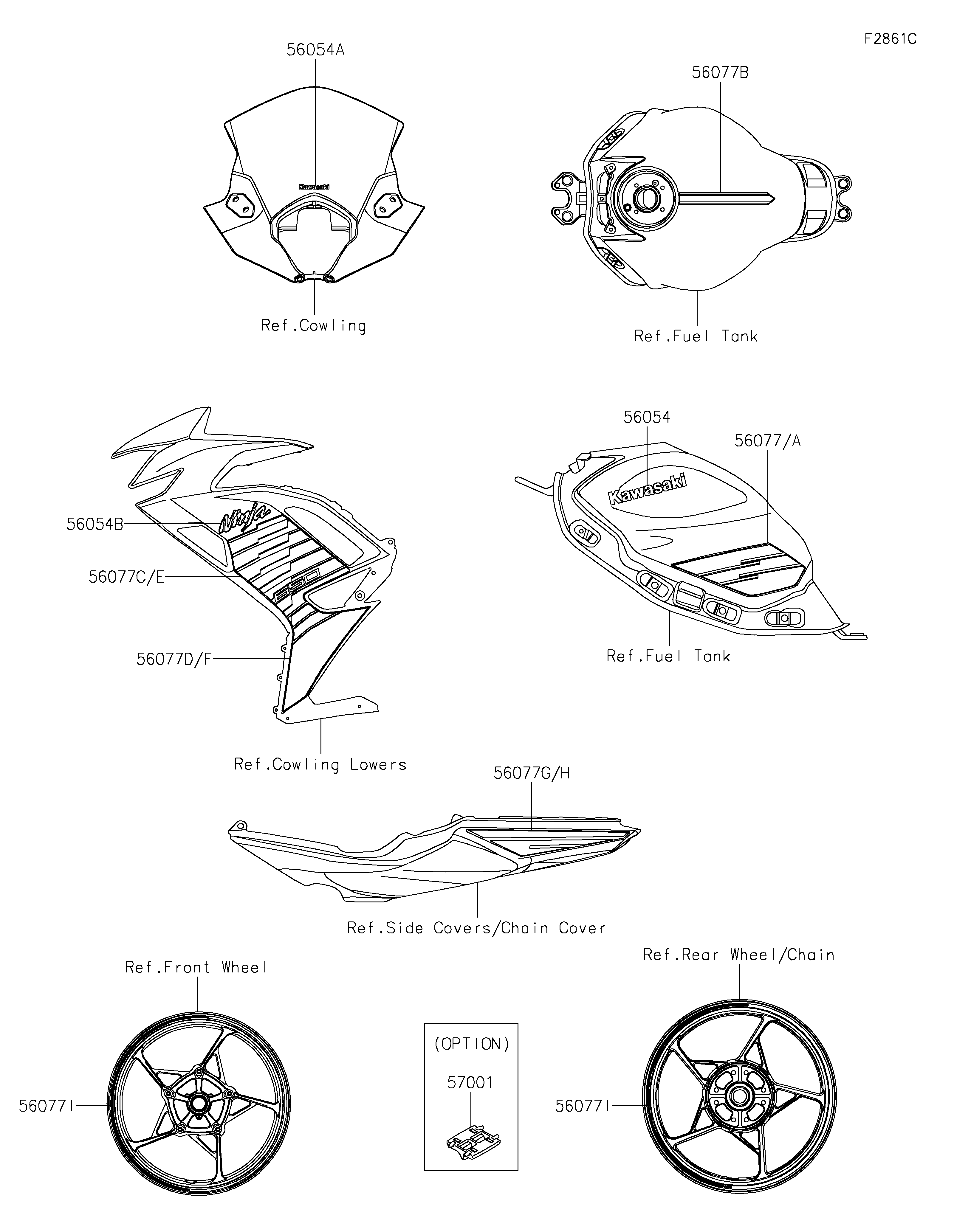

2025 Ninja 650 KRT Edition - Decals(M.M.D.Green)(RSFAN)
56054
56054A
56054B
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077I
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56054 | 56054-1204 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2261 | 1 | ||
| MARK,SIDE COWL.,NINJA | 56054B | 56054-4265 | 2 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-2095 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-2096 | 1 | ||
| PATTERN,FUEL TANK | 56077B | 56077-2097 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56077C | 56077-2098 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56077D | 56077-2099 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56077E | 56077-2100 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56077F | 56077-2101 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077G | 56077-2102 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077H | 56077-2103 | 1 | ||
| PATTERN,WHEEL,SIL/BLK,6X700 | 56077I | 56077-2104 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,SIL/BLK,6X700 | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
