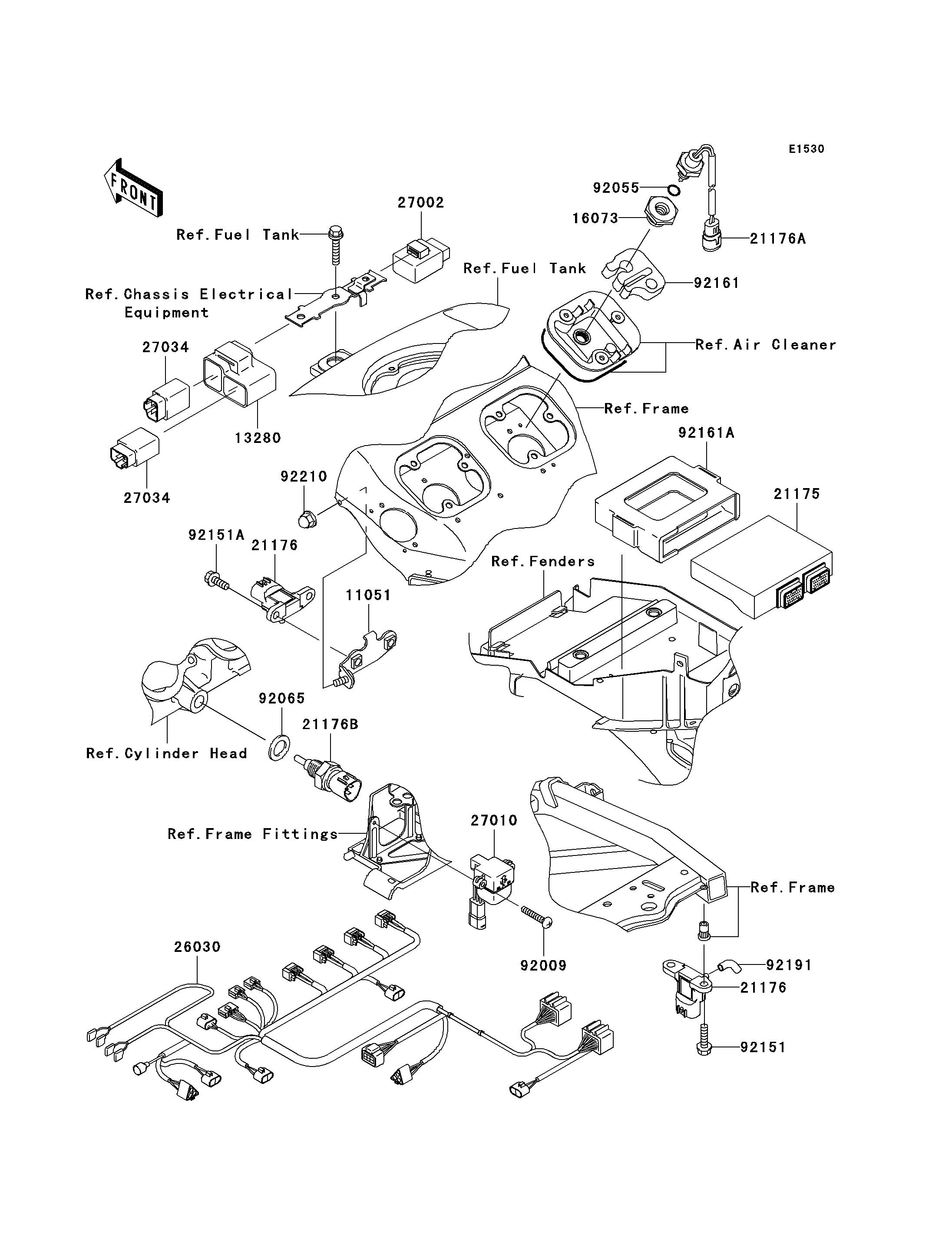

2003 Ninja® ZX™-12R - Fuel Injection(B1/B2)
11051
13280
16073
21175
21176
21176
21176A
21176B
26030
27002
27010
27034
27034
92009
92055
92065
92151
92151A
92161
92161A
92191
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11051 | 11051-1660 | 1 | ||
| HOLDER,RELAY ASSY | 13280 | 13280-1274 | 1 | ||
| INSULATOR | 16073 | 16073-1121 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-1089 | 1 | ||
| SENSOR,PRESSURE | 21176 | 21176-1095 | 2 | ||
| SENSOR,AIR TEMPERATURE | 21176A | 21176-1097 | 1 | ||
| SENSOR,WATER TEMPERATURE | 21176B | 21176-1098 | 1 | ||
| HARNESS | 26030 | 26030-1930 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1062 | 1 | ||
| SWITCH | 27010 | 27010-1426 | 1 | ||
| RELAY,FAN | 27034 | 27034-1073 | 2 | ||
| SCREW,4X20 | 92009 | 92009-1897 | 2 | ||
| RING-O,ID=9.5 | 92055 | 92055-1386 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| BOLT,6X22 | 92151 | 92151-1236 | 2 | ||
| BOLT,6X16 | 92151A | 92151-1774 | 2 | ||
| DAMPER | 92161 | 92161-1144 | 1 | ||
| DAMPER,CONTROL UNIT | 92161A | 92161-1264 | 1 | ||
| TUBE | 92191 | 92191-1499 | 1 | ||
| NUT | 92210 | 92210-1252 | 1 |
