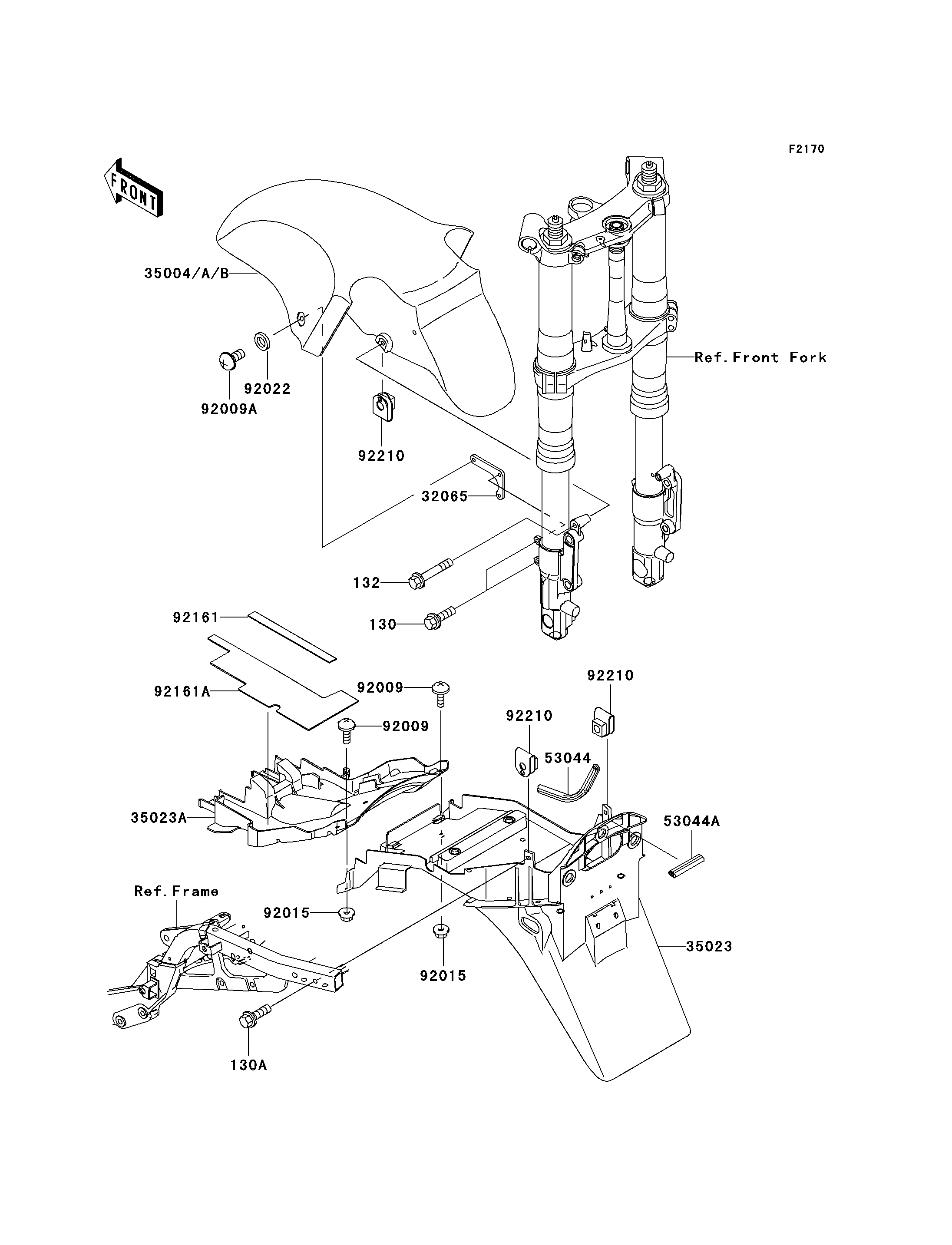

2000 Ninja® ZX™-12R - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
32065
35004
35004B
35023
35023A
53044
53044A
92009
92009
92009A
92015
92015
92022
92161
92161A
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 4
BOLT-FLANGED,6X35 130A 130J0635 2
BOLT-FLANGED-SMALL 132 132J0670 2
BRACKET-FENDER 32065 32065-1358 2
FENDER-FRONT,C.P.RED 35004 35004-1398-A5 1
FENDER-FRONT,C.L.GREEN 35004B 35004-1398-8N 1
FENDER-REAR,RR 35023 35023-1518 1
FENDER-REAR,FR 35023A 35023-1542 1
TRIM 53044 53044-1137 1
TRIM,L=48 53044A 53044-1324 1
SCREW,5X20,BLACK 92009 92009-1656 2
SCREW,6X10 92009A 92009-1661 2
NUT,LOCK,FLANGED,5MM 92015 92015-1752 2
WASHER,6.5X16X1 92022 92022-1143 2
DAMPER 92161 92161-1169 1
DAMPER 92161A 92161-1183 1
NUT,6MM 92210 92210-1190 4
FENDER-FRONT,M.P.SILVER 35004A 35004-1398-GU 1 CN
