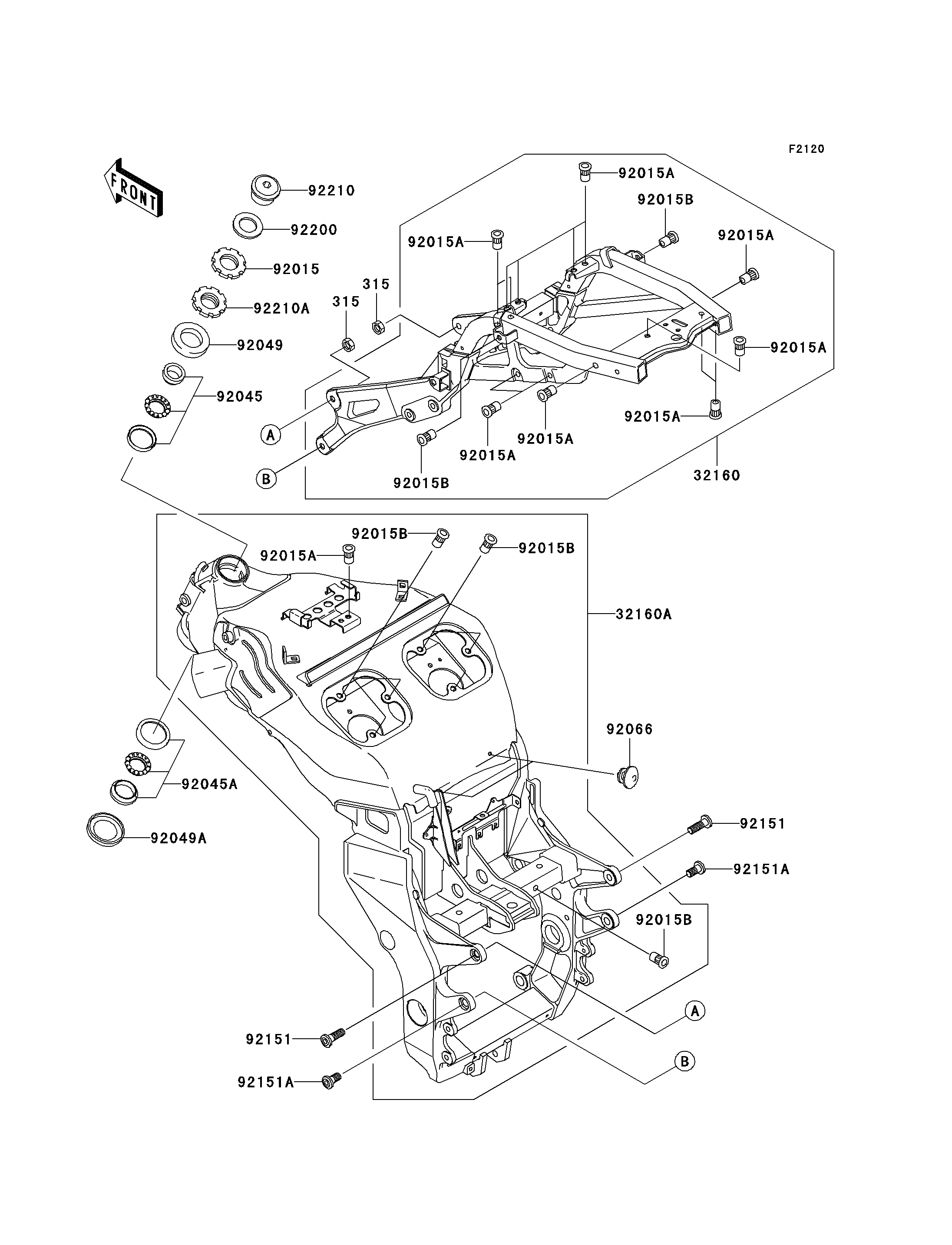

2000 Ninja® ZX™-12R - Frame

DOWNLOAD PDF
SELECT A NEW PART
315
315
32160
32160A
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92045
92045A
92049
92049A
92066
92151
92151
92151A
92151A
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-FINE,10MM 315 315G1000 2
FRAME-COMP,AL,RR,F.S.BLACK 32160 32160-1607-8F 1
FRAME-COMP,AL,FR,F.S.BLACK 32160A 32160-1609-8F 1
NUT,25MM,T=6 92015 92015-1129 1
NUT,POP,6MM,L=15 92015A 92015-1791 14
NUT,POP,6MM,L=16.5 92015B 92015-1792 9
BEARING-BALL,SAC2547-2 92045 92045-1382 1
BEARING-BALL,SF07A17PX1V1 92045A 92045-1384 1
SEAL-OIL,STEERING STEM 92049 92049-1214 1
SEAL-OIL,XMHE 43 55 4J 92049A 92049-1383 1
PLUG 92066 92066-1547 2
BOLT,SOCKET,10X30 92151 92151-1372 2
BOLT,SOCKET,10X20 92151A 92151-1557 2
WASHER,22.5X33X2.3 92200 92200-1482 1
NUT,TOP,M22X1.0 92210 92210-1194 1
NUT,STEERING STEM,25MM 92210A 92210-1195 1
