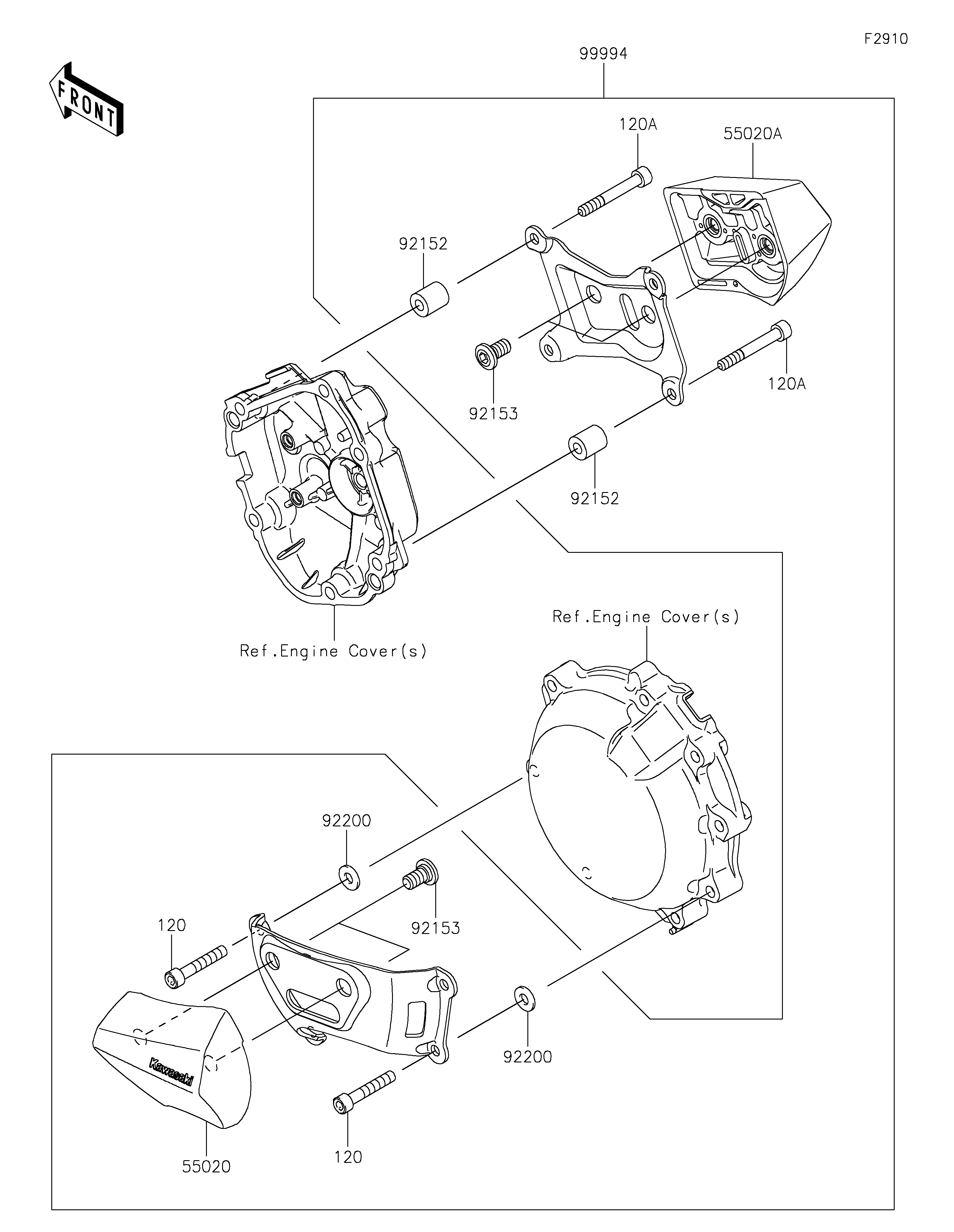

2022 NINJA® ZX™-10R - Accessory(Slider)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUARD,ENGINE,LH | 55020 | 55020-0595 | 1 | ||
| GUARD,ENGINE,RH | 55020A | 55020-0596 | 1 | ||
| COLLAR,6.5X14X16 | 92152 | 92152-0940 | 4 | ||
| BOLT,SOCKET,8X15 | 92153 | 92153-1810 | 4 | ||
| WASHER,6.5X14.5X1.5 | 92200 | 92200-3775 | 4 | ||
| KIT-ACCESSORY,SLIDER | 99994 | 99994-0210 | 1 | ||
| BOLT-SOCKET,6X35 | 120 | 120CC0635 | 4 | ||
| BOLT-SOCKET,6X45 | 120A | 120CC0645 | 4 |
| GUARD,ENGINE,LH | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE,RH | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X14X16 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X15 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X14.5X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SLIDER | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X35 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X45 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
