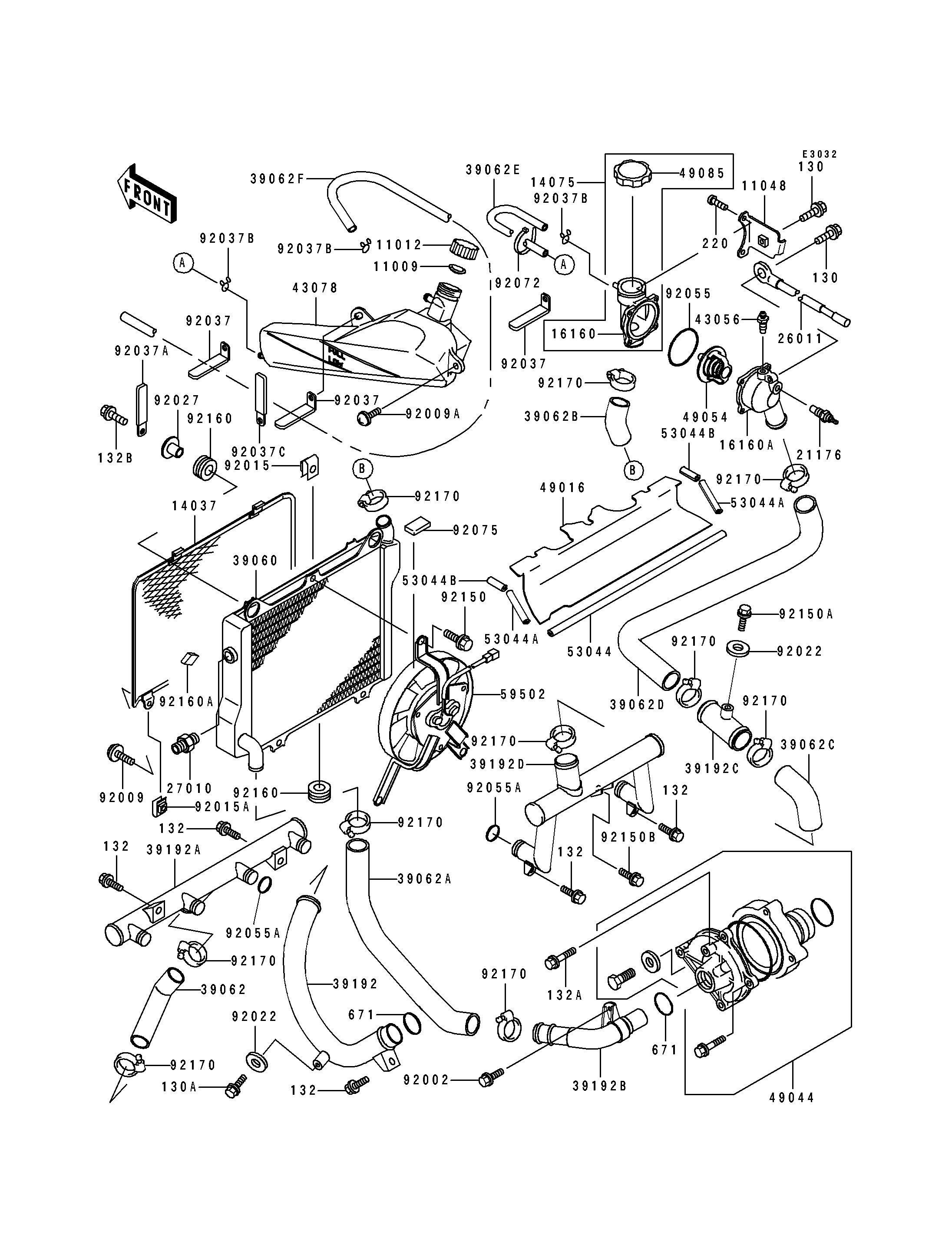

1996 GPZ 1100 ABS - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET 11048 11048-1941 1
SCREEN,RADIATOR 14037 14037-1198 1
CAP-ASSY 14075 14075-1068 1
BODY,THERMOSTAT,UPP 16160 16160-1116 1
BODY,THERMOSTAT,LWR 16160A 16160-1117 1
SENSOR,WATER 21176 21176-1054 1
WIRE-LEAD,(-) 26011 26011-1590 1
SWITCH 27010 27010-1356 1
RADIATOR 39060 39060-1130 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1276 1
HOSE-COOLING,RADIATOR-PUMP 39062A 39062-1638 1
HOSE-COOLING,THERMO-RADIATOR 39062B 39062-1639 1
HOSE-COOLING 39062C 39062-1640 1
HOSE-COOLING,PIPE-THERMOSTAT 39062D 39062-1641 1
HOSE-COOLING 39062E 39062-1653 1
HOSE-COOLING,OVER FLOW 39062F 39062-1654 1
PIPE-WATER,PUMP-CYLINDER 39192 39192-1011 1
PIPE-WATER,CYLINDER 39192A 39192-1031 1
PIPE-WATER 39192B 39192-1074 1
PIPE-WATER 39192C 39192-1076 1
PIPE-WATER 39192D 39192-1092 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-1148 1
COVER-SEAL 49016 49016-1189 1
PUMP-WATER 49044 49044-1076 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
TRIM,L=520 53044 53044-1205 1
TRIM 53044A 53044-1288 2
TRIM 53044B 53044-1289 2
FAN-ASSY 59502 59502-1111 1
BOLT,6X16 92002 92002-1571 1
SCREW,TAPPING,6MM 92009 92009-1261 2
SCREW,6X14 92009A 92009-1662 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
WASHER,6.2X11X1 92022 92022-304 2
COLLAR,L=14 92027 92027-1134 2
CLAMP,WIRING HARNESS 92037 92037-1069 3
CLAMP 92037A 92037-113 1
CLAMP,TUBE 92037B 92037-147 3
CLAMP 92037C 92037-1993 1
RING-O,53.5X2.6 92055 92055-112 1
RING-O 92055A 92055-1282 6
BAND,L=186 92072 92072-056 2
DAMPER 92075 92075-1446 2
BOLT,6X12 92150 92150-1186 3
BOLT,BANJO,6X16 92150A 92150-1796 1
BOLT,6X12 92150B 92150-1841 1
DAMPER 92160 92160-1007 3
DAMPER,SCREEN 92160A 92160-1663 1
CLAMP,COOLING HOSE 92170 92170-1284 10
BOLT-FLANGED,6X10 130 130G0610 2
BOLT-FLANGED,6X16,BLACK 130A 130J0616 1
BOLT-FLANGED-SMALL 132 132J0612 5
BOLT-FLANGED-SMALL,6X40 132A 132J0640 2
BOLT-FLANGED-SMALL 132B 132J0825 2
SCREW-PAN-CROS,5X14 220 220D0514 4
O RING,25MM 671 671B2525 2
