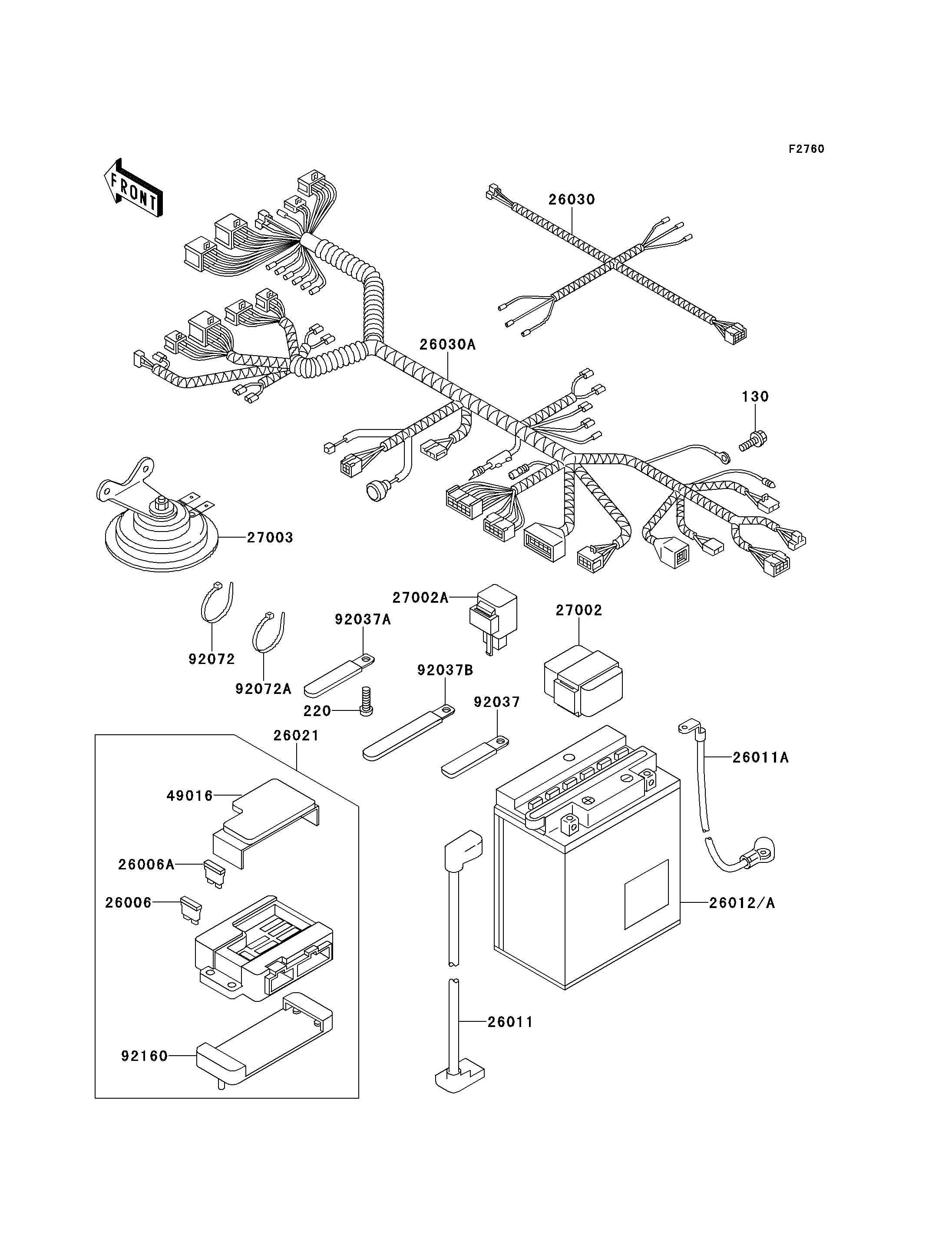

1995 GPZ 1100 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
220
26006
26006A
26011
26011A
26012
26021
26030
26030A
27002
27002A
27003
49016
92037
92037A
92037B
92072
92072A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 1
SCREW-PAN-CROS 220 220C0510 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(+) 26011 26011-1615 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1616 1
BATTERY,YTX14-BS,12V 12AH 26012 26012-1279 1
JUNCTION BOX 26021 26021-1096 1
HARNESS,FR 26030 26030-1340 1
HARNESS,MAIN 26030A 26030-1342 1
RELAY-ASSY 27002 27002-1065 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1092 1
HORN 27003 27003-1385 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,WIRING HARNESS 92037 92037-1069 5
CLAMP,WIRING HARNESS 92037A 92037-1539 1
CLAMP 92037B 92037-1993 1
BAND,L=185 92072 92072-1195 9
BAND,L=365 92072A 92072-1197 1
DAMPER,JUNCTION BOX 92160 92160-1650 1
