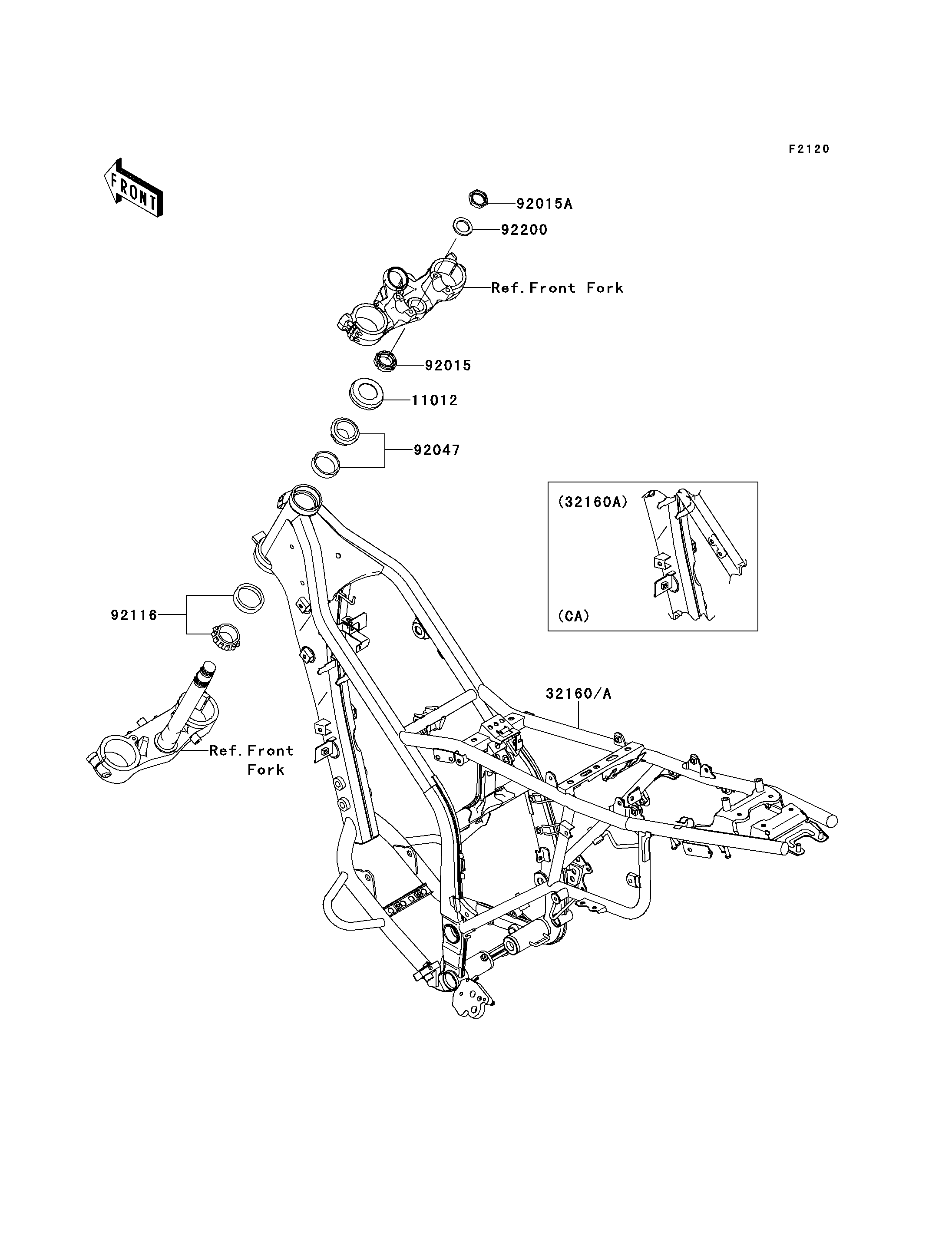

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 11012-1762 | 1 | ||
| NUT,25MM,T=12 | 92015 | 92015-1546 | 1 | ||
| NUT,STEERING STEM,22MM | 92015A | 92015-1653 | 1 | ||
| RACE,ROLLER,32005JR RS | 92047 | 92047-017 | 1 | ||
| BEARING-ROLLER,HI-CAP32006JRRS | 92116 | 92116-1069 | 1 | ||
| WASHER,STEERING STEM | 92200 | 92200-0517 | 1 | ||
| FRAME-COMP,F.S.BLACK | 32160 | 32160-0350-18R | 1 | CNUS | |
| FRAME-COMP,F.S.BLACK | 32160A | 32160-0352-18R | 1 | CA |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=12 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM,22MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,ROLLER,32005JR RS | |
| REF # | 92047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP32006JRRS | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,STEERING STEM | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,F.S.BLACK | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| FRAME-COMP,F.S.BLACK | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
