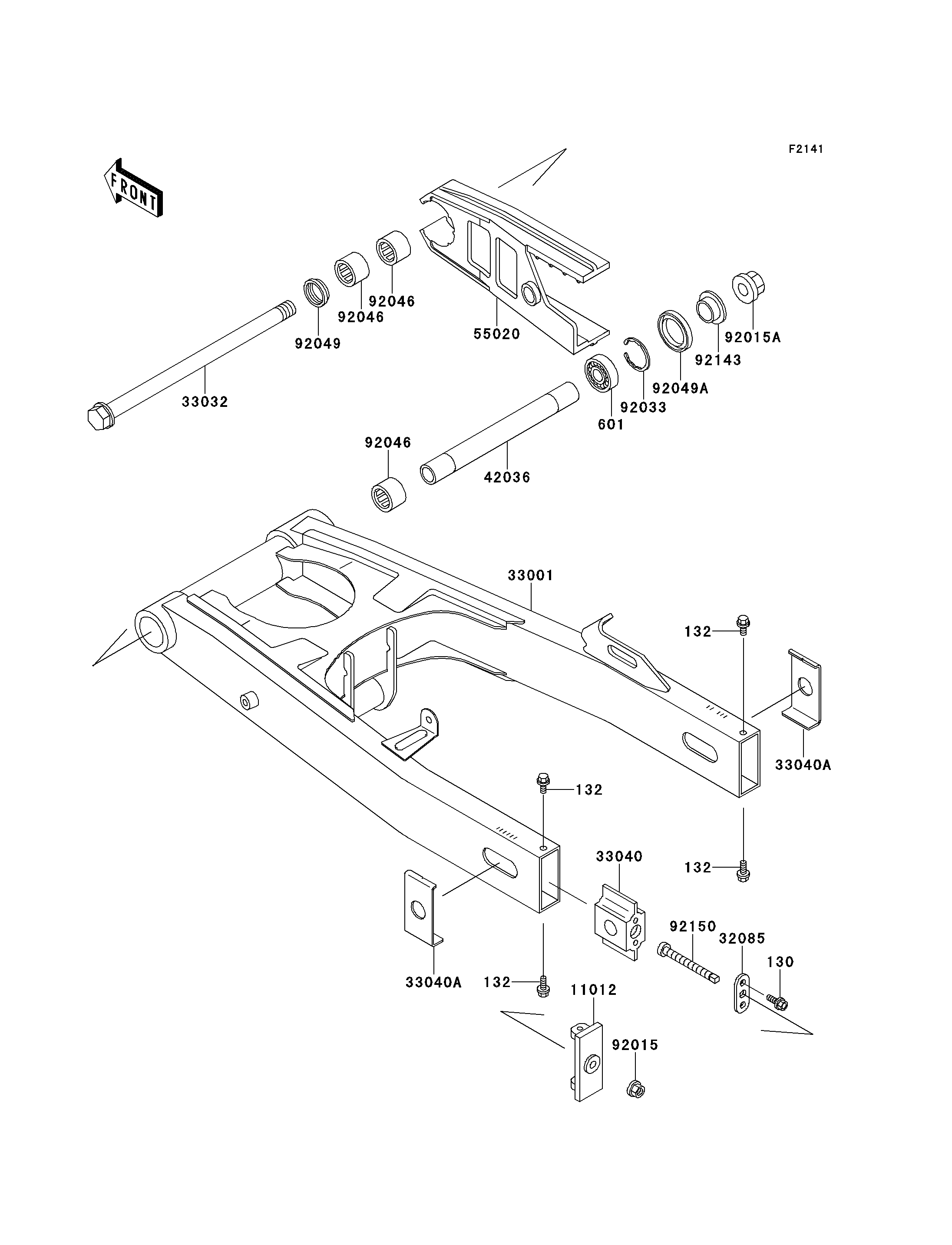

1995 GPZ 1100 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132
132
601
11012
32085
33001
33032
33040
33040A
33040A
42036
55020
92015
92015A
92033
92046
92046
92046
92049
92049A
92143
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0616 4
BOLT-FLANGED-SMALL 132 132J0612 4
BEARING-BALL,#6004 601 601A6004 1
CAP,CHAIN ADJUSTER 11012 11012-1911 2
STOPPER,CHAIN ADJUSTER 32085 32085-1408 2
ARM-COMP-SWING 33001 33001-1474 1
SHAFT-SWING ARM 33032 33032-1170 1
ADJUSTER-CHAIN,INNER 33040 33040-1142 2
ADJUSTER-CHAIN,OUTER 33040A 33040-1143 2
SLEEVE,SWING ARM,L=227.2 42036 42036-1236 1
GUARD,CHAIN 55020 55020-1529 1
NUT,FLANGED,8MM,BLACK 92015 92015-1183 2
NUT,FLANGED,20MM 92015A 92015-1724 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-NEEDLE,BM2817 92046 92046-1111 3
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,TC28426.5 92049A 92049-1185 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 1
BOLT,CHAIN ADJUSTER 92150 92150-1285 2
