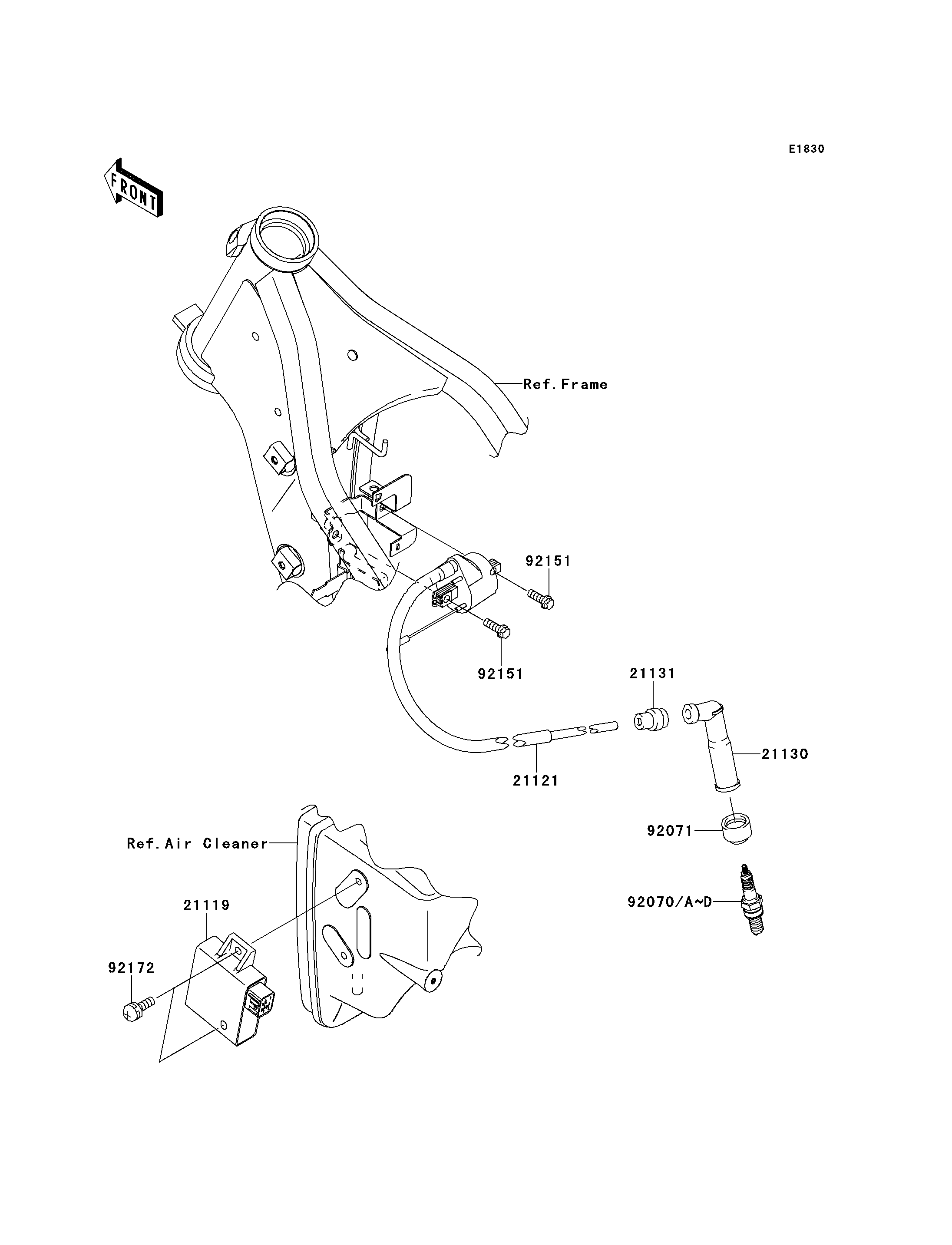

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| IGNITER | 21119 | 21119-0086 | 1 | ||
| COIL-IGNITION | 21121 | 21121-0033 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1002 | 1 | ||
| GROMMET,HIGH TENSION | 21131 | 21131-005 | 1 | ||
| PLUG-SPARK,CR8E(NGK) | 92070 | 92070-0031 | 1 | ||
| PLUG-SPARK,U27ESR-N(ND) | 92070A | 1 | (OPTION) | ||
| PLUG-SPARK,U24ESR-N(ND) | 92070B | 1 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,CR7E(NGK) | 92070C | 92070-1209 | 1 | (OPTION) | |
| PLUG-SPARK,CR9E(NGK) | 92070D | 92070-1266 | 1 | (OPTION) | |
| GROMMET,PLUG CAP | 92071 | 92071-1124 | 1 | ||
| BOLT,6X18 | 92151 | 92151-1311 | 2 | ||
| SCREW-PAN-WS-CROS,6X10 | 92172 | 92172-0241 | 2 |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 21131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,CR8E(NGK) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,U27ESR-N(ND) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,U24ESR-N(ND) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,CR7E(NGK) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,CR9E(NGK) | |
| REF # | 92070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| GROMMET,PLUG CAP | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS,6X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
