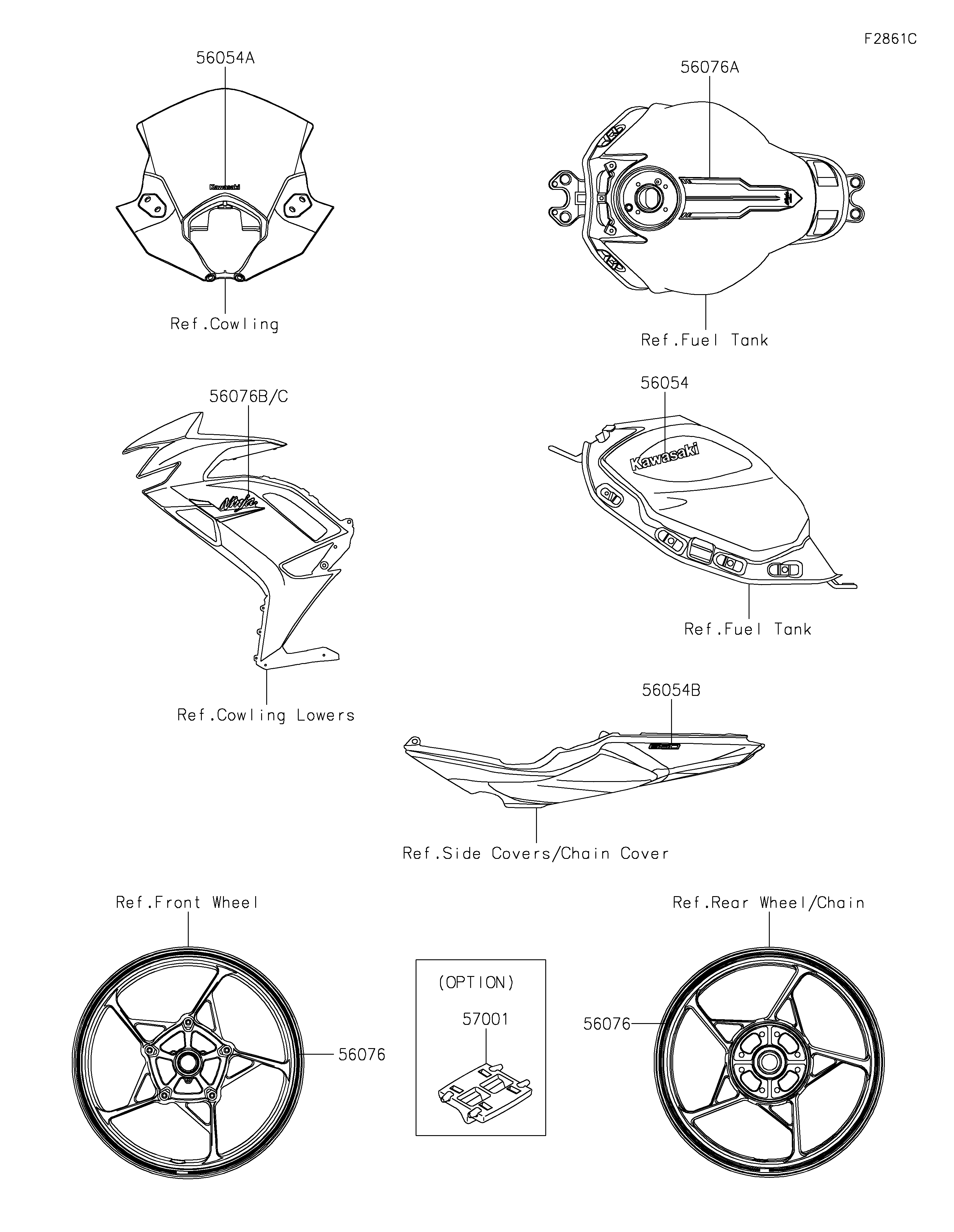

2024 Ninja® 650 - Decals(M.M.G.Gray)(RRFNN/RRFNL)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56054 | 56054-1988 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2261 | 1 | ||
| MARK,TAIL COVER,650 | 56054B | 56054-2980 | 2 | ||
| PATTERN,WHEEL,GRN/BLK,4X1353 | 56076 | 56076-4003 | 4 | ||
| PATTERN,FUEL TANK | 56076A | 56076-7478 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56076B | 56076-7479 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56076C | 56076-7480 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TAIL COVER,650 | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN/BLK,4X1353 | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
