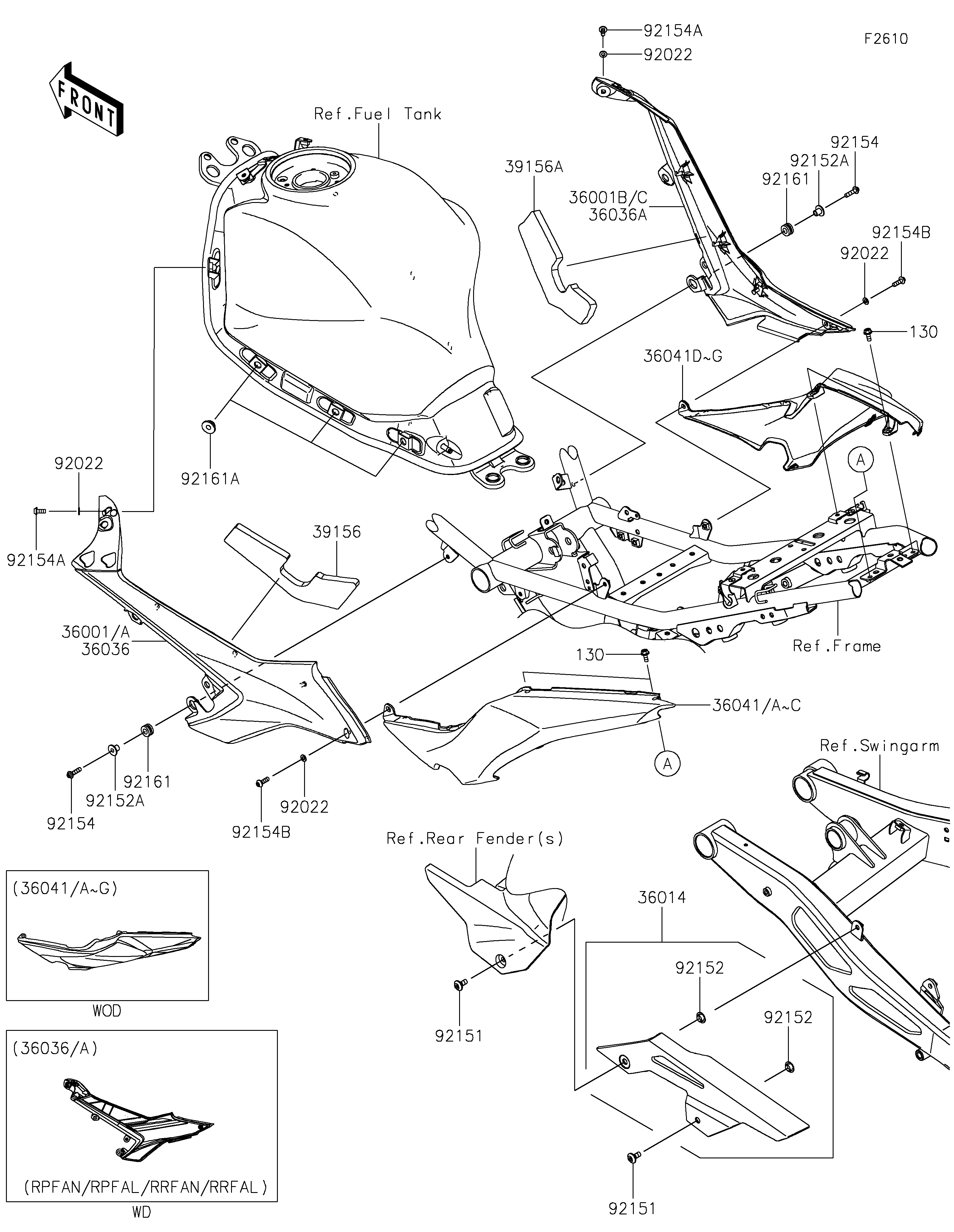

2023 Ninja® 650 KRT Edition - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001A
36001C
36014
36036
36036A
36041
36041B
36041C
36041D
36041F
36041G
39156
39156A
92022
92022
92022
92022
92151
92151
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001A 36001-0650-H8 1
COVER-SIDE,RH,EBONY 36001C 36001-0651-H8 1
CASE-CHAIN 36014 36014-0044 1
COVER-SIDE,LH,L.GREEN 36036 36036-5483-777 1
COVER-SIDE,RH,L.GREEN 36036A 36036-5484-777 1
COVER-TAIL,LH,M.F.R.GRAYSTONE 36041 36041-0033-35B 1
COVER-TAIL,LH,M.M.G.GRAY 36041B 36041-0033-68P 1
COVER-TAIL,LH,L.GREEN 36041C 36041-0033-777 1
COVER-TAIL,RH,M.F.R.GRAYSTONE 36041D 36041-0034-35B 1
COVER-TAIL,RH,M.M.G.GRAY 36041F 36041-0034-68P 1
COVER-TAIL,RH,L.GREEN 36041G 36041-0034-777 1
PAD,COVER-SIDE,LH 39156 39156-2617 1
PAD,COVER-SIDE,RH 39156A 39156-2618 1
WASHER,5.1X10X1.0 92022 92022-1977 4
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR 92152A 92152-1592 2
BOLT,SOCKET,5X20 92154 92154-0210 2
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,5X16 92154B 92154-1701 2
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER,6X20X7.5 92161A 92161-1937 6
BOLT-FLANGED,5X12 130 130BA0512 4
