Parts Diagrams |

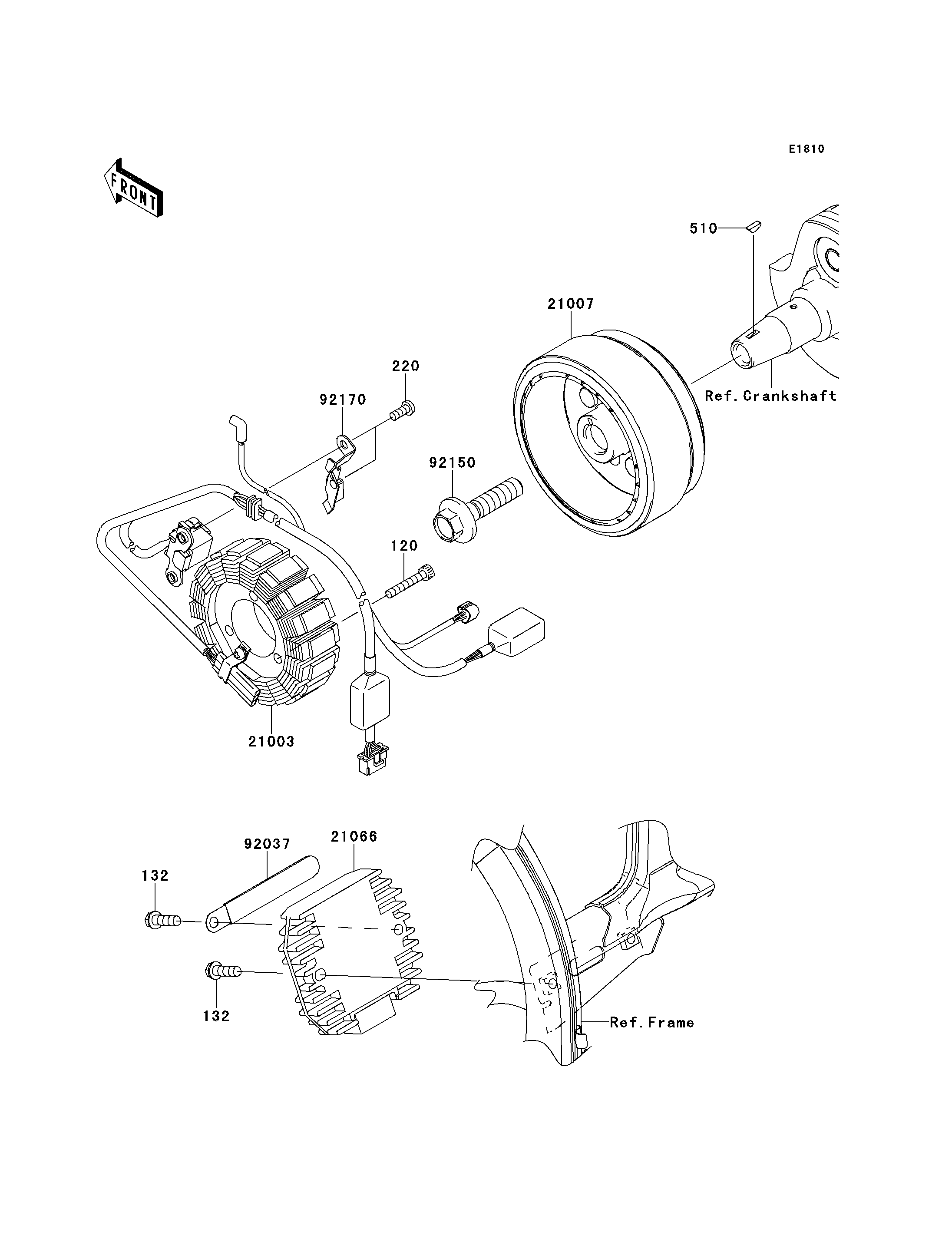

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,5X30 | 120 | 120CA0530 | 3 | ||
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BA0620 | 2 | ||
| SCREW-PAN-CROS,5X12 | 220 | 220AA0512 | 2 | ||
| KEY-WOODRUFF | 510 | 510A3100 | 1 | ||
| STATOR | 21003 | 21003-0087 | 1 | ||
| ROTOR,MAGNETO | 21007 | 21007-0118 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0027 | 1 | ||
| CLAMP | 92037 | 92037-1993 | 1 | ||
| BOLT,12X50 | 92150 | 92150-1708 | 1 | ||
| CLAMP | 92170 | 92170-1346 | 1 |
| BOLT-SOCKET,5X30 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KEY-WOODRUFF | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,MAGNETO | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X50 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
