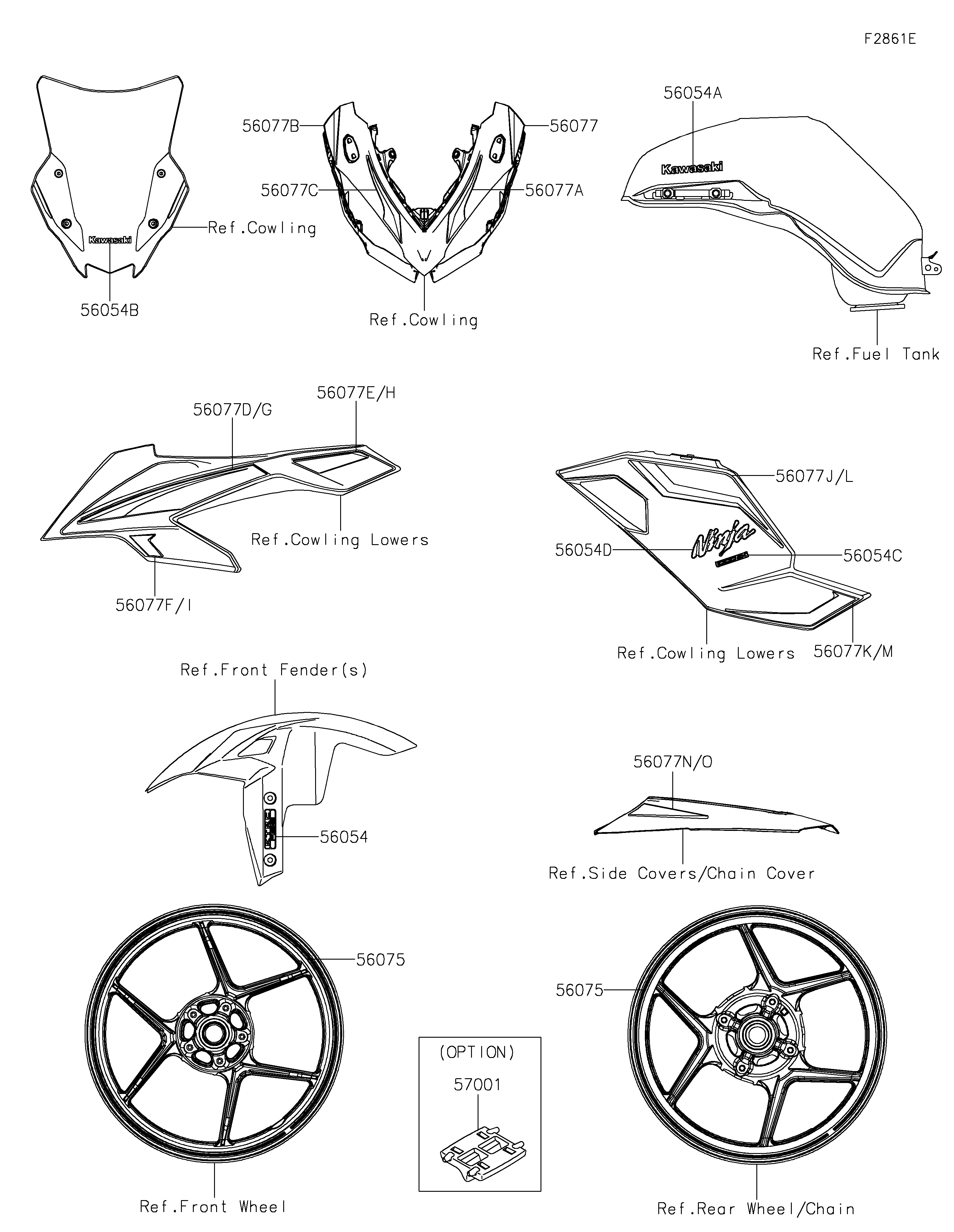

2024 NINJA® 1000SX ABS - Decals(Gray)(KRFAN/KRFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56075
56075
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,KTRC ABS 56054 56054-0953 2
MARK,KAWASAKI 56054A 56054-1358 2
MARK,WINDSHIELD,KAWASAKI 56054B 56054-2185 1
MARK,SIDE COWL.,1000SX,3D 56054C 56054-2651 2
MARK,SIDE COWL.,NINJA 56054D 56054-2842 2
PATTERN,WHEEL,RED,4X1353 56075 56075-2315 4
PATTERN,UPP COWL.,LH,RR 56077 56077-0950 1
PATTERN,UPP COWL.,LH,FR 56077A 56077-0951 1
PATTERN,UPP COWL.,RH,RR 56077B 56077-0952 1
PATTERN,UPP COWL.,RH,FR 56077C 56077-0953 1
PATTERN,UPP SIDE COWL.,LH,FR 56077D 56077-0954 1
PATTERN,UPP SIDE COWL.,LH,RR 56077E 56077-0955 1
PATTERN,UPP SIDE COWL.,LH,LWR 56077F 56077-0956 1
PATTERN,UPP SIDE COWL.,RH,FR 56077G 56077-0957 1
PATTERN,UPP SIDE COWL.,RH,RR 56077H 56077-0958 1
PATTERN,UPP SIDE COWL.,RH,LWR 56077I 56077-0959 1
PATTERN,SIDE COWL.,LH,CNT,UPP 56077J 56077-0960 1
PATTERN,SIDE COWL.,LH,CNT,LWR 56077K 56077-0961 1
PATTERN,SIDE COWL.,RH,CNT,UPP 56077L 56077-0962 1
PATTERN,SIDE COWL.,RH,CNT,LWR 56077M 56077-0963 1
PATTERN,TAIL COVER,LH 56077N 56077-0964 1
PATTERN,TAIL COVER,RH 56077O 56077-0965 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
