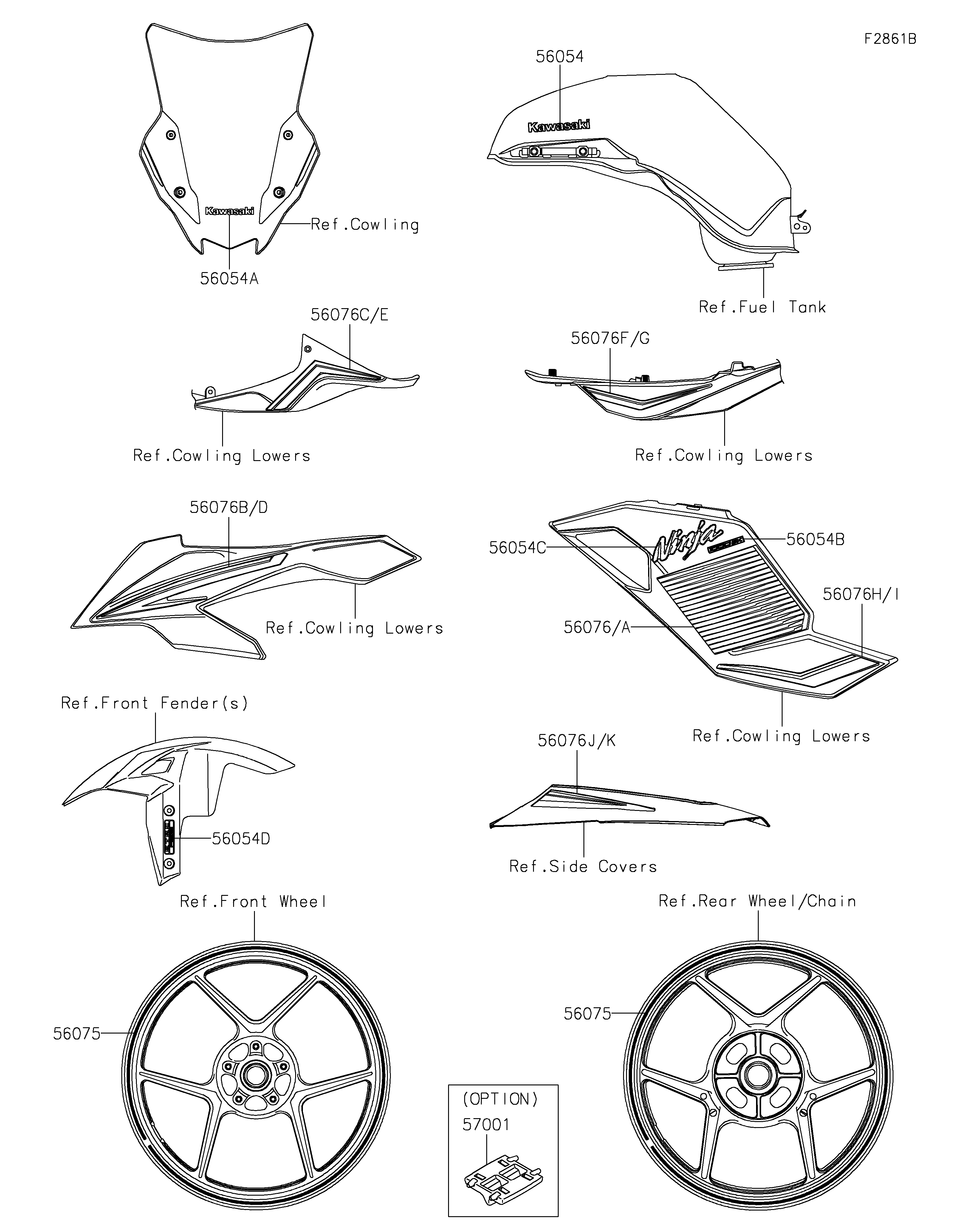

2023 Ninja® 1000SX - Decals(Gray)(KNFAL)(CA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56054 56054-1358 2 CA
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2185 1 CA
MARK,SIDE COWL.,1000SX,3D 56054B 56054-2651 2 CA
MARK,SIDE COWL.,NINJA 56054C 56054-2842 2 CA
MARK,FR FENDER,KTRC ABS 56054D 56054-2997 2 CA
PATTERN,WHEEL,RED,4X1353 56075 56075-2315 4 CA
PATTERN,SIDE COWL.,LH,UPP 56076 56076-3710 1 CA
PATTERN,SIDE COWL.,RH,UPP 56076A 56076-3712 1 CA
PATTERN,UPP SIDE COWL.,LH,FR 56076B 56076-3716 1 CA
PATTERN,UPP SIDE COWL.,LH,RR 56076C 56076-3717 1 CA
PATTERN,UPP SIDE COWL.,RH,FR 56076D 56076-3718 1 CA
PATTERN,UPP SIDE COWL.,RH,RR 56076E 56076-3719 1 CA
PATTERN,MID SIDE COWL.,LH 56076F 56076-3720 1 CA
PATTERN,MID SIDE COWL.,RH 56076G 56076-3721 1 CA
PATTERN,SIDE COWL.,LH,LWR 56076H 56076-3723 1 CA
PATTERN,SIDE COWL.,RH,LWR 56076I 56076-3725 1 CA
PATTERN,TAIL COVER,LH 56076J 56076-3726 1 CA
PATTERN,TAIL COVER,RH 56076K 56076-3727 1 CA
RIM STRIPE APPLICATOR 57001 57001-1752 AR CA
