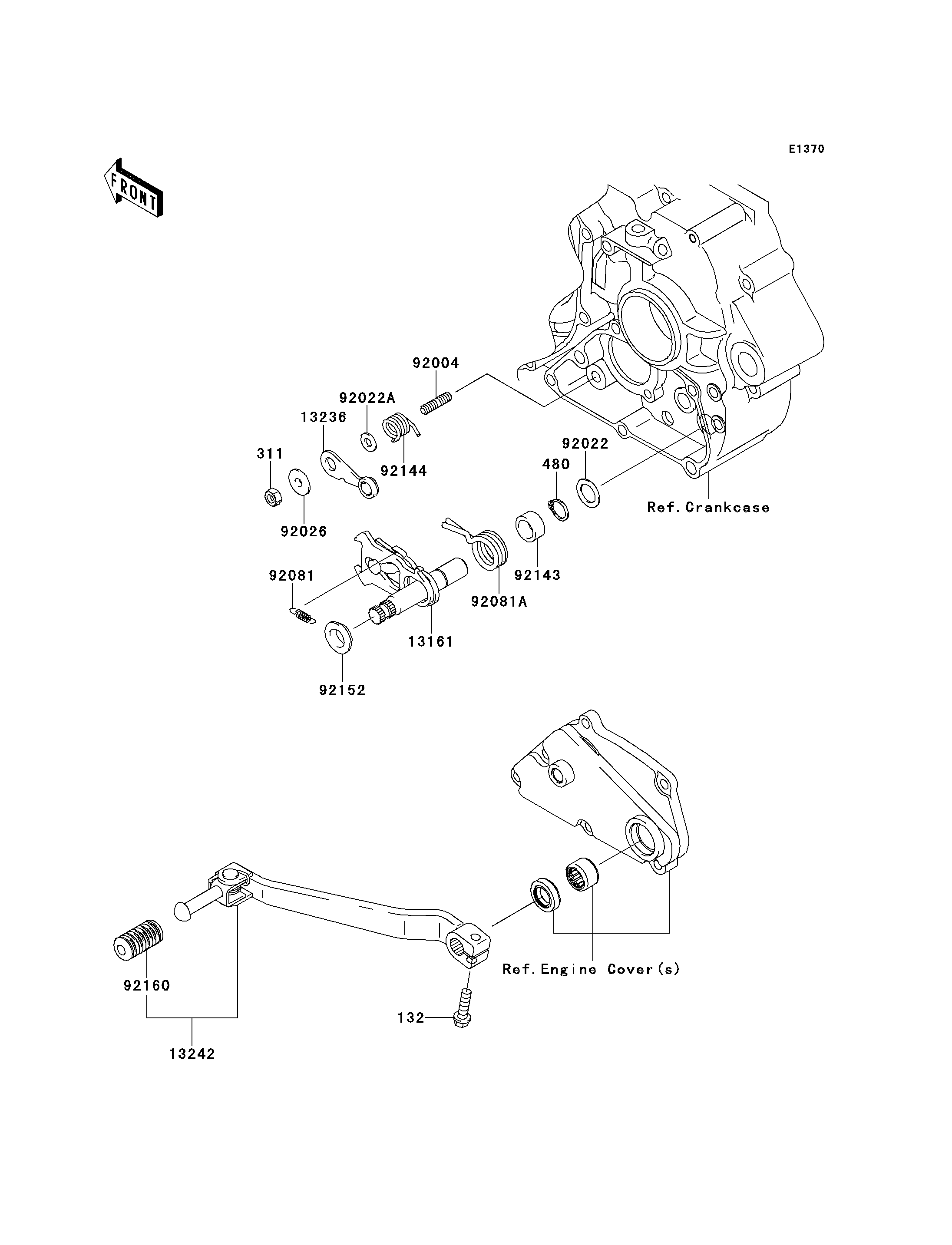

2010 KLX®250SF - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BC0620 | 1 | ||
| NUT-HEX | 311 | 311BA0600 | 1 | ||
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1214 | 1 | ||
| LEVER-COMP,NEUTRAL POSITION | 13236 | 13236-1209 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1380 | 1 | ||
| STUD,6X12 | 92004 | 92004-0032 | 1 | ||
| WASHER,13.3X20X1 | 92022 | 92022-1496 | 1 | ||
| WASHER,6X12.8X1.2 | 92022A | 92022-1827 | 1 | ||
| SPACER | 92026 | 92026-1217 | 1 | ||
| SPRING,CHANGE LEVER | 92081 | 92081-076 | 1 | ||
| SPRING,TENSION | 92081A | 92081-1129 | 1 | ||
| COLLAR | 92143 | 92143-1148 | 1 | ||
| SPRING | 92144 | 92144-1695 | 1 | ||
| COLLAR | 92152 | 92152-1075 | 1 | ||
| DAMPER,CHANGE PEDAL | 92160 | 92160-1108 | 1 |
