Parts Diagrams |

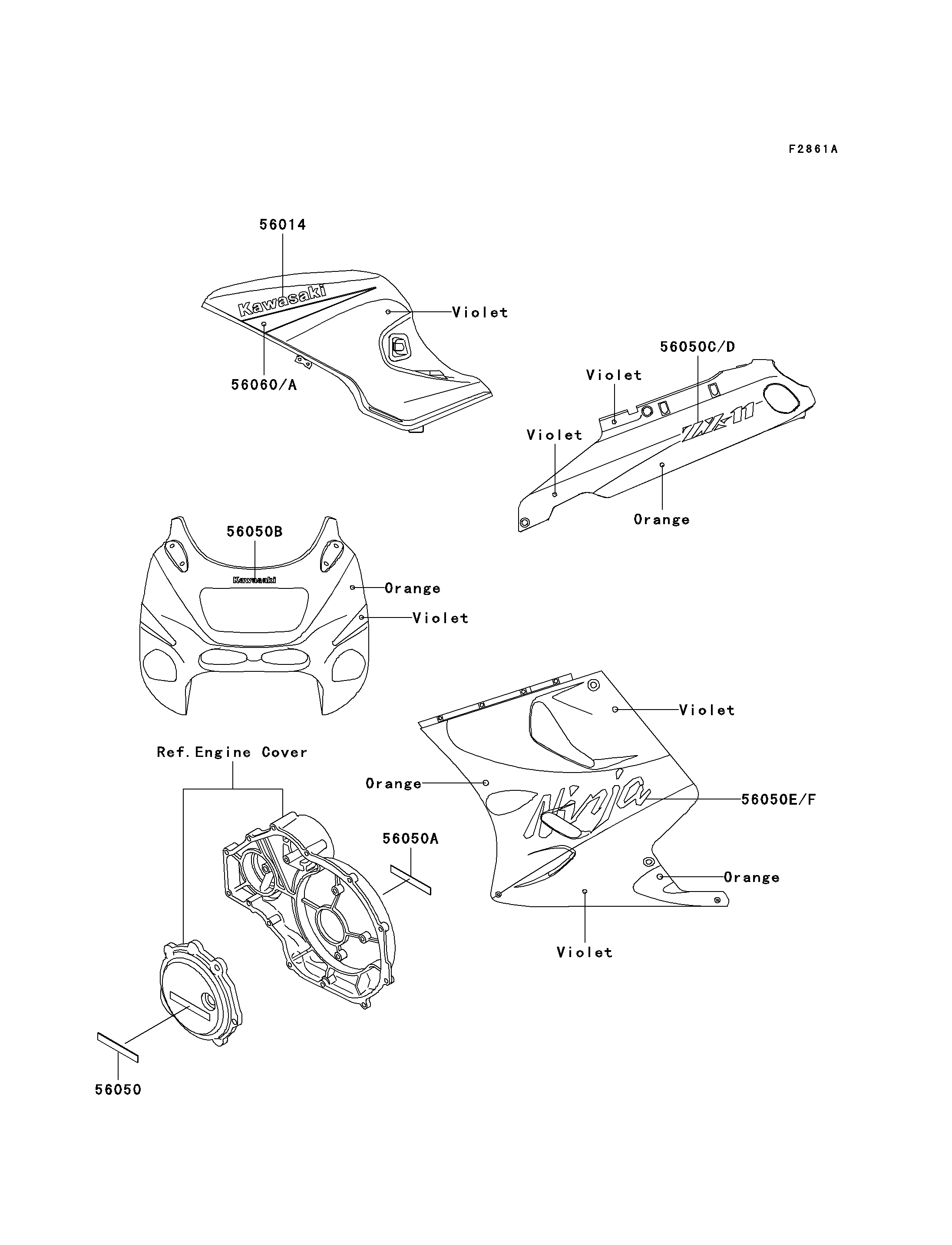

1993 Ninja® ZX™-11 - Decals(Violet/Orange)(ZX1100-D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1282 | 2 | CN | |
| MARK,ENGINE COVER,LH | 56050 | 56050-1094 | 1 | CN | |
| MARK,ENGINE COVER,RH | 56050A | 56050-1095 | 1 | CN | |
| MARK,KAWASAKI | 56050B | 56050-1921 | 1 | CN | |
| MARK,SIDE COVER,LH,ZX-11 | 56050C | 56050-1941 | 1 | CN | |
| MARK,SIDE COVER,RH,ZX-11 | 56050D | 56050-1942 | 1 | CN | |
| MARK,LWR COWLING,LH,NINJA | 56050E | 56050-1943 | 1 | CN | |
| MARK,LWR COWLING,RH,NINJA | 56050F | 56050-1944 | 1 | CN | |
| PATTERN,FUEL TANK,LH | 56060 | 56060-1521 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56060A | 56060-1522 | 1 | CN |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,ENGINE COVER,LH | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,ENGINE COVER,RH | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,LH,ZX-11 | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,RH,ZX-11 | |
| REF # | 56050D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,LH,NINJA | |
| REF # | 56050E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,RH,NINJA | |
| REF # | 56050F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
