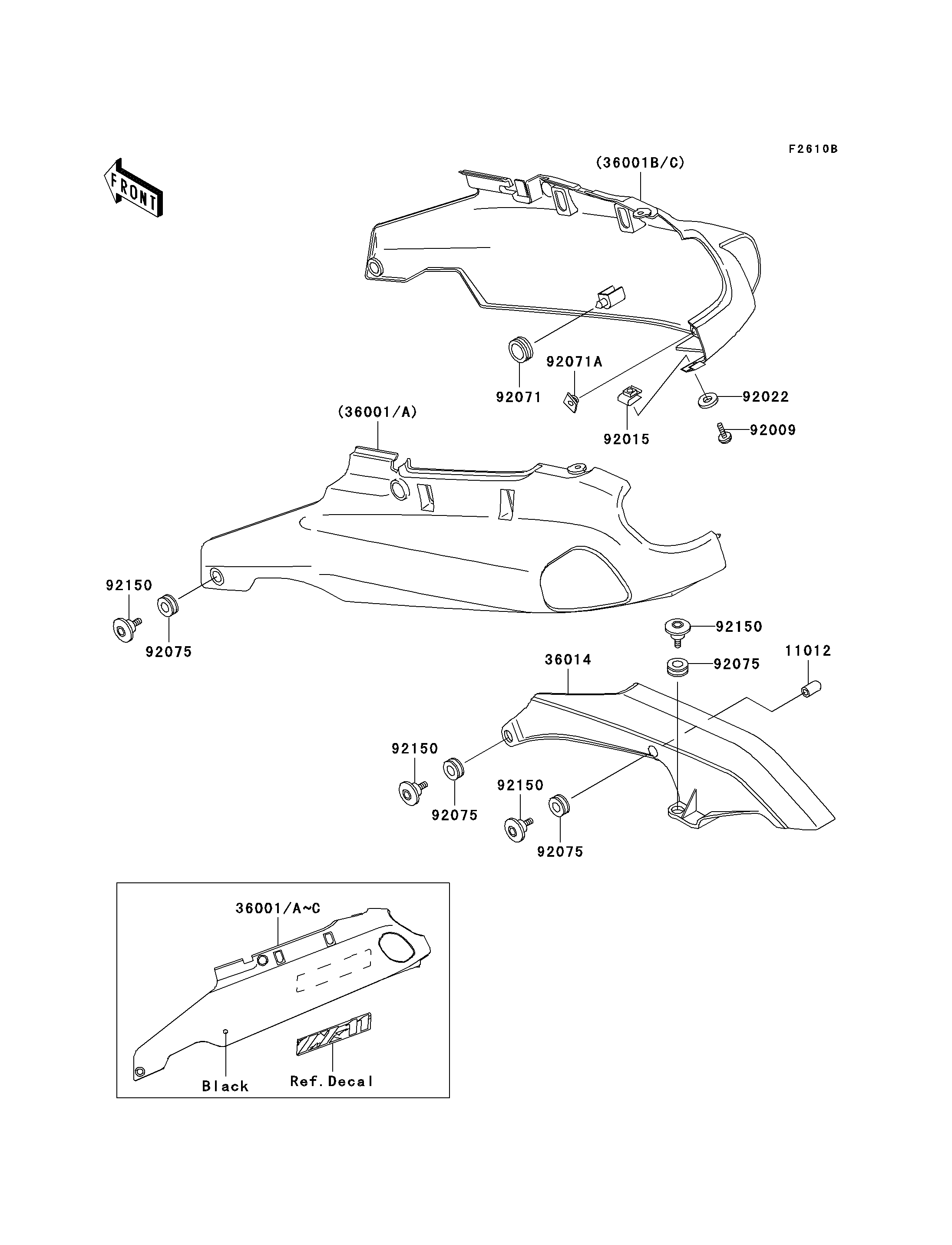

1995 Ninja® ZX™-11 - Side Covers/Chain Cover(ZX1100-D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1438 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1197 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 1 | ||
| NUT,5MM | 92015 | 92015-1798 | 1 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 1 | ||
| GROMMET | 92071 | 92071-1131 | 2 | ||
| GROMMET | 92071A | 92071-1214 | 1 | ||
| DAMPER | 92075 | 92075-1634 | 5 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 5 | ||
| COVER-SIDE,LH,P.P.BLACK MICA | 36001 | 36001-1501-20 | 1 | CN | |
| COVER-SIDE,LH,P.P.BLACK MICA | 36001A | 36001-1501-5M | 1 | CAUS | |
| COVER-SIDE,RH,P.P.BLACK MICA | 36001B | 36001-1502-20 | 1 | CN | |
| COVER-SIDE,RH,P.P.BLACK MICA | 36001C | 36001-1502-5M | 1 | CAUS |
