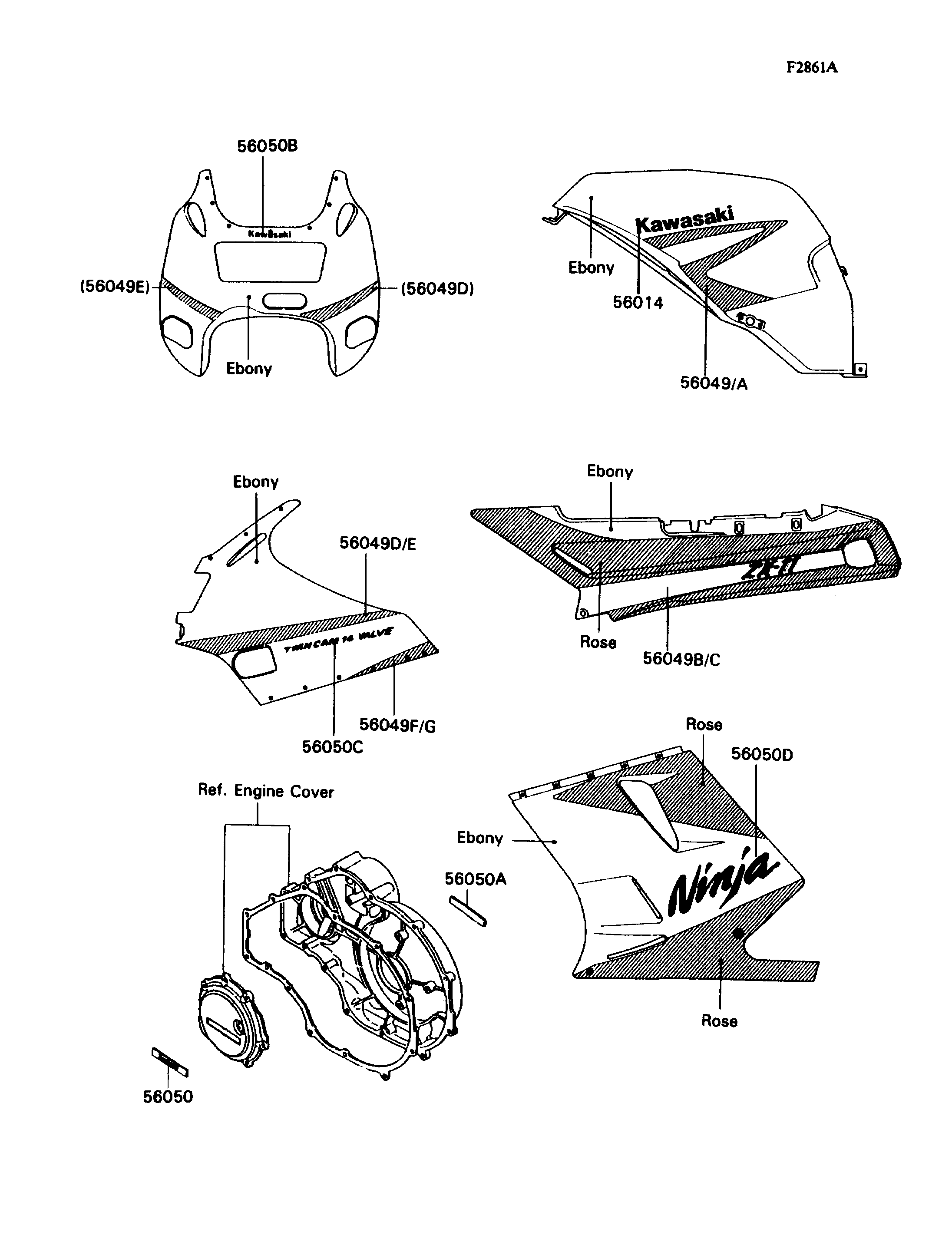

1991 Ninja® ZX™-11 - Decal(Ebony/Rose)(ZX1100-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1254 | 2 | ||
| PATTERN,FUEL TANK,LH | 56049 | 56049-1798 | 1 | ||
| PATTERN,FUEL TANK,RH | 56049A | 56049-1799 | 1 | ||
| PATTERN,SIDE COVER,LH | 56049B | 56049-1800 | 1 | ||
| PATTERN,SIDE COVER,RH | 56049C | 56049-1801 | 1 | ||
| PATTERN,UPP COWLING,UPP,LH | 56049D | 56049-1802 | 1 | ||
| PATTERN,UPP COWLING,UPP,RH | 56049E | 56049-1803 | 1 | ||
| PATTERN,UPP COWLING,LWR,LH | 56049F | 56049-1804 | 1 | ||
| PATTERN,UPP COWLING,LWR,RH | 56049G | 56049-1805 | 1 | ||
| MARK,ENGINE COVER,LH | 56050 | 56050-1094 | 1 | ||
| MARK,ENGINE COVER,RH | 56050A | 56050-1095 | 1 | ||
| MARK,KAWASAKI | 56050B | 56050-1504 | 1 | ||
| MARK,TWIN CAM 16-VALVE | 56050C | 56050-1507 | 2 | ||
| MARK,NINJA | 56050D | 56050-1674 | 2 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56049C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,LH | |
| REF # | 56049D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RH | |
| REF # | 56049E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56049F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56049G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,ENGINE COVER,LH | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,ENGINE COVER,RH | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TWIN CAM 16-VALVE | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
