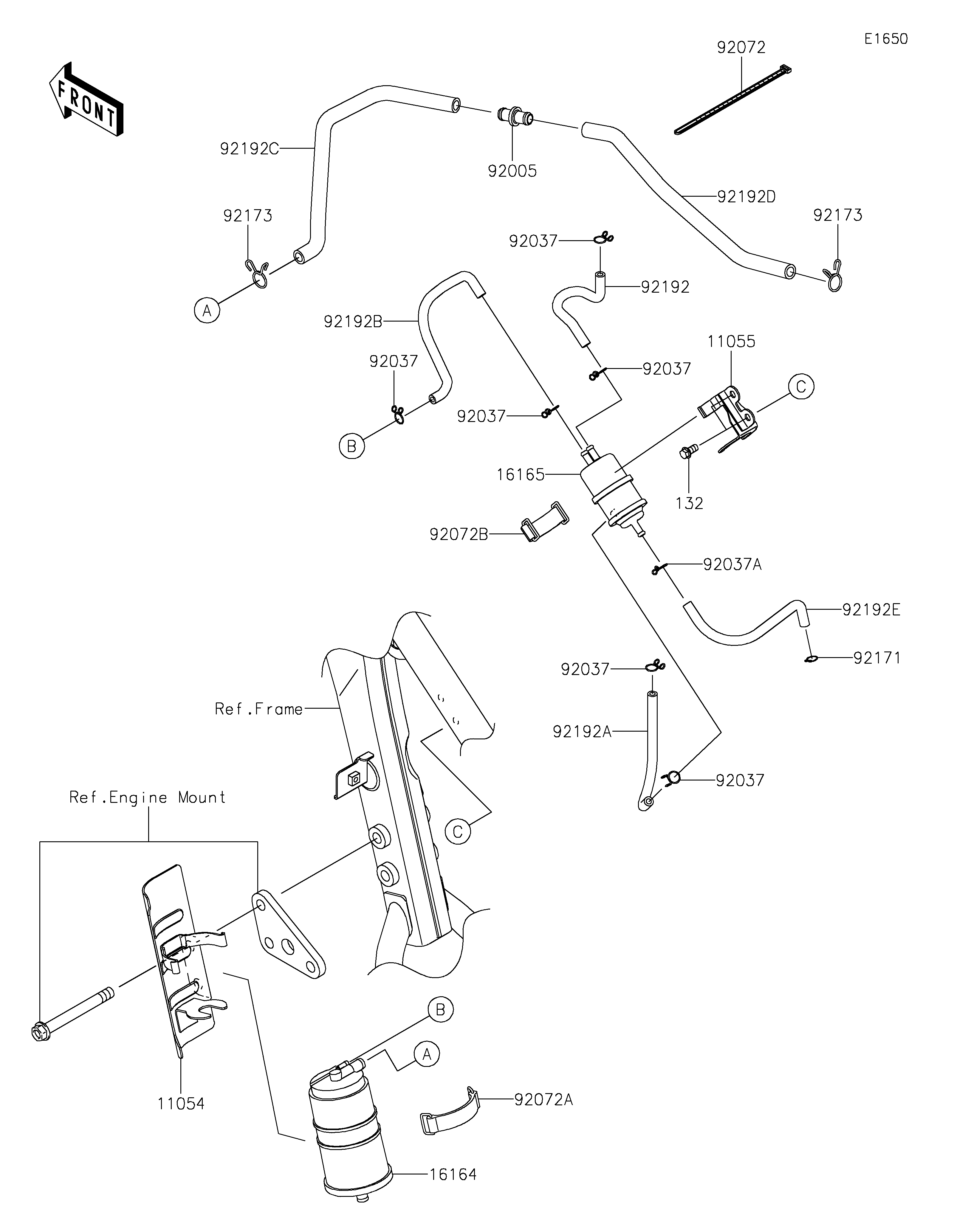

2025 KLX300SM - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11054
11055
16164
16165
92005
92037
92037
92037
92037
92037
92037
92037A
92072
92072A
92072B
92171
92173
92173
92192
92192A
92192B
92192C
92192D
92192E
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CANISTER 11054 11054-1638 1 _________________________________________CA
BRACKET,SEPARATOR 11055 11055-1149 1 _________________________________________CA
CANISTER 16164 16164-0022 1 _________________________________________CA
SEPARATOR 16165 16165-1001 1 _________________________________________CA
FITTING 92005 92005-1379 1 _________________________________________CA
CLAMP,TUBE 92037 92037-147 6 _________________________________________CA
CLAMP 92037A 92037-1712 1 _________________________________________CA
BAND,L=250 92072 92072-1237 1 _________________________________________CA
BAND,TOOL,L=82 92072A 92072-1294 1 _________________________________________CA
BAND,L=50 92072B 92072-1419 1 _________________________________________CA
CLAMP 92171 92171-0573 1 _________________________________________CA
CLAMP,14MM 92173 92173-0192 2 _________________________________________CA
TUBE,TANK-SEPARATOR,BLUE 92192 92192-0722 1 _________________________________________CA
TUBE,SEPARATOR-TANK,RED 92192A 92192-0723 1 _________________________________________CA
TUBE,SEPARATOR-CANISTER,BLUE 92192B 92192-0724 1 _________________________________________CA
TUBE,CANISTER-FITTING,GRN/WHT 92192C 92192-0725 1 _________________________________________CA
TUBE,FITTING-A/C,GRN/WHT 92192D 92192-0726 1 _________________________________________CA
TUBE,THROBO-SEPARATOR,WHITE 92192E 92192-0787 1 _________________________________________CA
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2 _________________________________________CA
