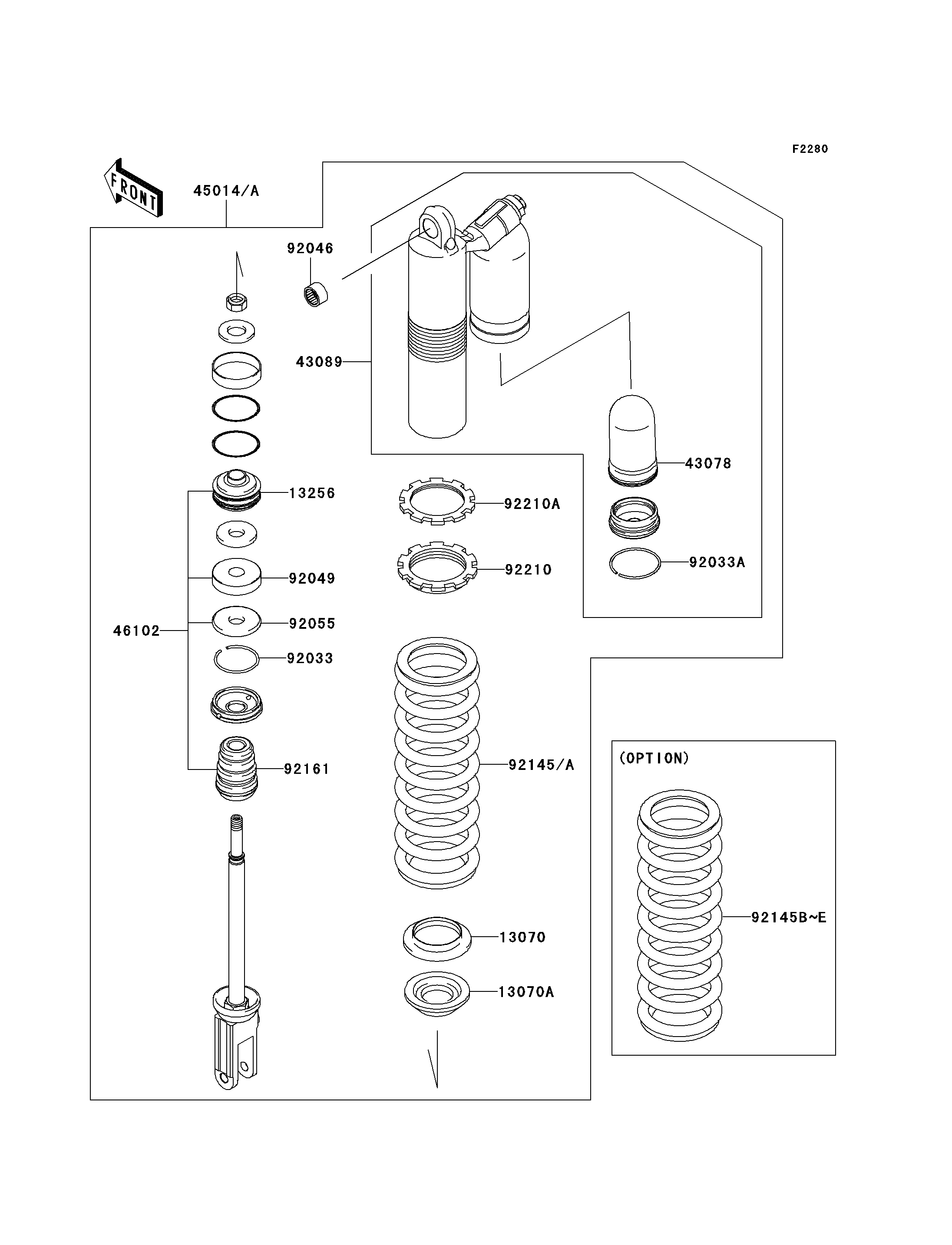

2009 KX™450F - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
13070
13070A
13256
43078
43089
45014A
46102
92033
92033A
92046
92049
92055
92145A
92145C
92145E
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,SPRING 13070 13070-0095 1
GUIDE,SPRING 13070A 13070-0101 1
PISTON,SHOCKABSORBER 13256 13256-0005 1
RESERVOIR,SHOCKABSORBER 43078 43078-0059 1
CYLINDER-SHOCKABSORBER 43089 43089-0019 1
SHOCKABSORBER,L.GREEN 45014A 45014-0266-710 1
ROD,PISTON 46102 46102-0134 1
RING-SNAP 92033 92033-0044 1
RING-SNAP 92033A 92033-0059 1
BEARING-NEEDLE,7E-HVS16X22X12 92046 92046-1301 1
SEAL-OIL 92049 92049-0116 1
RING-O 92055 92055-0165 1
SPRING,SHOCK,K=52N/MM,L.GREEN 92145A 92145-0638-710 1
SPRING,SHOCK,K=50N/MM,L.GREEN 92145C 92145-0715-710 1 (OPTION)
SPRING,SHOCK,K=54N/MM,L.GREEN 92145E 92145-0716-710 1 (OPTION)
DAMPER,SHOCKABSORBER 92161 92161-1172 1
NUT,SPRING ADJUST 92210 92210-0494 1
NUT,SPRING ADJUST LOCK 92210A 92210-0495 1
