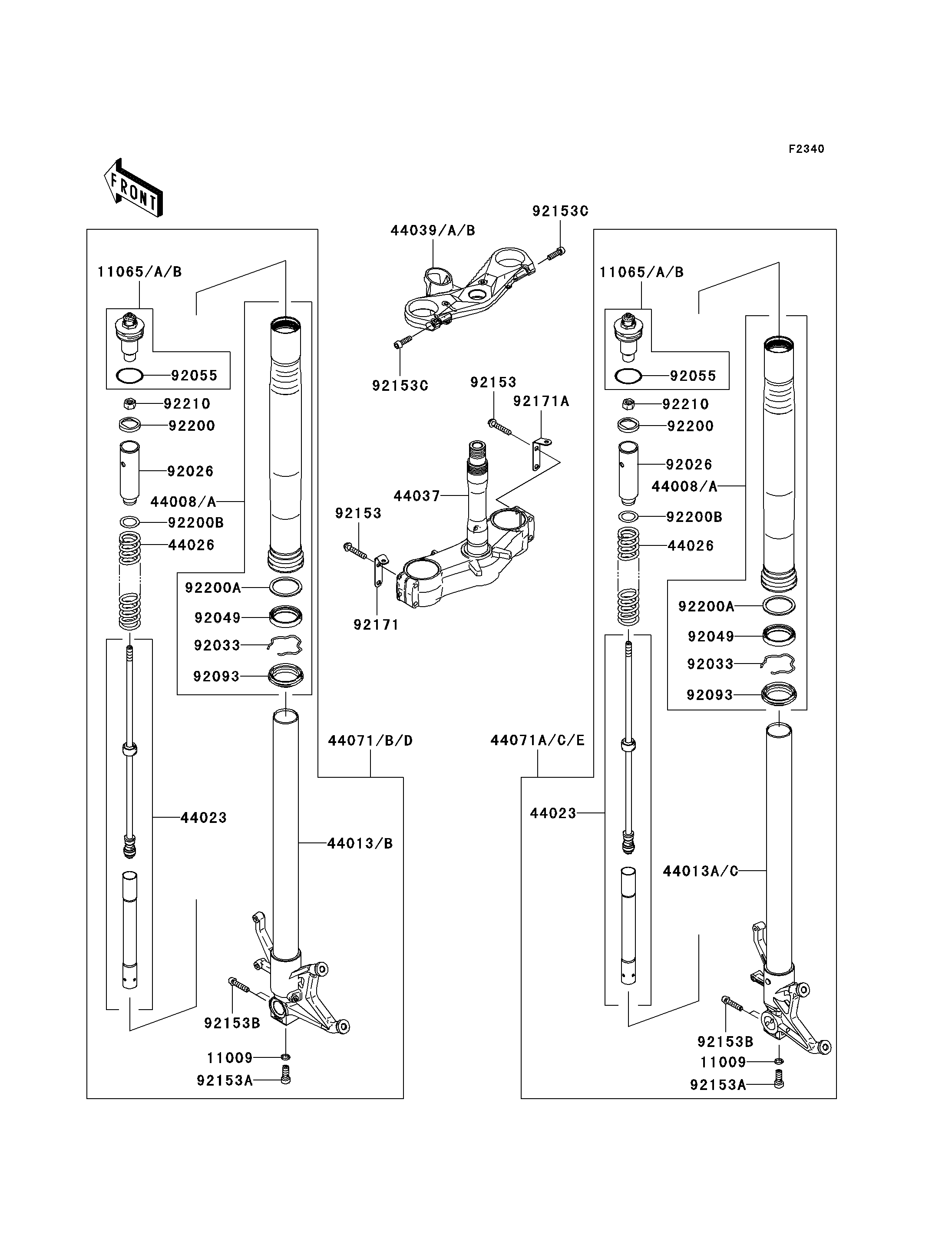

2007 Ninja® ZX™-10R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11065B
11065B
44008A
44008A
44013B
44013C
44023
44023
44026
44026
44037
44039B
44071D
44071E
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92171
92171A
92200
92200
92200A
92200A
92200B
92200B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,PIPE-COMP-SUSP 11009 11009-1325 2
CAP 11065B 11065-0176 2
PIPE-FORK OUTER 44008A 44008-0027 2
PIPE-FORK INNER,LH 44013B 44013-0081 1
PIPE-FORK INNER,RH 44013C 44013-0082 1
CYLINDER-SET-FORK 44023 44023-0045 2
SPRING-FRONT FORK 44026 44026-0094 2
HOLDER-FORK UNDER 44037 44037-0035 1
HOLDER-FORK UPPER 44039B 44039-0053 1
DAMPER-ASSY,FORK,LH 44071D 44071-0402 1
DAMPER-ASSY,FORK,RH 44071E 44071-0403 1
SPACER,FORK 92026 92026-0045 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-0072 2
RING-O,FORK,AIR TUBE 92055 92055-1333 2
SEAL,DUST 92093 92093-0058 2
BOLT,FLANGED,8X40 92153 92153-0484 4
BOLT,SOCKET,10X25 92153A 92153-0548 2
BOLT,SOCKET,8X35 92153B 92153-1228 4
BOLT,SOCKET,8X25 92153C 92153-1642 2
CLAMP,LH 92171 92171-0560 1
CLAMP,RH 92171A 92171-0561 1
WASHER 92200 92200-0085 2
WASHER 92200A 92200-0204 2
WASHER 92200B 92200-0272 2
NUT 92210 92210-0100 2
