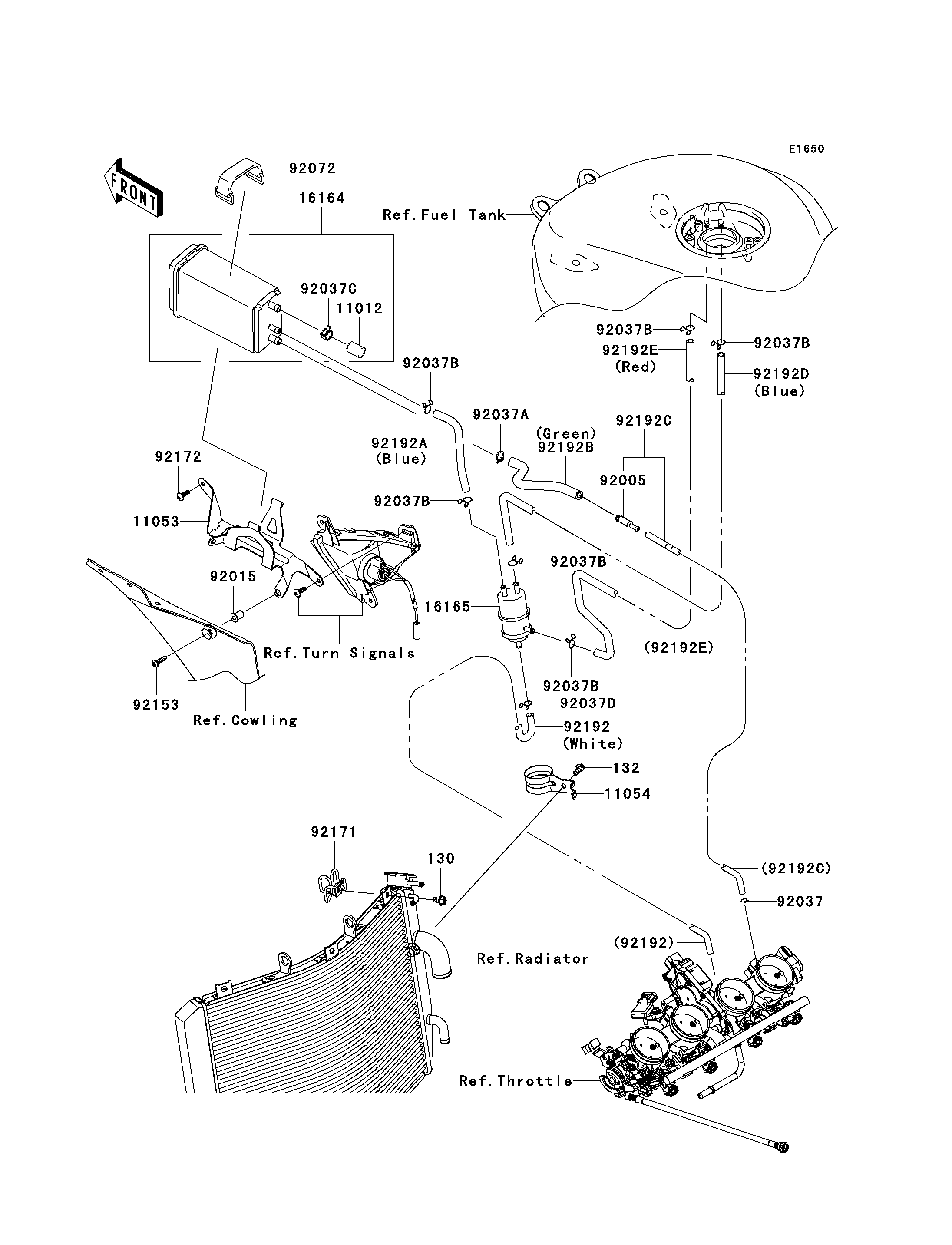

2007 Ninja® ZX™-10R - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET,CANISTER | 11053 | 11053-1916 | 1 | CA | |
| BRACKET,SEPARATOR | 11054 | 11054-0012 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING | 92005 | 92005-0032 | 1 | CA | |
| NUT,WELL,5MM | 92015 | 92015-1757 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-010 | 1 | CA | |
| CLAMP,HOSE | 92037A | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037B | 92037-147 | 6 | CA | |
| CLAMP,CANISTER | 92037C | 92037-1512 | 1 | CA | |
| CLAMP | 92037D | 92037-1712 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| BOLT,SOCKET,5X20 | 92153 | 92153-0873 | 1 | CA | |
| CLAMP | 92171 | 92171-0565 | 1 | CA | |
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 1 | CA | |
| TUBE,SEP.-THROBO,WHITE | 92192 | 92192-0278 | 1 | CA | |
| TUBE,SEP.-CANISTER,BLUE | 92192A | 92192-0279 | 1 | CA | |
| TUBE,CANISTER-FITTING,GREEN | 92192B | 92192-0280 | 1 | CA | |
| TUBE,FITTING-THROBO,GREEN TAPE | 92192C | 92192-0281 | 1 | CA | |
| TUBE,SEP.-TANK,BLUE | 92192D | 92192-0313 | 1 | CA | |
| TUBE,SEP.-TANK,RED | 92192E | 92192-0314 | 1 | CA | |
| BOLT-FLANGED,6X10 | 130 | 130L0610 | 1 | CA | |
| BOLT-FLANGED-SMALL,6X14 | 132 | 132L0614 | 1 | CA |
