Parts Diagrams |

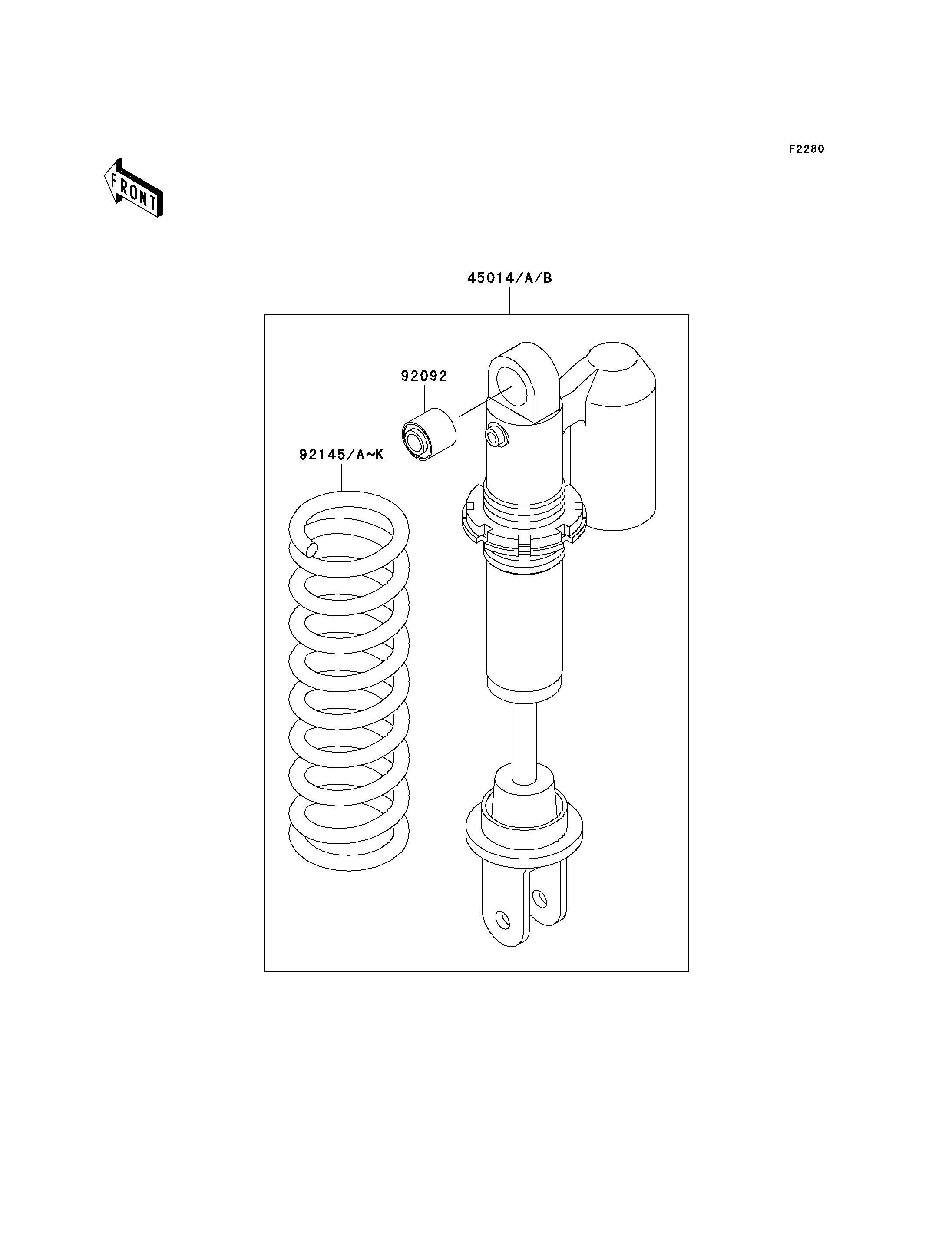

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCKABSORBER,L.GREEN | 45014A | 45014-0120-710 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-1078 | 1 | ||
| SPRING,SHOCK,K=44.1N/MM,GREEN | 92145A | 92145-1474-710 | 1 | (OPTION) | |
| SPRING,SHOCK,K=46.1N/MM,GREEN | 92145D | 92145-1475-710 | 1 | (OPTION) | |
| SPRING,SHOCK,K=48.1N/MM,GREEN | 92145G | 92145-1476-710 | 1 | ||
| SPRING,SHOCK,K=50.0N/MM,GREEN | 92145J | 92145-1477-710 | 1 | (OPTION) |
| SHOCKABSORBER,L.GREEN | |
| REF # | 45014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCK,K=44.1N/MM,GREEN | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCK,K=46.1N/MM,GREEN | |
| REF # | 92145D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCK,K=48.1N/MM,GREEN | |
| REF # | 92145G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCK,K=50.0N/MM,GREEN | |
| REF # | 92145J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
