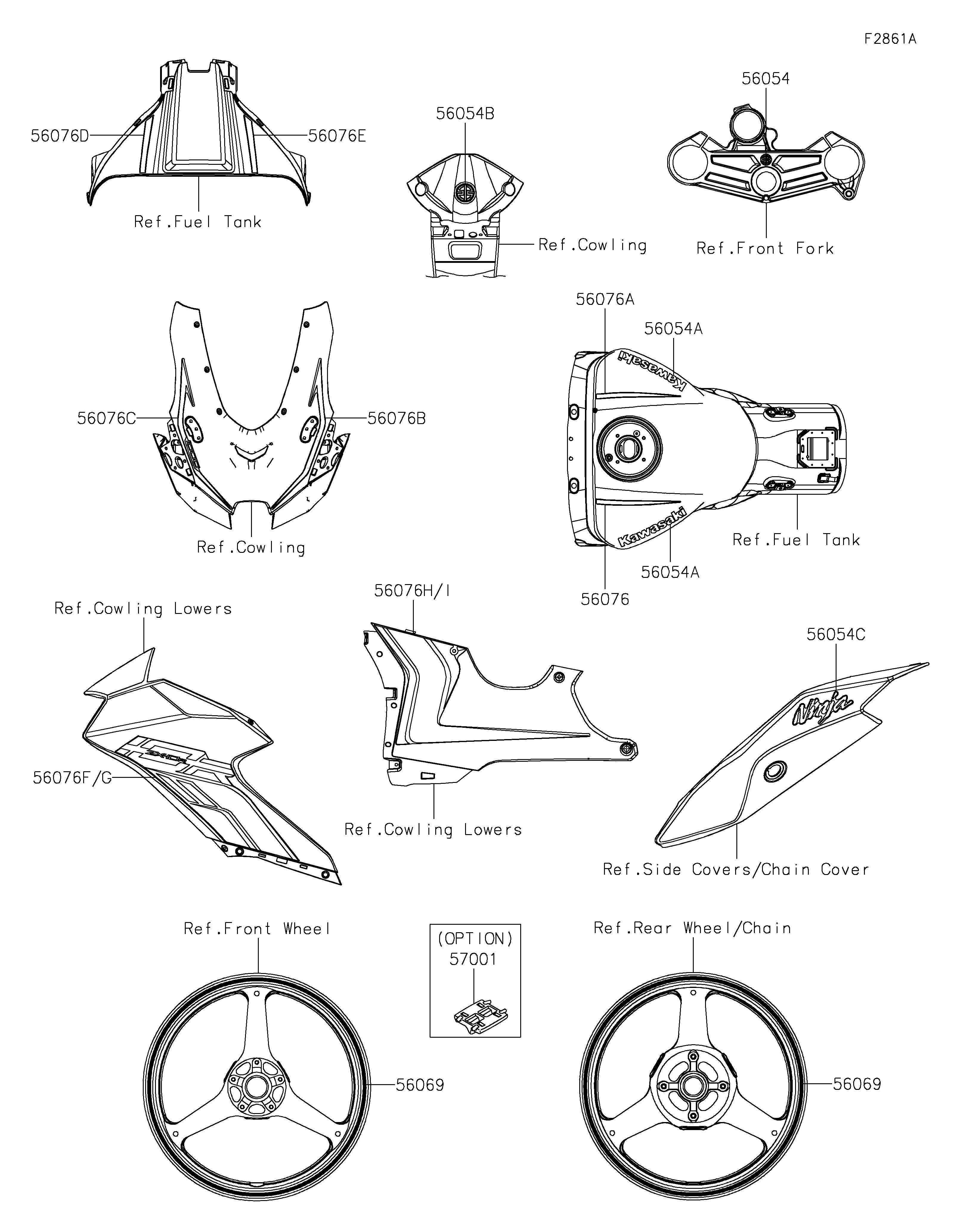

2023 Ninja® ZX-10R ABS KRT Edition - Decals(Gray)(LNFAN/LNFAL)
56054
56054A
56054A
56054B
56054C
56069
56069
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP HOLDER,RIVER | 56054 | 56054-1628 | 1 | ||
| MARK,FUEL TANK,KAWASAKI | 56054A | 56054-2424 | 2 | ||
| MARK,UPP COWL.,RIVER | 56054B | 56054-2900 | 1 | ||
| MARK,TAIL COVER,NINJA | 56054C | 56054-2988 | 2 | ||
| PATTERN,RR WHEEL,RED | 56069 | 56069-1663 | 4 | ||
| PATTERN,FUEL TANK,LH | 56076 | 56076-3942 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076A | 56076-3943 | 1 | ||
| PATTERN,UPP COWL.,LH | 56076B | 56076-3944 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076C | 56076-3945 | 1 | ||
| PATTERN,TANK COVER,LH | 56076D | 56076-3946 | 1 | ||
| PATTERN,TANK COVER,RH | 56076E | 56076-3947 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56076F | 56076-3948 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56076G | 56076-3949 | 1 | ||
| PATTERN,LWR,COWL.,LH | 56076H | 56076-3950 | 1 | ||
| PATTERN,LWR,COWL.,RH | 56076I | 56076-3951 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
