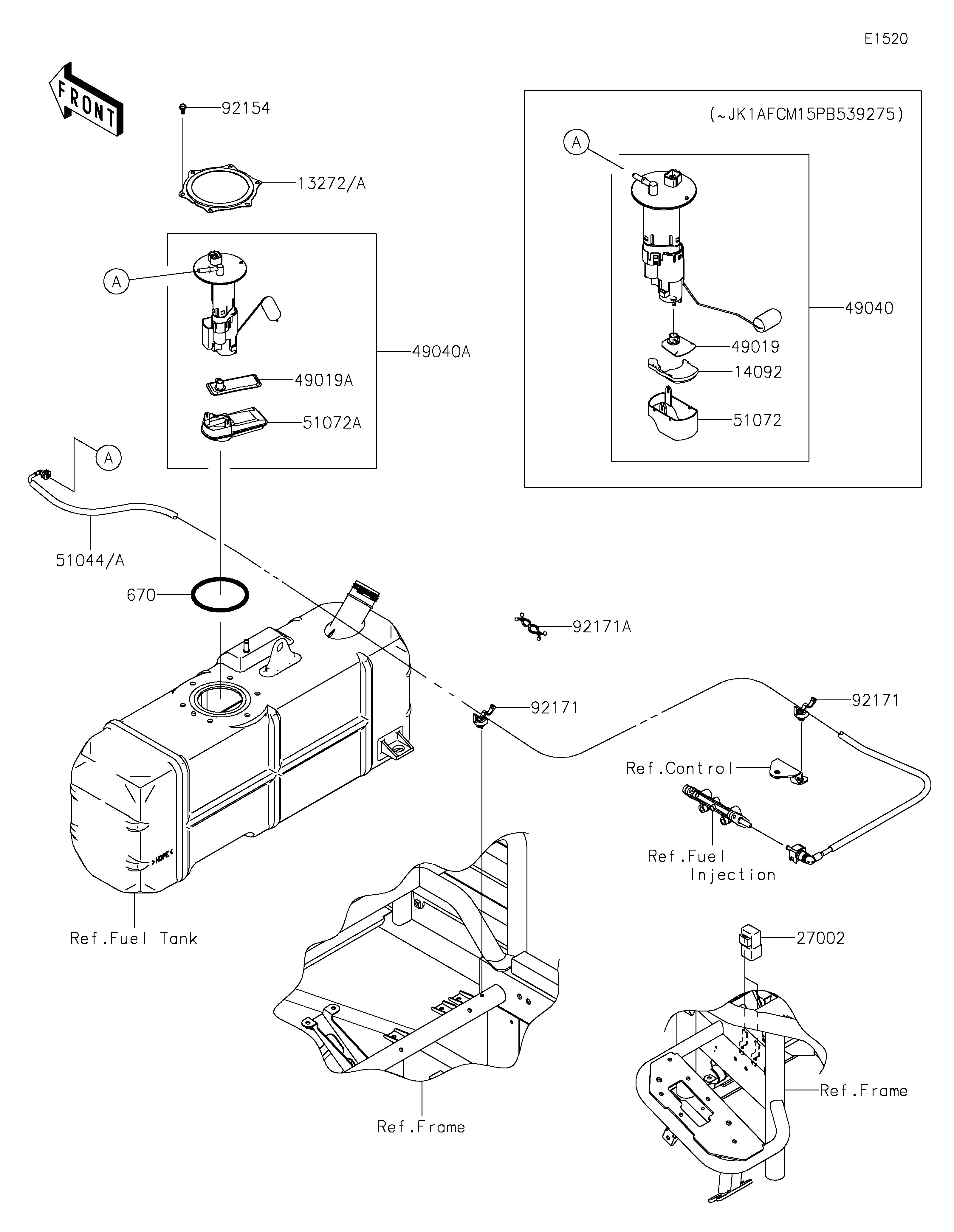

Parts Diagrams |
13272
13272A
14092
27002
49019
49019A
49040
49040A
51044
51044A
51072
51072A
92154
92171
92171
92171A
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE | 13272 | 13272-2501 | 1 | ( - JK1AFCM15PB539275) | |
| PLATE | 13272A | 13272-4226 | 1 | (JK1AFCM15PB539276 - ) | |
| COVER | 14092 | 14092-1044 | 1 | ( - JK1AFCM15PB539275) | |
| RELAY-ASSY | 27002 | 27002-1088 | 2 | ||
| FILTER-FUEL | 49019 | 49019-0013 | 1 | ( - JK1AFCM15PB539275) | |
| FILTER-FUEL | 49019A | 49019-0034 | 1 | (JK1AFCM15PB539276 - ) | |
| PUMP-FUEL | 49040 | 49040-0718 | 1 | ( - JK1AFCM15PB539275) | |
| PUMP-FUEL | 49040A | 49040-0830 | 1 | (JK1AFCM15PB539276 - ) | |
| TUBE-ASSY,FUEL | 51044 | 51044-0926 | 1 | ( - JK1AFCM15PB539275) | |
| TUBE-ASSY,FUEL | 51044A | 51044-1256 | 1 | (JK1AFCM15PB539276 - ) | |
| CHAMBER-FUEL | 51072 | 51072-0003 | 1 | ( - JK1AFCM15PB539275) | |
| CHAMBER-FUEL | 51072A | 51072-0008 | 1 | (JK1AFCM15PB539276 - ) | |
| BOLT,FUEL PUMP | 92154 | 92154-1326 | 6 | ||
| CLAMP | 92171 | 92171-0453 | 2 | ||
| CLAMP | 92171A | 92171-0476 | 1 | ||
| O RING | 670 | 670E5090 | 1 |
