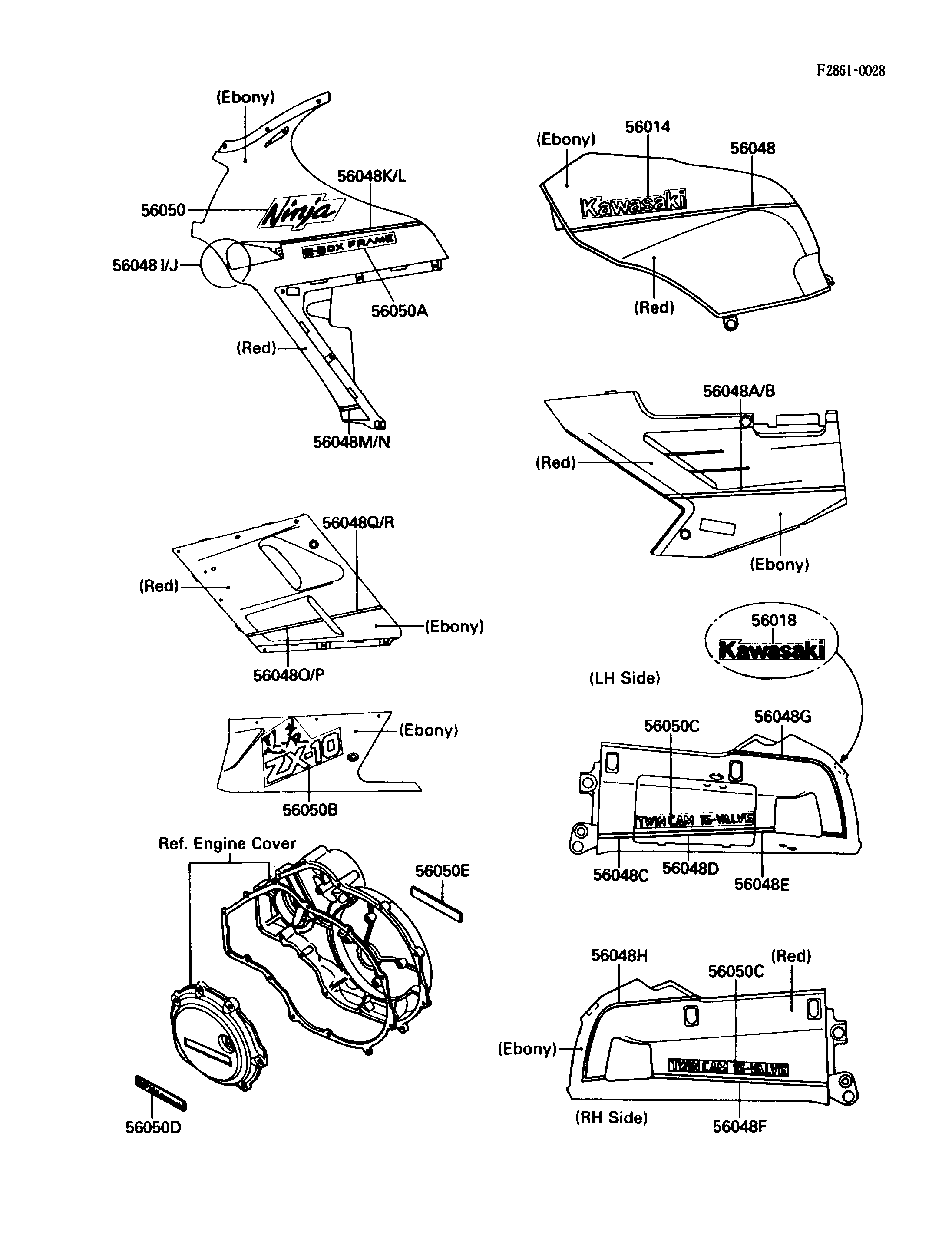

1988 NINJA® ZX-10 - Decals(Ebony/Red)(ZX1000-B1)

DOWNLOAD PDF
SELECT A NEW PART
56014
56018
56048
56048A
56048B
56048C
56048D
56048E
56048F
56048G
56048H
56048I
56048J
56048K
56048L
56048M
56048N
56048O
56048P
56048Q
56048R
56050
56050A
56050B
56050C
56050C
56050D
56050E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1215 2
MARK,KAWASAKI 56018 56018-1675 1
PATTERN,FUEL TANK 56048 56048-1116 1
PATTERN,SIDE COVER,LH 56048A 56048-1117 1
PATTERN,SIDE COVER,RH 56048B 56048-1118 1
PATTERN,SEAT COVER,FR,FR,LH 56048C 56048-1119 1
PATTERN,TOOL BOX COVER,LH 56048D 56048-1120 1
PATTERN,SEAT COVER,FR,RR,LH 56048E 56048-1121 1
PATTERN,SEAT COVER,FR,RH 56048F 56048-1122 1
PATTERN,SEAT COVER,RR,LH 56048G 56048-1123 1
PATTERN,SEAT COVER,RR,RH 56048H 56048-1124 1
PATTERN,UPP COWLING,UPP,FR,LH 56048I 56048-1125 1
PATTERN,UPP COWLING,UPP,FR,RH 56048J 56048-1126 1
PATTERN,UPP COWLING,UPP,RR,LH 56048K 56048-1127 1
PATTERN,UPP COWLING,UPP,RR,RH 56048L 56048-1128 1
PATTERN,UPP COWLING,LWR,LH 56048M 56048-1129 1
PATTERN,UPP COWLING,LWR,RH 56048N 56048-1130 1
PATTERN,CNT COWLING,FR,LH 56048O 56048-1131 1
PATTERN,CNT COWLING,FR,RH 56048P 56048-1132 1
PATTERN,CNT COWLING,RR,LH 56048Q 56048-1133 1
PATTERN,CNT COWLING,RR,RH 56048R 56048-1134 1
MARK,NINJA 56050 56050-1090 2
MARK,E-BOX FRAME 56050A 56050-1091 2
MARK,NINJA/ZX-10 56050B 56050-1092 2
MARK,TWIN CAM 16-VALVE 56050C 56050-1093 2
MARK,ENGINE COVER,LH 56050D 56050-1094 1
MARK,ENGINE COVER,RH 56050E 56050-1095 1
