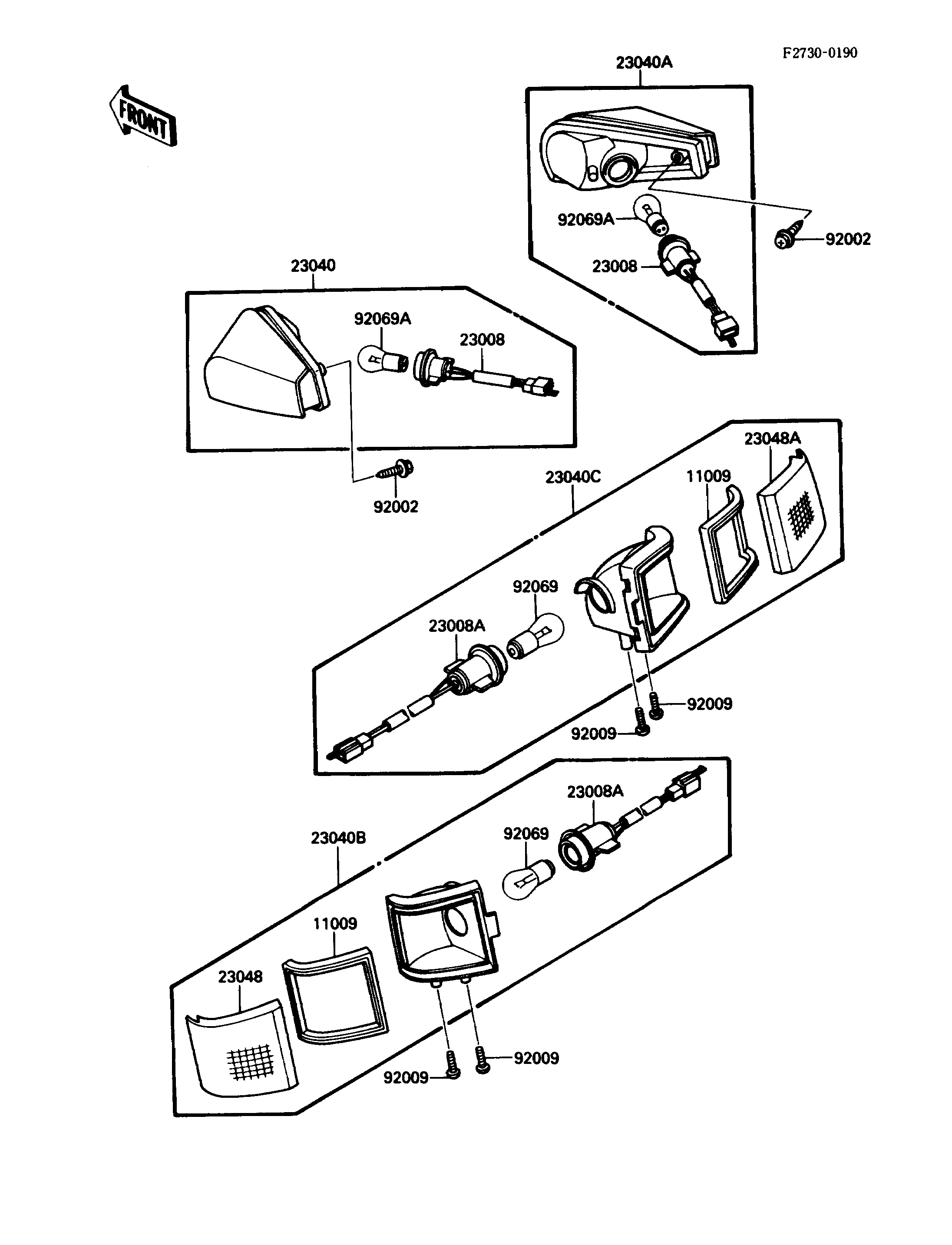

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP LENS | 11009 | 11009-1747 | 2 | ||
| SOCKET-ASSY,SIGNAL LAMP,FR | 23008 | 23008-1262 | 2 | ||
| SOCKET-ASSY,SIGNAL LAMP,RR | 23008A | 23008-1263 | 2 | ||
| LAMP-SIGNAL,FR,LH | 23040 | 23040-1185 | 1 | ||
| LAMP-SIGNAL,FR,RH | 23040A | 23040-1186 | 1 | ||
| LAMP-SIGNAL,RR,LH | 23040B | 23040-1187 | 1 | ||
| LAMP-SIGNAL,RR,RH | 23040C | 23040-1188 | 1 | ||
| LENS-SIGNAL LAMP,RR,LH | 23048 | 23048-1091 | 1 | ||
| LENS-SIGNAL LAMP,RR,RH | 23048A | 23048-1092 | 1 | ||
| BOLT,TAPPING,5X16 | 92002 | 92002-1921 | 2 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 4 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
| BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 |
