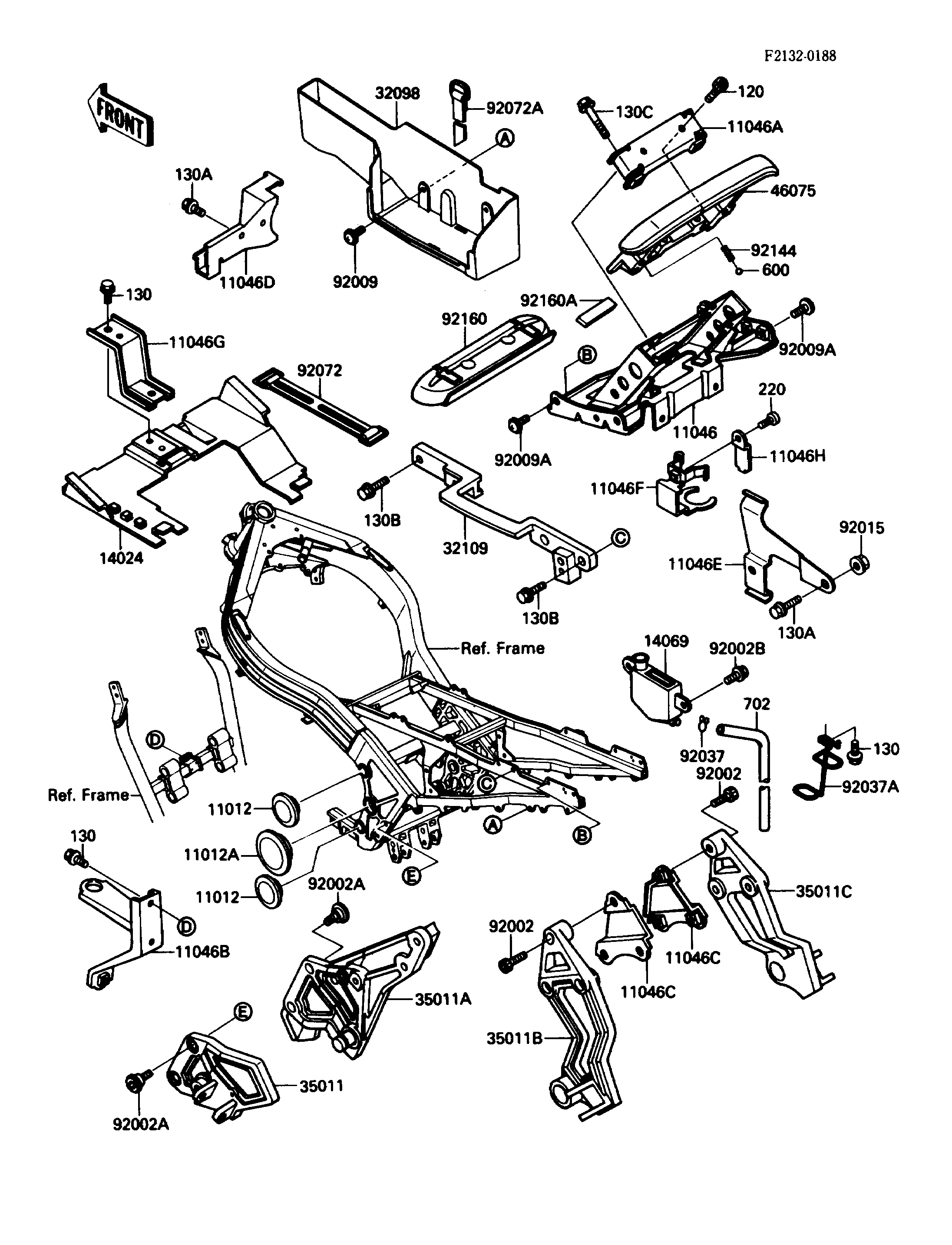

1989 Ninja® ZX™-10 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
130
130
130
130
11012
11012
11012
11012
11012A
11012A
11046
11046
11046A
11046A
11046B
11046B
11046C
11046C
11046C
11046C
11046D
11046D
11046G
11046G
14024
14024
14069
14069
32098
32098
32109
32109
35011
35011
35011A
35011A
35011B
35011B
35011C
35011C
46075
46075
92002
92002
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92009
92009
92009A
92009A
92009A
92009A
92037
92037
92037A
92037A
92072
92072
92072A
92072A
92144
92144
92160
92160
92160A
92160A
130B
130B
130B
130B
130C
130C
600
600
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0814 2
BOLT-FLANGED 130 130J0610 5
CAP 11012 11012-1460 4
CAP 11012A 11012-1657 2
BRACKET,TAIL GRIP 11046 11046-1239 1
BRACKET,TAIL GRIP 11046A 11046-1240 1
BRACKET,OIL COOLER 11046B 11046-1260 1
BRACKET,MUFFLER STAY 11046C 11046-1261 2
BRACKET,FUEL PUMP 11046D 11046-1262 1
BRACKET,BATTERY CASE 11046G 11046-1369 1
COVER,RR 14024 14024-1693 1
BREATHER 14069 14069-1054 1
CASE-TOOL 32098 32098-1081 1
GRIP-FRAME,LH 32109 32109-1171 1
STAY,STEP HOLDER,LH,SILVER 35011 35011-1416-CE 1
STAY,STEP HOLDER,RH,SILVER 35011A 35011-1417-CE 1
STAY,MUFFLER,LH,SILVER NO.25 35011B 35011-1425-CE 1
STAY,MUFFLER,RH,SILVER NO.25 35011C 35011-1426-CE 1
GRIP,TAIL,BLACK 46075 46075-1076-10 1
BOLT,SOCKET,8X22 92002 92002-1334 6
BOLT,SOCKET,8X20 92002A 92002-1493 4
BOLT,6X12 92002B 92002-1884 2
SCREW,6X18,BLACK 92009 92009-1181 2
SCREW,8X16 92009A 92009-1556 4
CLAMP,TUBE 92037 92037-147 1
CLAMP,HOSE 92037A 92037-1875 1
BAND,L=146.9 92072 92072-054 1
BAND,L=300 92072A 92072-1235 1
SPRING 92144 92144-3708 2
DAMPER,TAIL GRIP 92160 92160-1054 1
DAMPER 92160A 92160-1099 1
BOLT-FLANGED,8X20 130B 130J0820 2
BOLT-FLANGED,8X40 130C 130J0840 2
BALL-STEEL,1/4" 600 600A0800 2
TUBE-RUBBER,7X10X380 702 702A07380 1
BOLT-FLANGED,6X16,BLACK 130A 130J0616 2 CNUS
BOLT-FLANGED,6X16,BLACK 130A 130J0616 3 CA
BRACKET,CANISTER 11046E 11046-1277 1 CA
BRACKET,SEPARATOR 11046F 11046-1278 1 CA
BRACKET,SEPARATOR 11046H 11046-1372 1 CA
NUT,FLANGED,6MM 92015 92015-1367 1 CA
SCREW-PAN-CROS 220 220C0510 1 CA
