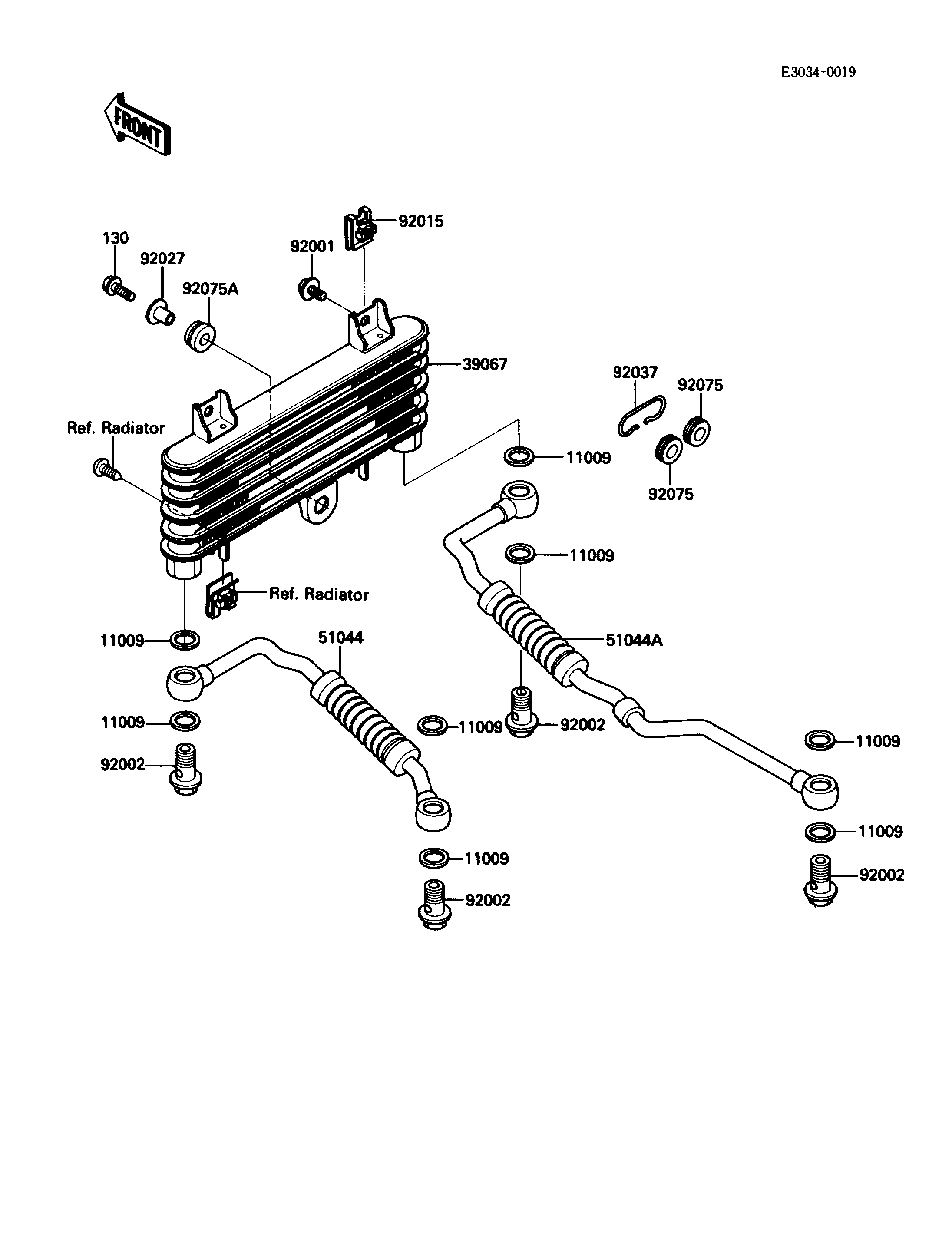

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
11009
11009
11009
11009
11009
11009
11009
11009
39067
51044
51044A
92001
92002
92002
92002
92002
92015
92027
92037
92075
92075
92075A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0620 | 1 | ||
| GASKET,14X19.5X1.4 | 11009 | 11009-1461 | 8 | ||
| COOLER-OIL | 39067 | 39067-1051 | 1 | ||
| TUBE-ASSY,LH | 51044 | 51044-1091 | 1 | ||
| TUBE-ASSY,RH | 51044A | 51044-1092 | 1 | ||
| BOLT | 92001 | 92001-1825 | 2 | ||
| BOLT,14X28.5 | 92002 | 92001-1930 | 4 | ||
| NUT | 92015 | 92015-1487 | 2 | ||
| COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 1 | ||
| CLAMP,OIL COOLER | 92037 | 92037-1905 | 1 | ||
| DAMPER,OIL COOLER | 92075 | 92075-1942 | 2 | ||
| DAMPER | 92075A | 92075-277 | 1 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,14X19.5X1.4 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COOLER-OIL | |
| REF # | 39067 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,LH | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,RH | |
| REF # | 51044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,14X28.5 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FLANGED,L=12.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,OIL COOLER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,OIL COOLER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
