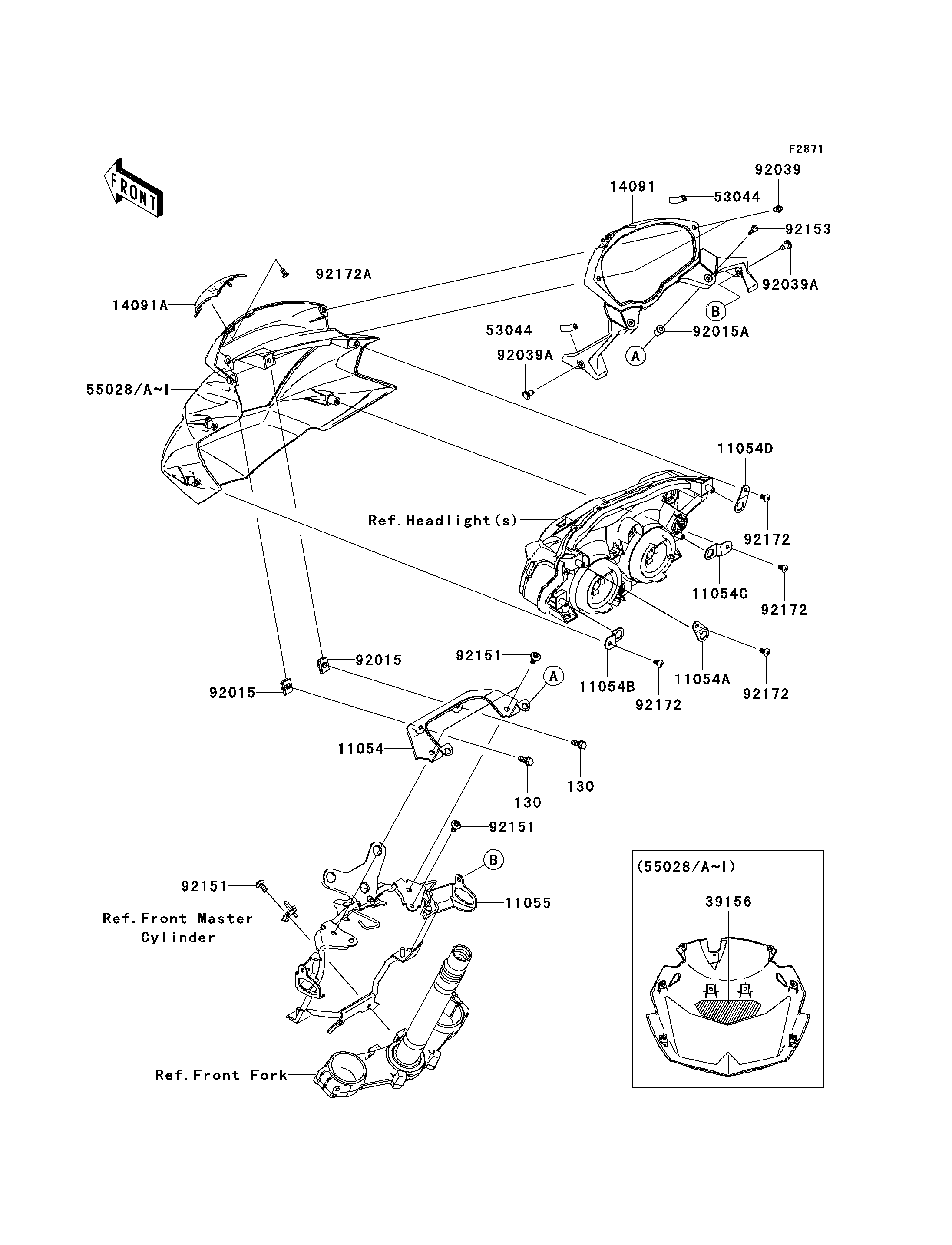

2010 Z750 (European) - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130
11054
11054A
11054B
11054C
11054D
11055
14091
14091A
39156
53044
53044
55028F
55028G
55028H
92015
92015
92015A
92039
92039A
92039A
92151
92151
92151
92153
92172
92172
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130CA0618 2
BRACKET 11054 11054-0936 1
BRACKET,HEAD LAMP,UPP,LH 11054A 11054-0937 1
BRACKET,HEAD LAMP,LWR,LH 11054B 11054-0938 1
BRACKET,HEAD LAMP,LWR,RH 11054C 11054-0939 1
BRACKET,HEAD LAMP,UPP,RH 11054D 11054-1185 1
BRACKET,METER 11055 11055-0076 1
COVER,METER 14091 14091-0686 1
COVER,UPP COWLING 14091A 14091-0725 1
PAD,UPP COWLING 39156 39156-0338 1
TRIM,L=40 53044 53044-0012 2
COWLING,UPP,P.S.WHITE 55028F 55028-0147-25Y 1
COWLING,UPP,C.S.ORANGE 55028G 55028-0147-28G 1
COWLING,UPP,M.S.BLACK 55028H 55028-0147-660 1
NUT,6MM 92015 92015-1602 2
NUT,WELL,5MM 92015A 92015-1757 2
RIVET 92039 92039-0023 2
RIVET 92039A 92039-1286 2
BOLT,SOCKET,6X14 92151 92151-1654 6
BOLT,SOCKET,5X18 92153 92153-0370 2
SCREW,TAPPING,5X14 92172 92172-0006 4
SCREW,TAPPING,5X10 92172A 92172-1061 1
