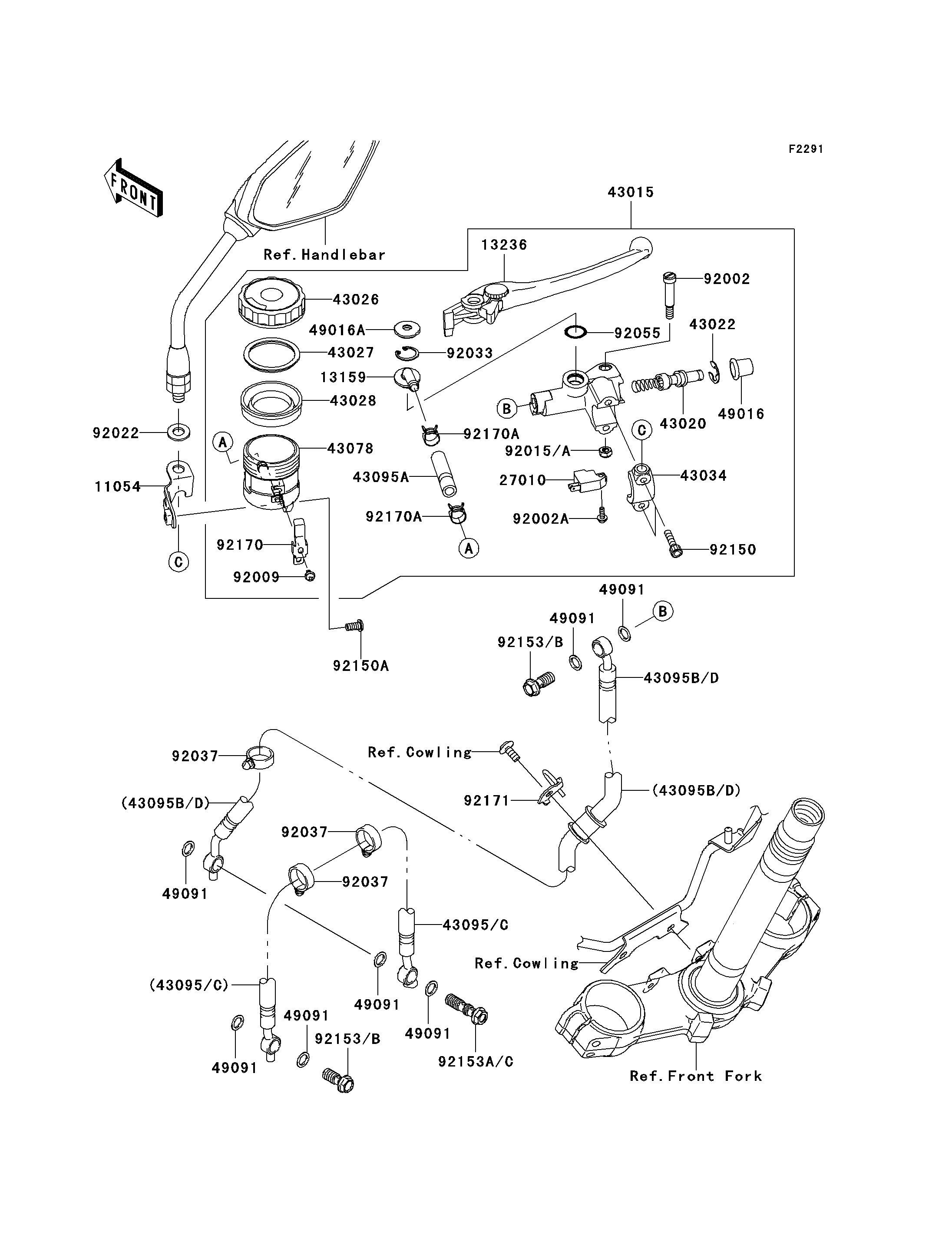

2010 Z750 (European) - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11054
13159
13236
27010
43015
43020
43022
43026
43027
43028
43034
43078
43095A
43095C
43095D
49016
49016A
49091
49091
49091
49091
49091
49091
49091
92002
92002A
92009
92015A
92022
92033
92037
92037
92037
92055
92150
92150A
92153
92153
92153A
92170
92170A
92170A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK,FR 11054 11054-1909 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0140 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0105 1
PISTON-COMP-BRAKE 43020 43020-0008 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1163 1
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR MASTER CYLINDER 43095A 43095-0366 1
HOSE-BRAKE,FR,485MM 43095C 43095-0537 1
HOSE-BRAKE,FR,776MM 43095D 43095-0538 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
COVER-SEAL 49016A 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 7
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM 92015A 92015-1528 1
WASHER,10.2X20X1.5 92022 92022-3742 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,HOSE 92037 92037-1827 3
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT 92150 92150-1328 2
BOLT,SOCKET,6X14 92150A 92150-1836 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,OIL,L=37 92153A 92153-0628 1
CLAMP 92170 92170-1090 1
CLAMP,HOSE 92170A 92170-1091 2
CLAMP,BRAKE HOSE 92171 92171-1667 1
