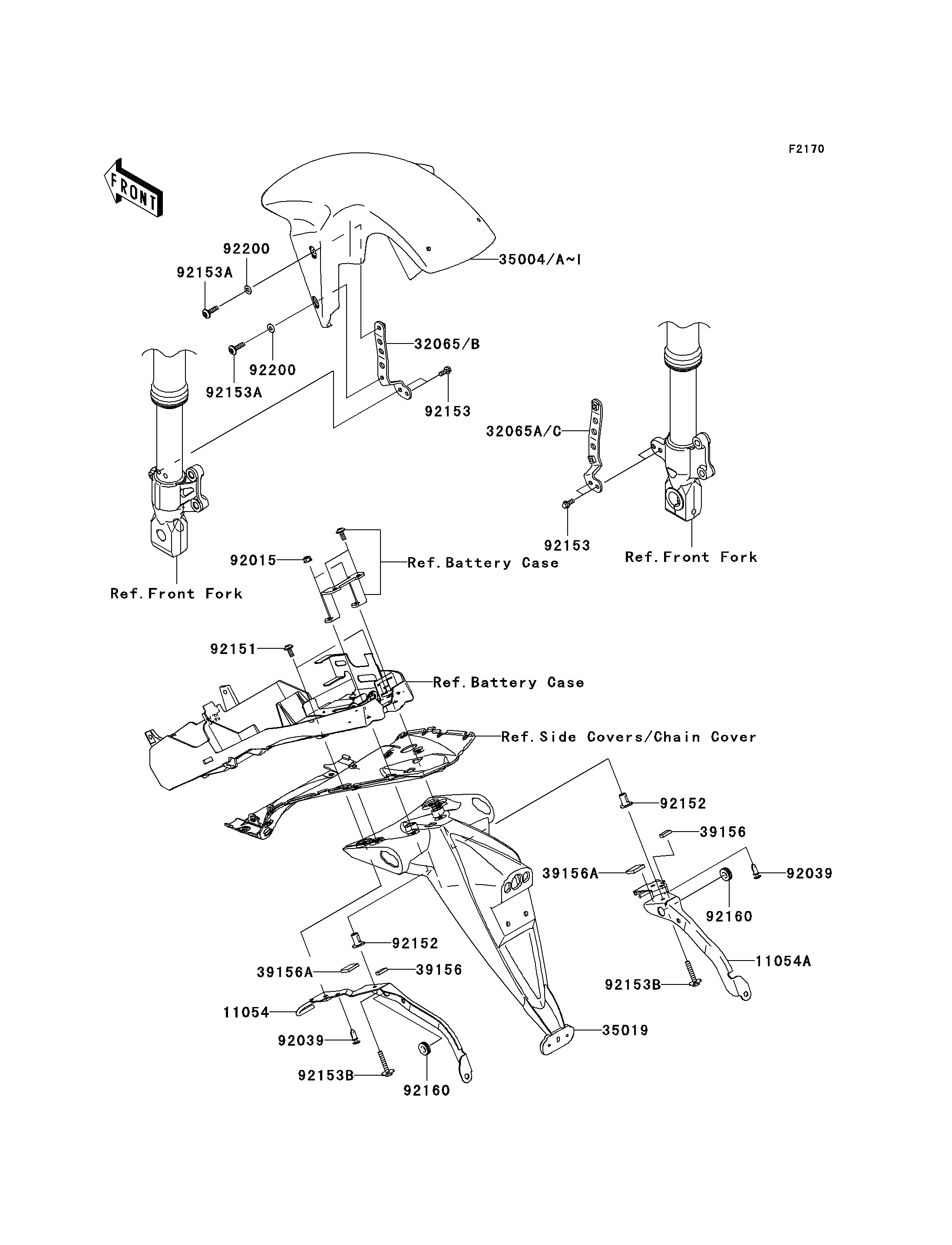

2010 Z750 (European) - Fenders

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
32065B
32065C
35004F
35004G
35004H
35019
39156
39156
39156A
39156A
92015
92039
92039
92151
92152
92152
92153
92153
92153A
92153A
92153B
92153B
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP,LH 11054 11054-1921 1
BRACKET,FLAP.RH 11054A 11054-1922 1
BRACKET-FENDER,LH 32065B 32065-0058 1
BRACKET-FENDER,RH 32065C 32065-0059 1
FENDER-FRONT,P.S.WHITE 35004F 35004-0024-25Y 1
FENDER-FRONT,C.S.ORANGE 35004G 35004-0024-28G 1
FENDER-FRONT,M.S.BLACK 35004H 35004-0024-660 1
FLAP 35019 35019-0047 1
PAD 39156 39156-0284 2
PAD 39156A 39156-0285 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
RIVET 92039 92039-1286 2
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR 92152 92152-0577 2
BOLT,FLANGED,6X14 92153 92153-0589 4
BOLT,SOCKET,6X23 92153A 92153-1267 4
BOLT,6X35 92153B 92153-1873 2
DAMPER 92160 92160-1278 2
WASHER,6.5X14X1 92200 92200-1388 4
