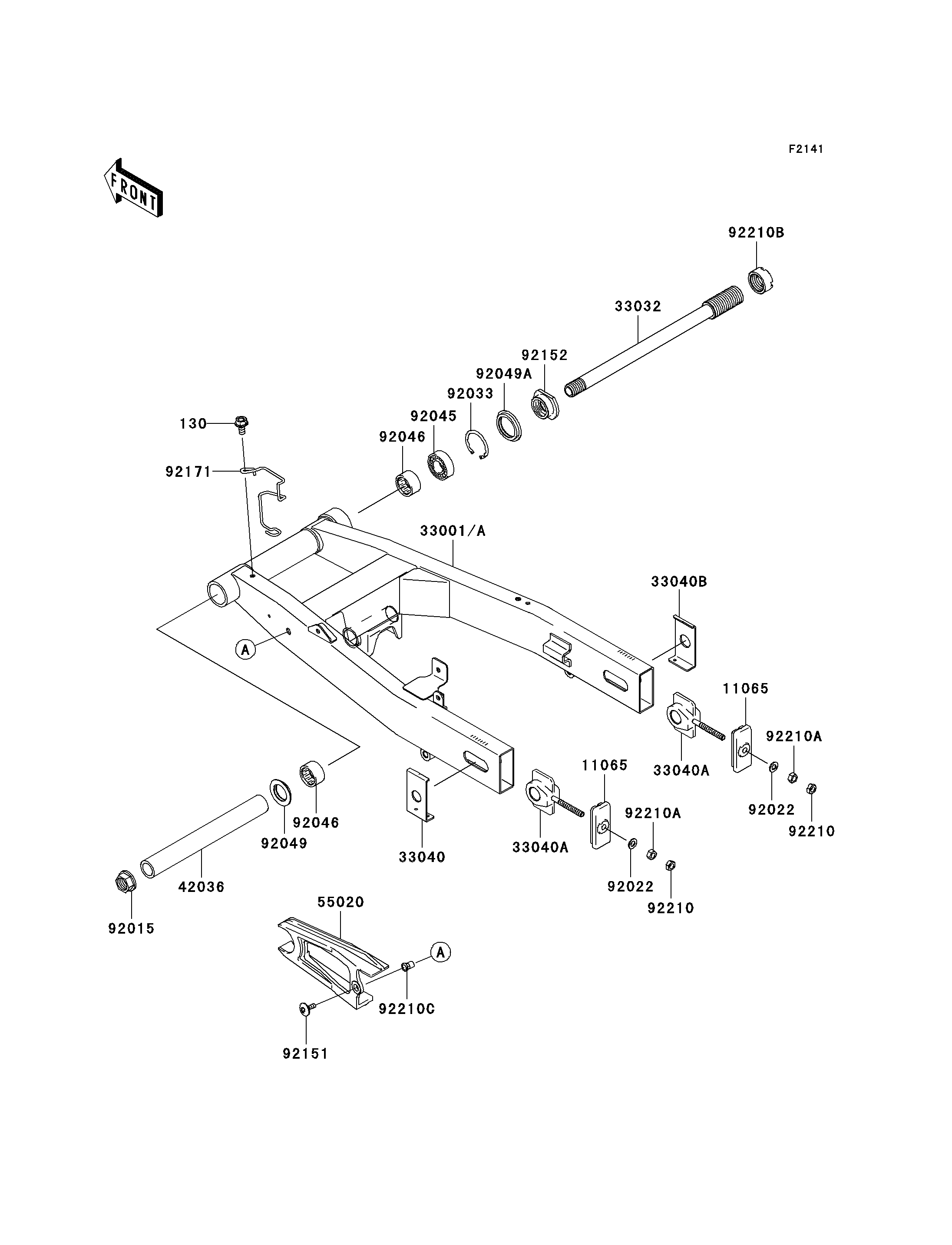

2010 Z750 (European) - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
11065
11065
33001A
33032
33040
33040A
33040A
33040B
42036
55020
92015
92022
92022
92033
92045
92046
92046
92049
92049A
92151
92152
92171
92210
92210
92210A
92210A
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 1
CAP,CHAIN ADJUSTER 11065 11065-0055 2
ARM-COMP-SWING,BLACK 33001A 33001-0103-18R 1
SHAFT-SWING ARM 33032 33032-0005 1
ADJUSTER-CHAIN,OUTER,LH 33040 33040-0009 1
ADJUSTER-CHAIN,INNER 33040A 33040-0012 2
ADJUSTER-CHAIN,OUTER,RH 33040B 33040-1143 1
SLEEVE,SWING ARM,L=237 42036 42036-1264 1
GUARD,CHAIN 55020 55020-0061 1
NUT,FLANGED,20MM 92015 92015-1724 1
WASHER,8.5X16X1.2 92022 92022-1582 2
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 2
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,MHA 35 42 5.7F 92049A 92049-1380 1
BOLT,SOCKET,6X18 92151 92151-1149 1
COLLAR,SWING ARM PIVOT,RH 92152 92152-0136 1
CLAMP 92171 92171-0141 1
NUT,8MM 92210 92210-0116 2
NUT,8MM 92210A 92210-0117 2
NUT,28X1.0 92210B 92210-1347 1
NUT,POP,6MM,L=15 92210C 92210-1397 1
