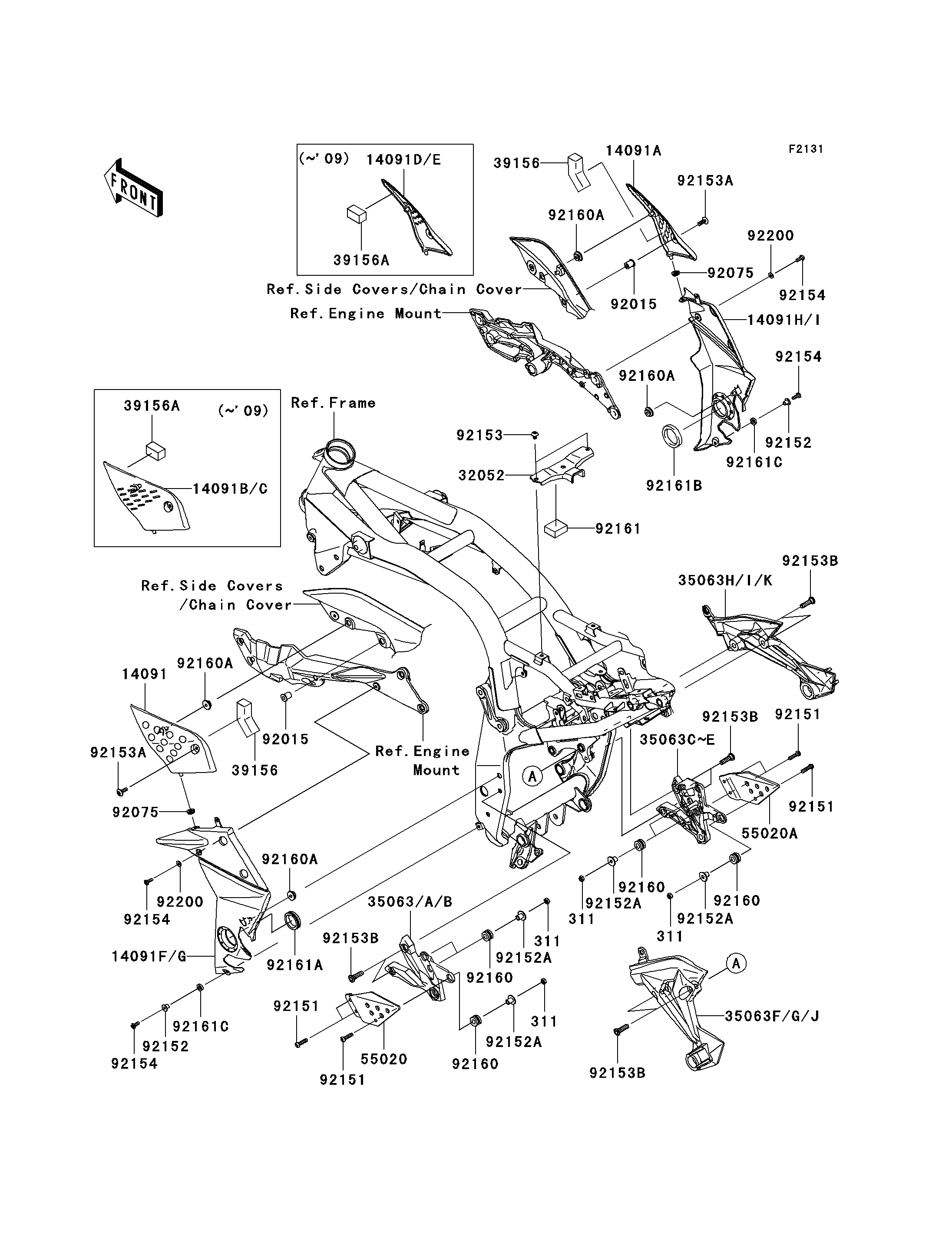

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14091
14091
14091A
14091A
14091F
14091F
14091H
14091H
32052
32052
35063
35063
35063C
35063C
35063J
35063J
35063K
35063K
39156
39156
39156
39156
55020
55020
55020A
55020A
92015
92015
92015
92015
92075
92075
92075
92075
92151
92151
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92154
92154
92154
92154
92154
92154
92154
92154
92160
92160
92160
92160
92160
92160
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
311
311
311
311
311
311
311
311
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,AIR CLEANER,LH,F.BLACK | 14091 | 14091-0602-6Z | 1 | ||
| COVER,AIR CLEANER,RH,F.BLACK | 14091A | 14091-0603-6Z | 1 | ||
| COVER,PIVOT,LH,BLACK | 14091F | 14091-0815-18T | 1 | ||
| COVER,PIVOT,RH,BLACK | 14091H | 14091-0816-18T | 1 | ||
| BRACKET-TANK | 32052 | 32052-0068 | 1 | ||
| STAY,FR,LH,BLACK | 35063 | 35063-0299-18R | 1 | ||
| STAY,FR,RH,BLACK | 35063C | 35063-0300-18R | 1 | ||
| STAY,RR,LH,BLACK | 35063J | 35063-0487-18R | 1 | ||
| STAY,RR,RH,BLACK | 35063K | 35063-0488-18R | 1 | ||
| PAD | 39156 | 39156-0289 | 2 | ||
| GUARD,FRONT STEP STAY,LH | 55020 | 55020-0237 | 1 | ||
| GUARD,FRONT STEP STAY,RH | 55020A | 55020-0238 | 1 | ||
| NUT | 92015 | 92015-1700 | 2 | ||
| DAMPER | 92075 | 92075-1011 | 2 | ||
| BOLT,SOCKET,6X25 | 92151 | 92151-1924 | 6 | ||
| COLLAR | 92152 | 92152-0600 | 2 | ||
| COLLAR | 92152A | 92152-1074 | 6 | ||
| BOLT,SOCKET,6X10 | 92153 | 92153-0410 | 2 | ||
| BOLT,6X18 | 92153A | 92153-0816 | 2 | ||
| BOLT,SOCKET,8X30 | 92153B | 92153-1624 | 8 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 4 | ||
| DAMPER | 92160 | 92160-1167 | 6 | ||
| DAMPER | 92160A | 92160-1613 | 4 | ||
| NUT-HEX,6MM | 311 | 311AA0600 | 6 | ||
| DAMPER | 92161 | 92161-0063 | 1 | ||
| DAMPER | 92161A | 92161-0147 | 1 | ||
| DAMPER | 92161B | 92161-0148 | 1 | ||
| DAMPER | 92161C | 92161-0533 | 2 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 2 |
